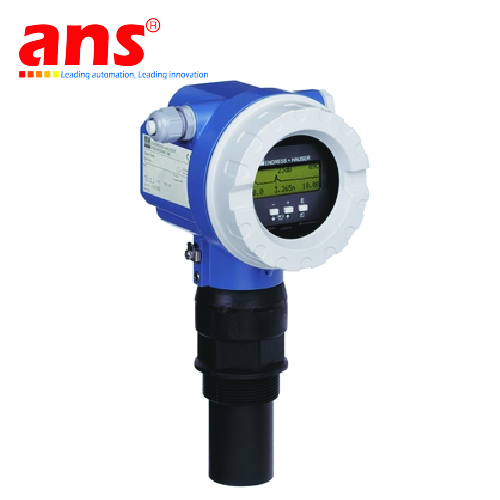

Ultrasonic measurement Time-of-Flight Prosonic FMU41 E+H Vietnam
Price: Contact
Brand: E+H
Category: Transmitter
Supplier: ansvietnam
Origin: Switzerland
0911472255Ultrasonic measurement Time-of-Flight Prosonic FMU41 E+H Vietnam
Field of application
The Prosonic FMU41 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Two-wire or four wire instrument for continuous non-contact level and flow measurement.
- Process connection: Thread
- Temperature: -40 to +80°C (-40 to +176°F)
- Pressure: +0.7 to +3bar (+10 to +44psi)
- Maximum measuring distance: Liquids 8m (26ft), Solids 3.5m (11ft)
- Blocking distance: Liquids and Solids 0.35m (1.15ft)
- International explosion protection certificates
Benefits
- Reliable non-contact measurement
- Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable
- Envelope curves on the on-site display for simple diagnosis
- Hermetically sealed and potted sensor
- Chemically resistant sensor out of PVDF
- Calibration without filling or discharging
- Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
