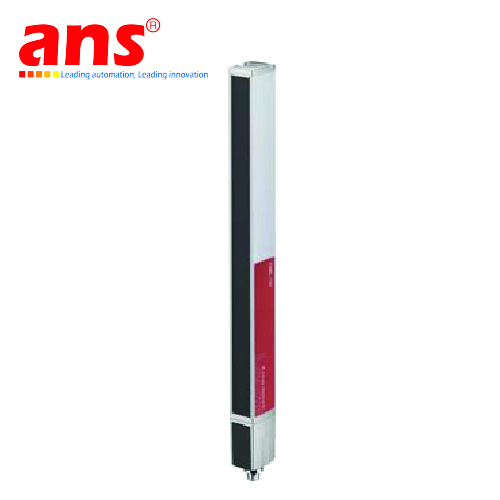

Light curtain transmitter CML720i-T10-1760.A-M12 Leuze Vietnam





The Leuze CML720i‑T10‑1760.A‑M12 is a transmitter unit designed for the CML720i series light curtain system. This device delivers reliable performance in object detection, positioning, and industrial monitoring where high-resolution light curtains are essential.

🔍 Key Features

  • Model: CML720i‑T10‑1760.A‑M12

  • Type: Transmitter (Tx) – part of a multi-beam light curtain system

  • Detection height: 1,760 mm

  • Beam spacing: 10 mm – enabling precise object detection

  • Connection: M12, 8-pin connector

  • Mounting: Flexible installation via rotating or fixed brackets

  • Part number: 50119415

✅ Benefits

  • High-resolution sensing: 10 mm beam spacing offers accurate detection for small or narrow objects.

  • Wide coverage: 1.76 m detection area supports large workspaces or conveyors.

  • Fast and easy integration: Standard M12 connection and flexible mounting options allow quick installation in various orientations.

  • Industrial-grade reliability: Engineered by Leuze, a trusted German manufacturer known for sensor and automation technology.

  • Ideal for:

    • Conveyor belt monitoring

    • Robotic pick-and-place systems

    • Profile measurement and product alignment

    • Object height or width verification

1

100%  Germany Origin

Leuze Vietnam

Code : CML720i-T10-1760.A-M12
Light curtain transmitter, Operating range: 0.3...7m, Measurement field length:
1760mm, 176beams, 10mm beam spacing, LED, Infrared, min. object diameter:
20mm, 18-30VDC, M12 5pin connector, LED display, -30...60°C, IP65, Contains: 2x
BT-NC sliding block

2

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/PN-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, PROFINET, axial connectors, -30 ... 60 °C, IP65,IO-Link

3

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/D3-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, RS 485 Modbus, axial connectors, -30 ... 60 °C, IP65, IO-Link

4

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/CV-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, Analog output, axial connectors, -30 ... 60 °C, IP65,IO-Link
