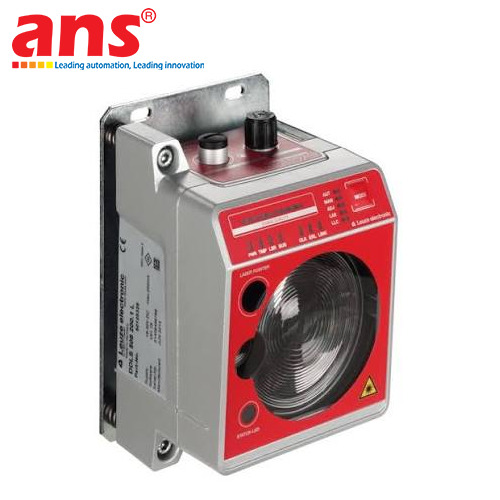

The Leuze DDLS 508 200.4 L Optical Data Transmission Transceiver (Order Code: 50132930) is part of the premier DDLS 500 generation engineered by Leuze electronic (Germany). Designed to establish contact-free, wear-free wireless communication over extensive industrial distances, this system acts as a high-speed "virtual fiber-optic link." It completely eliminates the mechanical wear, costly downtime, and complex cable-drag chains (festoon/reeling cables) typically associated with moving machinery.

Operating via an eye-safe infrared laser light source with a 1° beam opening angle on transmission frequency F4, the unit maintains reliable bidirectional communication across distances from 100 mm up to 200,000 mm (0.1 m to 200 m). It delivers an uncompromised real-time data throughput of 100 Mbit/s. Featuring a transparent Ethernet architecture, it natively supports demanding industrial network protocols such as PROFINET (RT, IRT, Conformance Class B), PROFIsafe over PROFINET, EtherNet/IP, CIP Safety, and TCP/IP/UDP without protocol latency. The optical design is fully immune to ambient industrial lighting and reflective surfaces, and allows adjacent parallel light axes to operate side-by-side without optical cross-talk.

The defining highlight of the "L" model is its integrated laser alignment aid. This embedded alignment laser allows a single commissioning technician to rapidly and accurately aim the optical axis across long distances within minutes, drastically reducing installation labor and commissioning costs. The front interface features a dynamic multi-segment LED bar graph that displays real-time received signal strength, enabling proactive diagnostics against optical misalignment or front-lens contamination before any communication drop occurs.

Constructed for severe factory environments, the DDLS 508 200.4 L is enclosed in a rugged, die-cast metal housing weighing 1,422 g and certified to IP65 environmental ingress protection. It withstands operational temperatures from -5°C to +50°C and meets stringent EN 60068 standards for mechanical shock and vibration resistance. Equipped with standard industrial M12 metal connectors (5-pin A-coded for power; 4-pin D-coded for network bus), it is the industry standard communication bridge for automated high-bay warehouses (AS/RS), harbor container cranes, overhead monorail systems (EMS), and automotive manufacturing plants.

• Manufacturer: Leuze (Leuze electronic GmbH + Co. KG)
• Country of Origin: Germany (100% Germany Origin)
• Product Series: Series DDLS 500 (Optical data transmission)
• Model Designation: DDLS 508 200.4 L
• Order Code (Part Number): 50132930
• Device Type: High-speed industrial optical data transceiver
• Working Distance Range: 100 mm ... 200,000 mm (0.1 m to 200 m)
• Light Source: Infrared laser diode
• Transmission Frequency: Frequency F4
• Beam Opening Angle: 1°
• Integrated Specialized Features:
  - Integrated laser alignment aid (L-model designation) for fast single-person optical alignment
  - Optical filtering insensitive to reflective surfaces and ambient light
  - Capable of close parallel light-axis operation without cross-talk
• Data Transmission Throughput: 100 Mbit/s real-time communication
• Network Architecture: Transparent Ethernet transmission
• Supported Communication Protocols: PROFINET (RT, IRT, Conformance Class B), PROFIsafe over PROFINET, EtherNet/IP, CIP Safety, TCP/IP, UDP
• Digital Switching I/O: 1 digital switching input, 1 digital switching output
• Electrical Connections: Rugged industrial M12 metal connectors:
  - Connection 1 (POWER): M12 connector, Male, 5-pin, A-coded
  - Connection 2 (BUS): M12 connector, Female, 4-pin, D-coded
• Operating Supply Voltage (UB): 18 ... 30 V DC
• Diagnostics & Status Displays: Signal strength LED bar graph and multi-color status LEDs
• Housing Material: Heavy-duty metal chassis
• Physical Dimensions (W x H x L): 100 mm x 156 mm x 99.5 mm
• Net Weight: 1,422 g
• Environmental Protection Class: IP65 (EN 60529 certified dust-tight and water-jet resistant)
• Temperature Range: Operating: -5°C to +50°C; Storage: -35°C to +70°C
• EMC & Environmental Certifications: EN 61000-6-2, EN 61000-6-4, EN 60068-2-6 (vibration), EN 60068-2-27 (shock), c UL US listed
• Target Applications & Industries:
  - Automated Storage & Retrieval Systems (AS/RS): Continuous wireless PROFINET/Ethernet link between moving stacker crane carriages and fixed PLC master cabinets across 200m aisles.
  - Port & Harbor Cranes: Reliable telemetry and control communication on STS container cranes, gantry hoists, and ship loaders without trailing cables.
  - Automotive Manufacturing: Continuous process and safety communication on overhead electric monorail systems (EMS) and transfer shuttles.
  - Steel Mills & Heavy Metallurgy: Robust wireless networking for transfer ladle cars and heavy gantry cranes operating in severe hot industrial zones.
