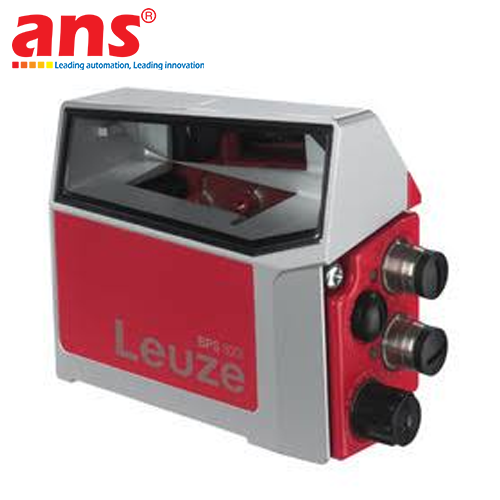

The Leuze BPS 348i SM 100 D Bar Code Positioning System (Part Number: 50124982) belongs to the flagship BPS 300i generation developed by Leuze electronic (Germany). As a premier industrial optical solution, it is engineered to deliver highly accurate, contactless, and absolute position measurement along linear and curved trajectories for automated warehouse stacker cranes, overhead conveyors, and mobile robot platforms.

Operating via a red laser light source (Laser Class 1, eye-safe conforming to IEC 60825-1:2014), the system features a lateral light beam exit (SM configuration) designed to continuously scan industrial barcode tape fixed along the mechanical travel axis. With an expansive working depth of field from 50 mm to 170 mm and an extensive measurement range spanning from 0 up to 10,000,000 mm (10 km continuous travel), it provides uninterrupted absolute positioning without mechanical wear. The unit boasts an ultra-fine reproducibility of 0.05 mm (1 sigma) and a 2 ms rapid measurement output cycle, ensuring that position feedback remains strictly real-time and error-free even when vehicles operate at extreme speeds up to 10 m/s.

Constructed for harsh factory environments, the BPS 348i SM 100 D is housed in a rugged die-cast metal enclosure with a scratch-resistant glass optical window and rated to IP65 ingress protection. The instrument offers industrial reliability with an outstanding Mean Time to Failure (MTTF) of 83 years. The "D" model designation indicates an integrated monochromatic graphic display (128 x 32 pixels) paired with diagnostic LEDs, enabling commissioning technicians to monitor real-time millimeter coordinates, evaluate barcode reading quality, and calibrate parameters directly on-site without requiring external programming equipment.

For seamless network integration, the BPS 348i integrates a high-performance PROFINET RT process interface with embedded dual-port Ethernet switch capability, enabling easy daisy-chain topology directly to industrial PLCs. A dedicated USB port is also available for rapid offline service and configuration via GSDML modules. It is the definitive positioning standard for automated high-bay warehouses (AS/RS), automotive body-in-white transfer lines, overhead electric monorails (EMS), and smart factory autonomous mobile robots (AGVs/AMRs).

• Manufacturer: Leuze (Leuze electronic GmbH + Co. KG)
• Country of Origin: Germany (100% Germany Origin)
• Product Series: Series BPS 300i (Bar Code Positioning Systems)
• Model Designation: BPS 348i SM 100 D
• Order Code (Part Number): 50124982
• Measurement Principle: Absolute optical positioning via barcode tape scanning
• Optical Configuration: Lateral light beam exit (SM designation)
• Light Source: Continuous red laser diode
• Laser Safety Rating: Laser Class 1 conforming to IEC/EN 60825-1:2014 (eye-safe)
• Depth of Field (Working Range): 50 mm to 170 mm
• Total Measurement Range: 0 to 10,000,000 mm (0 to 10,000 meters / 10 km)
• Measurement Reproducibility (1 Sigma): 0.05 mm
• Measurement Output Cycle: 2 ms
• Maximum Object Traverse Velocity: Up to 10 m/s
• Display & Diagnostics: Monochromatic graphic display (128 x 32 pixels) with status LEDs (D suffix)
• Industrial Network Interfaces:
  - Process Interface: PROFINET RT (Integrated dual-port switch, configuration via GSDML modules)
  - Service Interface: USB (Configuration and diagnostic interface)
• Digital I/O: 2 selectable digital input/output channels (Transistor PNP)
• Supply Voltage Range (UB): 18 ... 30 V DC
• Maximum Power Consumption: 3.7 W
• Housing Material: Heavy-duty metal chassis with glass lens cover
• Mechanical Mounting: Dovetail grooves, rear fastening via optional mounting brackets
• Physical Dimensions (W x H x L): 100 mm x 108.7 mm x 48.3 mm
• Net Weight: 580 g
• Environmental Protection Class: IP65 (EN 60529 certified), Safety Protection Class III
• Operating Temperature Range: -5°C to +50°C (Storage: -35°C to +70°C)
• Ambient Humidity: 90% relative humidity (non-condensing)
• Reliability (MTTF): 83 years
• International Certifications: c UL US, CE compliant, IEC 60068 shock/vibration resistant
• Target Applications & Industries:
  - Intralogistics & Automated Warehousing: High-accuracy horizontal and vertical coordinate positioning of stacker cranes in AS/RS systems.
  - Automotive Assembly Plants: Precise station tracking for skillet conveyors, transfer carriages, and overhead electric monorail systems (EMS).
  - Autonomous Mobile Robotics: Continuous path navigation and stop-point verification for automated guided vehicles (AGV/AMR).
  - High-Speed Conveying & Packaging: Accurate synchronization and sorting tracking across multi-lane conveyor distribution hubs.
