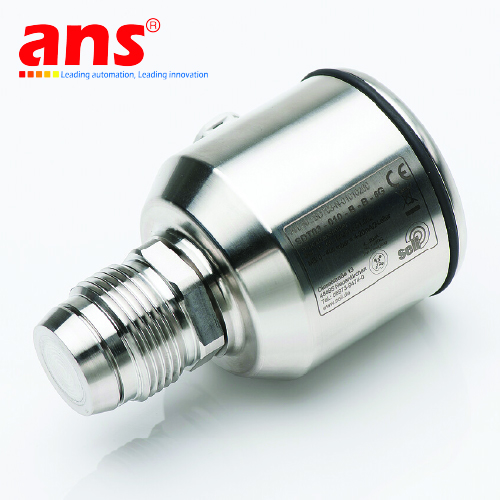

Pressure transmitters SDT03-N-17010260 Seli Vietnam

Features

• High accuracy
• Digital input for zero point adjustment
• Nominal pressure ranges up to 40 bar
• Relative Pressure
• Integrated control + indicator display optional
• Freely adjustable as tank level indicator & linearisation
• up to 30 support points (via free software)
• Configuration via display & possibility for
• software- supported visualisation and configuration
• Very quick compensation of temperature jump
• Wetting parts made of high-grade steel 1.4435
• Housing made of high-grade steel 1.4404
• Pressure screw for free positioning
• Individual measuring range adjustment
• Smallest measuring range 100 mbar
• Turndown 4:1
• Fourfold overload
• Galvanically isolated electronics
• Insulation voltage: 300V
• Totally front-flush membrane
• FDA, EHEDG-conformal

Technical specifications

• Accuracy according to IEC 60770: 0,1 % of adjusted measuring value
• Long-term stable
• Short-circuit-proof + reverse voltage protected
• Functional ranges (temperature):
• Medium to be measured (permanent):-20 °C to 110 °C
• Medium to be measured max. (1/2 h)  up to 140 °C
• High-Temperature-Version permanent up to 180 °C
• Protection class up to IP 69 K (execution-dependently)
• Customized remarks:
• special measuring ranges
• variable electric and mechanical connections
• further designs upon request
