Safety light curtain transmitter MLC500T30-1350 Leuze Vietnam

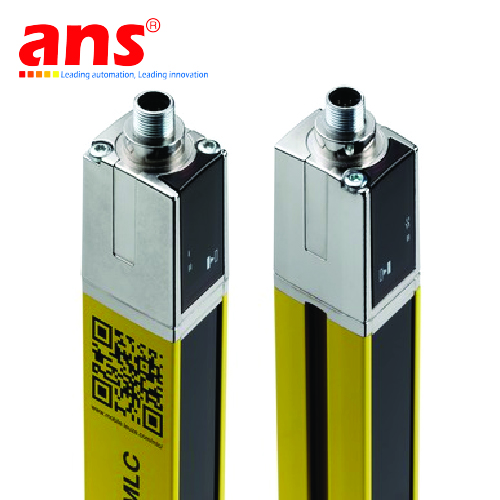

Leuze MLC500T30-1350 – High-Performance Safety Light Curtain Transmitter (Type 4, 30 mm Resolution)

The Leuze MLC500T30-1350 is a robust safety light curtain transmitter designed for hand protection in industrial machinery. Paired with compatible receivers, it monitors the protective field height of 1,350 mm and provides type 4 safety per IEC/EN 61496. With features like range reduction, channel switching, and status LED display, it’s engineered to safeguard operators while ensuring high system availability.

🔧 Key Features & Benefits

• Field height / resolution: 1,350 mm protective field, 30 mm resolution (hand protection)

• Safety performance: Meets Type 4 standard per IEC/EN 61496

• Range / operating distance: Typically designed for 0–6 m installation spacing (transmitter to receiver)

• Supply & protection: 24 V DC supply (−20 % / +20 %), overvoltage protection, short-circuit protected

• Control features: Range reduction input, channel changeover, start/restart interlock (RES), contactor monitoring (EDM) built-in

• Robust housing & warning aids: Metal housing, LED indicators, 7-segment display, and selectable transmission channels to avoid interference

• Certifications & reliability: SIL 3 per IEC 61508, mission time TM = 20 years, IP65 ingress protection

✅ Advantages in Your System

• Enhanced operator safety: Prevents accidental contact with dangerous zones by reliably detecting intrusion in the protected area.

• Reliable in industrial environments: Durable construction and protective features make it suitable for manufacturing, packaging, and automation.

• Easy integration: Standard transmitter form lets you pair with compatible receivers (MLC 520/530) and existing safety relays.

• Reduced interference & flexibility: Range reduction and channel switching reduce crosstalk and allow flexible positioning.

• Global compliance: Certifications and high safety class make it compliant with international safety regulations.
