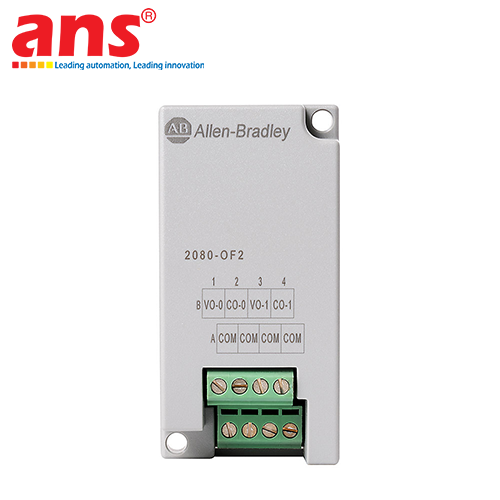

Allen-Bradley Micro800 2080-OF2

Introduction: The Allen-Bradley 2080-OF2 Analog Output Plug-In Module is a highly efficient and space-saving hardware enhancement component engineered and manufactured 100% at Rockwell Automation's advanced production facility in Singapore. Belonging to the specialized family of front-loading accessories tailored exclusively for the compact Micro800 programmable logic controller platform (compatible with Micro820, Micro830, Micro850, and Micro870 CPUs), this module allows control engineers to seamlessly expand system scaling capabilities without purchasing bulky or expensive chassis expansion hardware.

The defining operational benefit of the 2080-OF2 variant is its sleek front plug-in architecture. The module slides directly into the dedicated slots built onto the front face of the host controller. By terminating field wires right on the controller head, it eliminates the need for side-loading expansion racks that consume valuable horizontal DIN-rail space. This layout helps preserve the original physical footprint of the PLC array—a crucial factor when building compact machine control enclosures. Functionally, the module introduces 2 analog output channels driven by a clean 12-bit digital-to-analog conversion (DAC) resolution engine. It natively supports standard industrial signal scales, including Voltage (0 to 10V) and Current loops (0 to 20 mA), delivering deterministic control signals to fine-tune field speed governors or modulating valve positioners.

Key Features & Technical Specifications:

Manufacturer: Allen-Bradley / Rockwell Automation
Product Series: Micro800 Controller Hardware Plug-In Accessories Family
Model Code: 2080-OF2
Device Type: Analog Voltage / Current Output System Plug-In Module
Channels Capacity Layout: 2 non-isolated analog output channels.
Signal Range Compatibility: * Voltage Scaling: 0 to 10V.
- Current Loop: 0 to 20 mA.
Digital Conversion Resolution: 12-bit output resolution for smooth, low-step command signals.
Mechanical Integration: Space-saving slide-in form factor that inserts directly into front-facing slot matrices on standard Micro800 controller bodies, anchored securely via integrated mounting screws.
Termination Interface: Built-in high-durability spring clamp terminal block for rapid, vibration-resistant field wire landing.
Country of Origin: 100% Made in Singapore.
