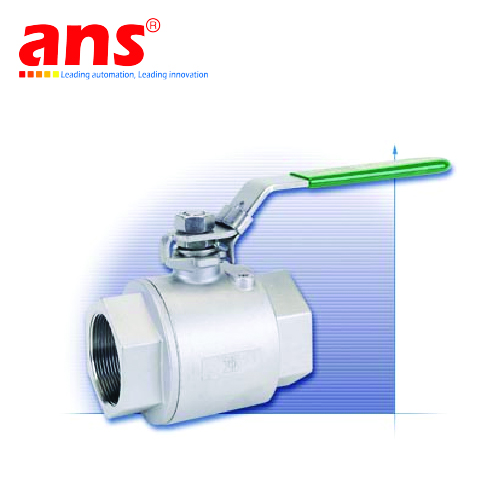

Ball Valve 201F Inline Industries Vietnam

Features and Benefits:

2-Piece Design

Full Port

• Full port construction improves flow characteristics for greater process efficiencies

Blow-Out-Proof Stem

• Stem is bottom loaded to prevent removal when valve is in service

Live-Loaded Stem Packing

• Provides constant load on the stem seal and extends service life

Locking Device

• Enables plant personnel to secure valve in open or closed position when manually operated

Corrosion Resistant

• Made of 316 stainless steel (A351 Gr. CF8M) for superior chemical resistance and longer service life

Investment Cast

• Improves dimensional control and reduces porosity

Operating / Test Conditions:

Temperature Range (RTFE): -20� to 420� F

Maximum Working Pressure (RTFE):

• 2000 PSI WOG (1/4"-1")
• 1500 PSI WOG (1 1/4"-2")
• 1000 PSI WOG (2 1/2"-3")

All valves are shell and seat tested to ANSI/ASME B16.34 and API 598
