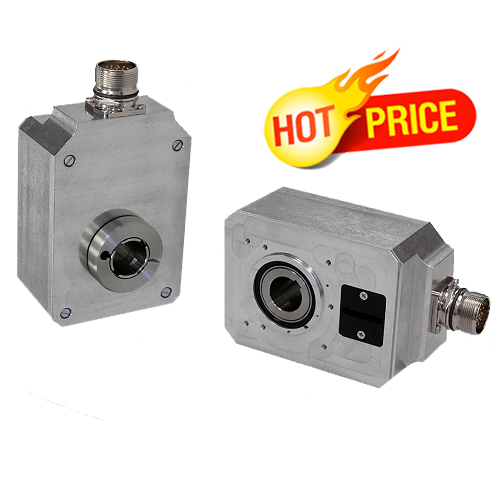

TR Electronic Vietnam,Bộ mã hóa QDH81M-00001 TR Electronic

Absolute Rotary Encoders​





Double detection (D)

Products QDH81 Detection Double detection (D) Single / multi (M) Multi (S) Single (2nd detection: Single) Supply 24 VDC (11..27) Steps per turn <= 8192 Number of turns <= 256000 Shaft diameters available 16, 20, 22, 24, 25 Connectors Connector radial, connection hood with cable glands Ambient temperature 0…+60 °C (option -20…+70 °C) Protection class IP54

Advanced data for product

Absolute-Encoder QDH81M - SSI / INK

Đặc trưng
_
Các giải pháp dành riêng cho khách hàng
_
Lập trình linh hoạt
_
Các giao diện khác có sẵn
_
Dòng sản phẩm mô-đun
_
Hệ thống quét dự phòng
_
Kết cấu chắc chắn

Dữ liệu nâng cao cho sản phẩm Bộ mã hóa tuyệt đối QDH81M - SSI / INK
Định mức điện áp
Giá trị cụ thể
24 VDC
Giới hạn giá trị, tối thiểu / tối đa
27/11 VDC
Dòng điện danh định, thường là
Giá trị cụ thể
80 mA
Tình trạng
dỡ hàng
Cung cấp
Cho ăn nhiều lần
hai
Thiết kế thiết bị
Loại hình
Nhiều lượt
Hệ thống quét dự phòng
vâng, gấp đôi
Tổng độ phân giải
<= 31 Bit
Số bước mỗi vòng quay
<= 8192
Số lần xoay vòng
<= 256000
Công suất đầu ra
<= 30 Bit
Sự chính xác
± 0,4 ° Hệ thống 1/2
SSI - Giao diện
Đầu vào SSI-Clock
Optocoupler
SSI-Dữ liệu đầu ra
RS-422, 2 dây
SSI-Tần số đồng hồ
80… 1000 kHz
Thời gian SSI-Mono, thường là
20 µs
Tăng dần - Giao diện
Thiết bị
Giao diện tiêu chuẩn
Dạng tín hiệu
Sóng vuông
Dạng tín hiệu, thay thế
SIN / COS
Tín hiệu tăng dần, hình vuông
K1 ± K2 ± K0 ±
Tín hiệu tăng dần, SIN / COS
SIN ± COS ±, 1 Vss
Xung kích, sóng vuông
4096 □
Xung, SIN / COS
4096 ∼
Trình điều khiển đầu ra, TTL
RS-422, 5 VDC
Thời gian chu kỳ
250 µs
Tham số / Chức năng, có thể thay đổi
Nghị quyết

Mã đầu ra

Định dạng đầu ra

Số lượng bit dữ liệu

Tham số đặt trước

Đếm hướng
Loại tham số hóa
có thể lập trình
Lập trình - Công cụ
TR-Soft: TRWinProg
Đầu vào bên ngoài
F / R
Đếm hướng
Đặt trước
điều chỉnh điện tử
Mức độ logic
"0“ <+ 2V, "1“ = Nguồn cung cấp
Tốc độ tối đa, về mặt cơ học
<= 3000 1 / phút
Tải trọng trục, dọc trục / xuyên tâm
Khối lượng riêng
Mang thời gian sống
> = 3,9E + 10 vòng quay
Vòng bi thời gian sống - Thông số
Tốc độ, vận tốc
3000 1 / phút
Nhiệt độ hoạt động
60 ° C
Loại trục
Đường kính trục [mm]
14
Đường kính trục [mm]
16
Đường kính trục [mm]
20
Đường kính trục [mm]
22
Đường kính trục [mm]
25
Gia tốc góc
<= 10E + 4 rad / s²
Mômen quán tính, điển hình là
57,2E-6 kg m²
Đại chúng, điển hình là
1,3 kg
Đầu ra song song tùy chọn
Đầu ra song song
8 đầu ra
Sản lượng hiện tại
50 mA mỗi đầu ra
bảo vệ ngắn mạch
Vâng
Trình điều khiển đầu ra, HTL
Đẩy-Kéo, 11… 27 VDC
