Beckhoff Vietnam, Bộ xử lý Intel® Core ™ i3-9100TE thế hệ thứ 9 C9900-C634 Beckhoff

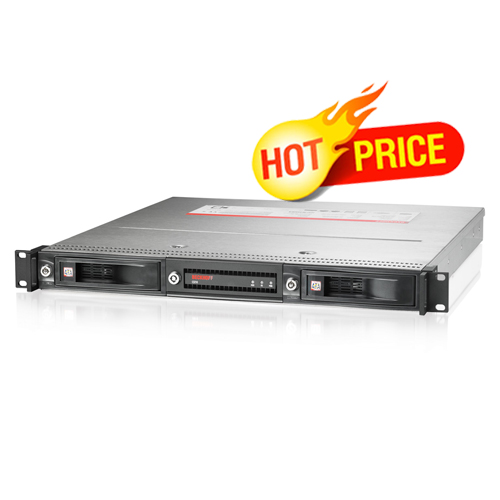

C5210-0040 | 19-inch slide-in Industrial PC

Dòng máy tính công nghiệp C5xxx được thiết kế để lắp đặt dạng trượt 19 inch. Chúng được trang bị các thành phần lớp hiệu suất tối đa và lý tưởng cho các ứng dụng chế tạo máy và kỹ thuật nhà máy, ví dụ như với phần mềm tự động hóa TwinCAT.

Thiết kế công nghiệp và danh mục đầu tư có thể mở rộng

Máy tính công nghiệp 19 inch trượt C5210 chỉ đo được một đơn vị chiều cao. Máy tính công nghiệp này có bộ xử lý Intel® Celeron® hoặc Core ™ i3 / i5 / i7 thế hệ mới nhất trên bo mạch chủ 3½ inch với bộ điều khiển RAID trên bo mạch và hai khung rời ổ cứng 3½ inch.

Sự kết hợp giữa hiệu suất và chức năng có khả năng công nghiệp với thiết kế cực kỳ phẳng làm cho C5210 đặc biệt phù hợp cho các ứng dụng tiết kiệm không gian. Chiều cao lắp đặt thấp có thể thực hiện được với bo mạch chủ Beckhoff 3 ½ inch. Bo mạch chủ được trang bị vô số giao diện trên bo mạch, chẳng hạn như hai cổng Gigabit Ethernet, một DVI và một cổng COM cũng như bốn cổng USB. C5210 có thể được mở rộng với hai mô-đun PCIe. Có thể tùy chọn lắp nhiều ổ DVD phía sau nắp trước. Đối với PC công nghiệp 19 inch, hệ điều hành Windows 10 IoT Enterprise được cung cấp và bộ xử lý Intel® Core ™ thứ 6 cũng như Windows 7 Professional, Windows 7 Ultimate hoặc Windows Embedded Standard 7.

Lợi thế cốt lõi: Máy tính Công nghiệp Beckhoff

Beckhoff là công ty tiên phong trong công nghệ tự động hóa dựa trên PC và đã phát triển và sản xuất phần cứng PC của riêng mình từ năm 1986. Những bí quyết công nghệ đã phát triển trong nhiều thập kỷ qua ngày nay được tích hợp vào tất cả các PC Công nghiệp của Beckhoff. Đặc điểm cơ bản của chúng là sử dụng các bộ phận và bộ vi xử lý hiện đại nhất thuộc loại hiệu suất cao nhất. Kết hợp với chiều sâu sản xuất nội bộ cao, bao gồm sản xuất bo mạch chủ độc quyền, tính khả dụng lâu dài của linh kiện, cấu hình cực kỳ linh hoạt và khả năng thích ứng dành riêng cho khách hàng, Beckhoff ngày nay thể hiện mình là một trong những nhà sản xuất PC công nghiệp hàng đầu thế giới.



Variants

Processor

C5210-0040

Intel® Celeron®, 2 cores (TC3: 50*) or
Intel® Pentium®, 2 cores (TC3: 50*) or
Intel® Core™ i3, 4 cores (TC3: 60*) or
Intel® Core™ i5, 6 cores (TC3: 70*) or
Intel® Core™ i7, 8 cores (TC3: 80*)
(8th/9th generation)

C5210-0030

Intel® Celeron®, 2 cores (TC2, TC3: 50*) or
Intel® Pentium®, 2 cores (TC2, TC3: 50*) or
Intel® Core™ i3, 2 cores (TC2, TC3: 60*) or
Intel® Core™ i5, 4 cores (TC2, TC3: 70*) or
Intel® Core™ i7, 4 cores (TC2, TC3: 80*)
(6th generation)
or
Intel® Core™ i3, 2 cores (TC3: 60*) or
Intel® Core™ i5, 4 cores (TC3: 70*) or
Intel® Core™ i7, 4 cores (TC3: 80*)
(7th generation)



Technical data

C5210-0040

Options

Device type

19-inch slide-in Industrial PC

Housing

stainless steel based housing, 1 high units, with lockable front flap

Front flap

lockable, includes 2 x USB 2.0, reset key and ATX key

DVD drive

Slots for hard disk/flash

2 removable frames for hard disks

removable frames for SSDs

Protection rating

IP20

Operating temperature

0…55 °C

Dimensions (W x H x D)

482.7 x 44 x 493.8 mm (19" x 1.7" x 19.44"), depth behind front 475 mm (18.7")

Processor

Intel® Celeron® G4900 3.1 GHz, 2 cores (TC3: 50)

up to Intel® Core™ i7-9700TE 1.8 GHz, 8 cores (TC3: 80)

Motherboard

3½-inch motherboard for 8th/9th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7

PCIe/PCI slots

2 PCIe module slots to plug-in Beckhoff PCIe modules or to led out interfaces of the motherboard ex factory

Memory

4 GB DDR4 RAM

up to 64 GB DDR4 RAM

Graphic adapter

integrated in the processor

Ethernet

2 x 100/1000BASE-T on-board

RAID

on-board SATA RAID 1 controller

Hard disks/flash

hard disk, 3½-inch, 1 TB

hard disk up to 4 TB, SSD, CFast

Disk drive

multi DVD

Interfaces

4 x USB 3.1, 1 x RS232 at the rear, 2 x USB 2.0 behind the front flap, 1 x DVI

Power supply

100…240 V AC

24 V DC, UPS

Operating system

Windows 10 IoT Enterprise, Windows Server 2019
