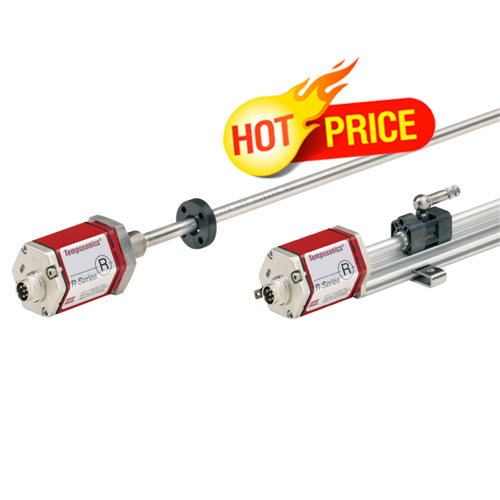

MTS Sensor Vietnam,Cảm biến RFC02720MD531P102 MTS Sensor

R Series RF





OUTPUT

STROKE LENGTH

RESOLUTION

MULTI-POSITION

Analog

100…20000 mm
(4…787 in.)

16 bit

Up to
2 Positions

SSI

100…20000 mm
(4…787 in.)

0.5 µm

-

Profibus

100…20000 mm
(4…787 in.)

1 µm

Up to
20 Positions

CANbus

100…20000 mm
(4…787 in.)

2 µm

Up to
20 Positions

DeviceNet

100…20000 mm
(4…787 in.)

2 µm

-

EtherCAT®

100…20000 mm
(4…787 in.)

1 µm

Up to
20 Positions

EtherNet/IP™

100…20000 mm
(4…787 in.)

1 µm

Up to
20 Positions

POWERLINK

100…20000 mm
(4…787 in.)

1 µm

Up to
4 Positions

PROFINET

100…20000 mm
(4…787 in.)

1 µm

Up to
19 Positions


Cảm biến vị trí hiệu suất vượt trội linh hoạt cho độ dài hành trình dài lên đến 20.000 mm
Thanh linh hoạt
Đo nhiều vị trí với tối đa 20 nam châm
Vận chuyển thuận tiện cho các chiều dài đo dài
Đèn LED cho trạng thái và chẩn đoán cảm biến
Đầu ra: analog, SSI, CANbus, Profibus, EtherCAT®, EtherNet / IP ™, PROFINET, POWERLINK

100% USA Origin

MTS Sensor/Temposonics

Replaced Code: RP5SA1200M02R101A100
 Temposonics®R-Series
 Details:
 RP5 -> Sensor Model -> Temposonics® R-Series V Profile
 S -> Housing Style -> Magnet slider, joint at top (part no. 252182) (RP)
 A -> Mechanical -> Standard
 1200 -> Stroke Length -> 1200 mm
 M -> Unit Of Measure -> Millimeters
 02 -> Analog Multi Magnet Quantity-> 2 Magnets
 R10 -> Connection -> PVC Cable (530032)
 1 -> System -> Standard
 A -> Output -> Current
 1 -> Function-> Position (1 or 2 magnets/outputs)
 0 -> Options -> Standard
 0 -> Output Range-> 0...10VDC or 4...20mA
 Note: RPS1200MR101A02 is obsoleted

100% USA Origin

MTS Sensor/Temposonics

Replaced Code: RP5SA0400M02R101A100
 Temposonics® R-Series
 Details:
 RP5 -> Sensor Model -> Temposonics® R-Series V Profile
 S -> Housing Style -> Magnet slider, joint at top (part no. 252182) (RP)
 A -> Mechanical -> Standard
 0400 -> Stroke Length -> 400 mm
 M -> Unit Of Measure -> Millimeters
 02 -> Analog Multi Magnet Quantity-> 2 Magnets
 R10 -> Connection -> PVC Cable (530032)
 1 -> System -> Standard
 A -> Output -> Current
 1 -> Function-> Position (1 or 2 magnets/outputs)
 0 -> Options -> Standard
 0 -> Output Range-> 0...10VDC or 4...20mA
 Note: RPS0400MR101A02 is obsoleted

100% USA Origin

MTS Sensor/Temposonics

Replaced Code: RH5MA0100M02R101A100
 Temposonics® R-Series
 Details:
 RH5 -> Sensor Model -> Temposonics® R-Series V Rod
 M -> Housing Style -> Threaded flange M18×1.5-6g (standard) (RH)
 A -> Mechanical -> Standard
 0100 -> Stroke Length -> 100 mm
 M -> Unit Of Measure -> Millimeters
 02 -> Analog Multi Magnet Quantity-> 2 Magnets
 R10 -> Connection -> PVC Cable (530032)
 1 -> System -> Standard
 A -> Output -> Current
 1 -> Function-> Position (1 or 2 magnets/outputs)
 0 -> Options -> Standard
 0 -> Output Range-> 0...10VDC or 4...20mA
 Note: RHM0100MR10AA02 is obsoleted

100% USA Origin

MTS Sensor/Temposonics

Replaced Code: RP5SA0500M02R101A100
 Temposonics® R-Series
 Details:
 RP5 -> Sensor Model -> Temposonics® R-Series V Profile
 S -> Housing Style -> Magnet slider, joint at top (part no. 252182) (RP)
 A -> Mechanical -> Standard
 0500 -> Stroke Length -> 500 mm
 M -> Unit Of Measure -> Millimeters
 02 -> Analog Multi Magnet Quantity-> 2 Magnets
 R10 -> Connection -> PVC Cable (530032)
 1 -> System -> Standard
 A -> Output -> Current
 1 -> Function-> Position (1 or 2 magnets/outputs)
 0 -> Options -> Standard
 0 -> Output Range-> 0...10VDC or 4...20mA
 Note: RPS0500MR101A02 is obsoleted
