E2S BExCP3ABGSLAN1A1RN

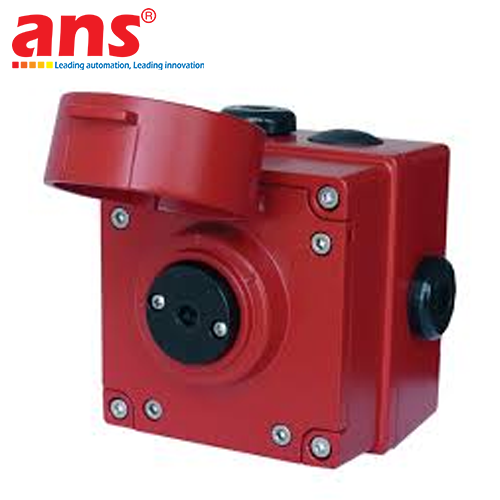

Introduction: The E2S BExCP3ABGSLAN1A1RN Explosion Proof Break Glass Manual Call Point is a high-end, heavy-duty safety initiation device manufactured 100% in the United Kingdom (UK) by E2S Warning Signals. Operating as a critical human-interface fail-safe anchor within demanding industrial spaces, this manual call point empowers field personnel to immediately trigger fire fighting systems or plant evacuation loops upon visual hazard identification. The outer housing is forged from premium marine-grade, copper-free LM6 aluminum casting finished with an anti-corrosion powder coat, keeping the internal switching electronics completely isolated from volatile atmospheric decay.

The comprehensive BExCP3ABGSLAN1A1RN configuration string translates into a highly specialized engineering specification blueprint built for global process safety infrastructure:

⚙️ TECHNICAL CONFIGURATION BREAKDOWN MATRIX:

BExCP3A-BG: High-pressure flameproof aluminum housing framework profiling a classic Break Glass manual interface.
S (Switch type): Equipped with a high-durability SPCO (Single Pole Change Over) electrical switch block.
L (Lift flap): Outfitted with a heavy-duty Stainless Steel Lift Flap assembly to shield the glass terminal from accidental physical impacts or dropped objects.
A (Entries): Engineered with 3 x M20 threaded conduit entries [Factory Default] to offer maximum flexibility for field loop distribution.
N (Stopping plug): Secured via high-grade Nylon technical sealing hardware plugs.
1 (Labels/Tags): Standard layout specification detailing no duty label and no equipment tags.
A (Product version): Pre-loaded with a supreme global safety certification suite: IECEx, ATEX, Ex EAC, INMETRO, PESO alongside an audited SIL2 functional safety rating.
1 (Product option): Configured with standard factory product options.
R (Enclosure colour): Finished in high-visibility international Red epoxy powder coat for immediate emergency location mapping.
N (Default suffix): Standard factory structural suffix placeholder (not currently utilized).

Technical Advisory: This component is a critical safety-instrumented device. Prior to on-site terminal landing or integration into live automation nodes, engineering crews are advised to recheck the product datasheet to verify absolute compatibility matching the voltage thresholds and switching current limits of the central monitoring panels.

Key Features & Technical Specifications:

Manufacturer: E2S Warning Signals (United Kingdom)
Product Series: BEx Manual Call Points Hazardous Area Architecture Portfolio
Model Designation: BExCP3ABGSLAN1A1RN
Device Type: Flameproof / Explosion Proof Break Glass Manual Call Point
Initiation Mechanics: Break Glass topology utilizing a safety-film-coated glass pane to prevent loose shrapnel scatter upon impact.
Switch Configuration: 1 x SPCO output contact loop (Flexible NO/NC logic configuration).
Structural Metallurgy: Marine-grade LM6 aluminum housing paired with a heavy-duty 316 stainless steel protective lift flap.
Environmental Ingress Hardening: Rated to IP66 standards, ensuring total barrier protection against dust infiltration and powerful high-pressure field washdown streams.
Country of Origin: 100% Made in the United Kingdom.
