E2S BEXS110DFDC024AB2M1R

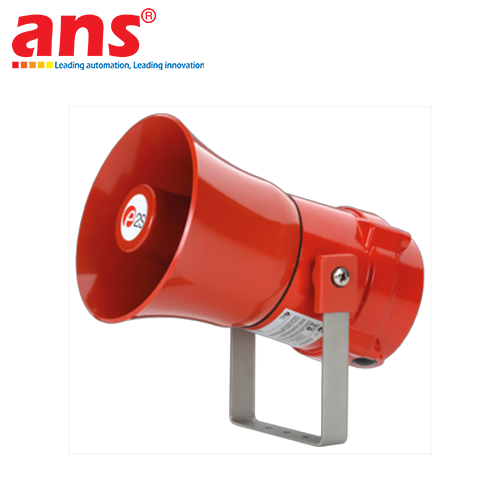

Introduction: The E2S BEXS110DFDC024AB2M1R Flameproof Alarm Horn Sounder is a premium critical-tier hazardous area audible signaling module engineered and manufactured 100% in the United Kingdom (UK) by E2S Warning Signals. Across heavy industrial sites and complex marine processing loops, absolute emergency notification uptime forms the operational cornerstone of factory safety. The E2S BEx infrastructure family is encased in high-grade, marine-grade, copper-free phosphated aluminum castings finished with a robust powder-coated defense shell, ensuring optimal resilience and immediate peak performance when critical system intervention is demanded.

The technical blueprint behind the BEXS110DFDC024AB2M1R specification string denotes a highly specialized build configuration tailored for punishing offshore platforms and global transport fleets:

⚙️ TECHNICAL HARDWARE CONFIGURATION MATRIX:

Operating Current Loop (Voltage): Low-voltage 24Vdc infrastructure optimization.
Cable Entry Mapping (Entries): Equipped with 2 x M20 threaded conduit entries for flexible dual-line daisy-chain field infrastructure deployment.
Terminal Sealing Layout (Stopping Plug): Forged from premium Brass to secure robust structural containment and pressure protection.
Mounting Architecture (Bracket/Guard): Fabricated completely using A4-grade 316 Stainless Steel, providing flawless defense against extreme maritime salt mist, constant spray, and localized chemical washdowns.
Certification Profile (Product Version): Certified to the rigorous European MED (Marine Equipment Directive) standard, authorizing live deployment on commercial vessels and deep-sea exploration skids.
Enclosure Aesthetics (Enclosure Colour): Coated in standard industrial high-visibility Red for seamless integration into safety, fire-fighting, and hazard detection grids.

The electronic driver engine within the unit generates a massive sound output threshold reaching up to 110 dB(A) at 1 meter. It comes pre-programmed with a repertoire of 45 independent international alarm tones selectable via internal DIP switches, coupled with the capability to orchestrate a 3-stage remote alarm progression. This multi-stage operational logic empowers a single sounder node to communicate separate escalation codes—such as gas detection, active fire breakout, or immediate grid evacuation commands—with absolute deterministic clarity.

Key Features & Technical Specifications:

Manufacturer: E2S Warning Signals (United Kingdom)
Product Series: BEx Flameproof Signaling Infrastructure Portfolio
Full Manufacturing Model Designation: BEXS110DFDC024AB2M1R
Short Code Designation: BExS110D 24Vdc
Device Type: Explosion-Proof / Flameproof Industrial Audible Alarm Horn Sounder
Rated Operational Voltage: 24V DC.
Maximum Acoustic Output Capability: 110 dB(A) @ 1m (High-penetration sound pressure to cut through severe process plant backdrop ambient noises).
Tone Management Capabilities: 45 distinct tones pre-loaded, accommodating up to 3 remotely switchable stages of system alarm logic.
Explosion-Proof Certification Arrays: Fully certified to global flameproof safety benchmarks (ATEX, IECEx, Ex d IIC).
Environmental Ingress Hardening: Rated to IP66/IP67 metrics, providing complete dust blockades and total functional immunity against high-pressure washdown streams or temporary marine submersion.
Country of Origin: 100% Made in the United Kingdom.
