EXAIR 110212 ALUMINUM SUPER AIR KNIFE KIT (12 INCH / 305 MM)

DEEP PRODUCT OVERVIEW & AERODYNAMIC SYSTEM INFRASTRUCTURE
The EXAIR 110212 (System Identification Cấu hình: Aluminum Super Air Knife Kit) is a premium industrial-grade compressed air blowoff instrument belonging to the elite Super Air Knife generation developed and manufactured 100% in the United States by the global aerodynamics pioneer EXAIR Corporation. This advanced device stands as the definitive technological solution for high-velocity liquid sheet removal, targeted surface cooling, and debris sweeping across high-volume automated conveyor networks, continuous bottling assembly tracks, food packaging lines, electronic PCB handling cells, and precision machine shops. The explicit "Kit" designation within the part number represents a complete, synchronized engineering package: the manufacturer delivers a turn-key solution combining the core aluminum air block with pre-matched auxiliary compressed air conditioning components. This turn-key layout empowers plant technicians to execute rapid on-site commissioning (Plug & Play setup) without sourcing external hardware fittings, ensuring internal air micro-slots remain fully shielded while maximizing the overarching energy efficiency of the facility's central compressor plant.

FARADAY-LEVEL FLUID DYNAMICS: THE COANDA EFFECT FOR EXTENDED AIR AMPLIFICATION
The aerodynamic core driving the EXAIR 110212 implements the technical surface fluid profile known as the Coanda Effect, initiating a massive reduction in factory compressed air demand metrics:
- When a micro-volume of high-pressure compressed air (designated as Primary Air) enters the internal plenum chamber, it is forced through an ultra-fine mechanical discharge slot (factory-set at a micro-gap of just 0.05mm). This high-velocity primary air sheet immediately adheres to and skims along the precision-profiled curved internal wall of the knife body.
- Under hydrodynamic boundary-layer rules, this rapid air sheet creates a localized low-pressure vortex (a micro-vacuum envelope) adjacent to the profile wall. This pressure drop instantly pulls and entrains a massive volume of free, uncompressed ambient shop floor air (designated as Secondary Air) directly into the moving air column.
This interaction secures an outstanding volumetric amplification ratio of 40:1. By drawing raw mass straight from the surrounding atmosphere, the EXAIR 110212 projects a hard-impacting, high-velocity air curtain while minimizing supply consumption from the factory power grid, slashing daily process overheads by up to 50% compared to raw drilled pipes or home-made open copper tubes.

UNCOMPROMISED LAMINAR SHEET UNIFORMITY & EXTREME OSHA-COMPLIANT ACOUSTIC COMFORT
- Uniform Dòng Chảy Tầng (Laminar Flow Curtain): Moving far beyond standard blast arrays built from clustered open nozzles—which persistently display mechanical dead zones, fluctuating pressure spikes, and uneven forces that cause water spots or incomplete particle removal. The EXAIR 110212 generates a flat, completely unbroken, and highly linear laminar air sheet stretching across its entire 12-inch (305 mm) structural width. This parallel air curtain flows without internal turbulence, applying identical striking force to every millimeter of product moving along the conveyor belt. This eliminates defects during high-speed bottling label preparation or delicate electronic assembly clearing cycles.
- Absolute Auditory Protection Matching OSHA Mandates: Home-made air nozzles or crushed pipes are persistent sources of high-pitched acoustic screams that degrade shop floor workspace safety indices. By eliminating internal shear eddies, the Super Air Knife 110212 runs exceptionally quiet, maintaining a micro-auditory profile of just 69 dBA under full load conditions at 80 PSIG supply pressure. This quiet index fully complies with the strict industrial noise exposure thresholds enforced by OSHA directives, protecting line personnel from long-term auditory fatigue.

HEAVY-DUTY INDUSTRIAL COMPONENT BLOCKS AND HARD-ANODIZED METALLURGY

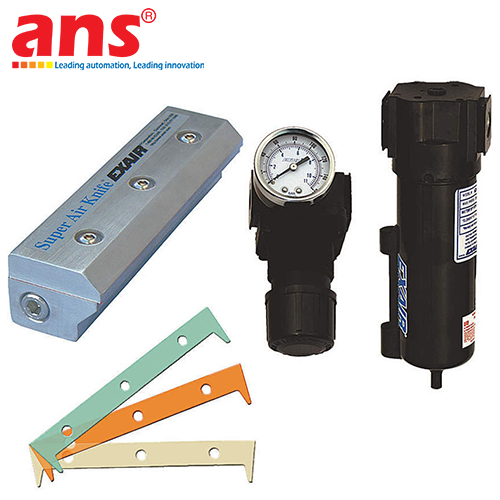

The 110212 system code represents a pre-packaged hardware matrix housing elite fluid conditioning units:
1. A 12-inch Super Air Knife body block extruded from structural aluminum alloy, hard-anodized to shrug off physical abrasive wear and light process erosion.
2. A high-efficiency Filter Separator: A critical front-line shield that traps water condensation droplets, line rust scales, and atomized compressor pump oils, ensuring the discharged laminar air stream remains completely bone-dry and clean, preventing surface fouling on sensitive electronic substrates or clean food packaging containers.
3. An industrial-grade Pressure Regulator fitted with an integrated mechanical dial gauge, providing maintenance crews with an explicit control point to manually adjust the impact force matching specific line speeds or thin packaging material weights on-site.
4. A specialized Polyester Shim Set, allowing engineers to manually expand or narrow the air discharge slot width to scale up volumetric air mass currents for extra-dense debris removal tasks.

AERODYNAMIC PROFILES & AMPLIFICATION PERFORMANCE
- Equipment Manufacturer: EXAIR Corporation (United States - USA)
- System Order Model Code: 110212 (Super Air Knife Kit configuration)
- Active Discharge Blade Width: 12 inch (305 mm nominal metric layout)
- Operating Fluid Dynamic Principle: Coanda surface boundary layer tracking initiating a uniform laminar flow curtain
- Volumetric Air Amplification Coefficient: 40 : 1 (1 primary compressed air unit entrains 40 secondary ambient air units)
- Air Stream Characteristics: Flat, continuous, unbroken air sheet; entirely free of dead spots and fluid eddies.

INCLUDED HARDWARE PACKAGE ARRAYS (COMPONENTS MATRIX)
- Core Blowoff Block: 12-inch Aluminum Super Air Knife body
- Fluid Filtration Interface: Heavy-duty Filter Separator fitted with an integrated manual or auto-drain setup
- Pressure Conditioning Tool: Industrial Pneumatic Pressure Regulator backed by a dial-type mechanical pressure gauge
- Slot Calibration Provisions: Comprehensive Shim Set machined from structural polyester film for millimetric slot width modification.

OPERATIONAL PARAMETERS & PNEUMATIC SUPPLY
- System Driving Energy Source: Cleaned dry industrial compressed air (Pneumatic loop)
- Safe Operating Pressure Spectrum: 20 PSIG to 100 PSIG continuous line supply (Structural ceiling rated up to 250 PSIG for targeted applications)
- Acoustic Auditory Metric (Noise Level): Minimal 69 dBA rating (Logged under active field load at 80 PSIG operating pressure)
- Health & Auditory Safety Compliance: Fully aligned under strict international OSHA standard directive 24 CFR 1910.95
- Pressure Relief Compliance: Meets OSHA dead-end pressure safety regulation 29 CFR 1910.242(b) to eliminate skin puncture risks.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Extrusion Block Substrate: High-strength engineering Aluminum alloy, treated with a hard-anodized protective skin
- Compressed Air Inlet Porting Geometry: Standard technical female NPT threaded inlets machined at both end caps and the bottom spine to support versatile piping layout inside tight machine frames.
- Pre-set Factory Slot Gap Clearance: 0.05 mm (0.002 inch) established via the pre-installed standard shim layer.
- Mechanical Production Origin: 100% Manufactured in the United States (USA)

ENVIRONMENTAL LIMITS & PREVENTATIVE FIELD CHARGES
- System Thermal Tolerance Threshold: Operates smoothly inside high-ambient industrial thermal zones up to 82°C (180°F limit)
- Primary System Deployment Profiles: Front-line drying tool for container labeling tracks, rapid cooling blocks for injection molds and heated steel blanks, turnings and swarf sweeping inside machine shop cells, and invisible air barrier containment for baking ovens and cold chain doors.
- Preventative Maintenance Mandate: Periodically inspect and purge accumulated water from the Filter Separator block to maintain supply air purity, locking the fine 0.05mm discharge slot against particulate bridging or aerosol blockage.
