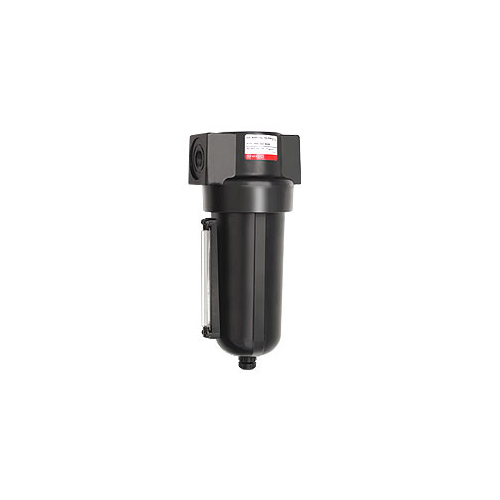

Shavo Vietnam,FILTER (17) SF17-800-M3DC /F00017G00054 Shavo

FEATURES

  • Shavo's Designer Series Large Flow Range general purpose Filter removes upto 99% of the liquid water

  • Design of the filter elements gives both surface and depth filtration for cleaner air

  • Ideally suited for header lines and large flow rated tools and cylinder operations

MODEL SF17

Parameters

Specifications

Pipe Threads

G 1, 1 ¼, 1 ½ Parallel (F) - Standard

Filter Element Size

5, 25, 40 * micron

Element Material

Plastic (Polypropylene)

- Standard

Sintered Bronze

- Optional

Body Material

Al. Alloy die-cast

Bowl Material

Al. Alloy Metal with sight glass - Standard

Maximum Inlet Pressure

with Metal Bowl Manual Drain

: 250 psig (17.5 bar)

with Metal Bowl Automatic Drain and Semi-Automatic Drain

: 150 psig (10.5 bar)

Maximum Operating
Temperature (ambient)

80ºC (175º F)

Standard Nominal Flow Rate at 87 psi (6 bar) supply pressure and 14.5 psi (1 bar) pressure drop

G 1

 880 scfm (415 dm3/sec) CV (16.60)

G 1 ½

 880 scfm (415 dm3/sec) CV (16.60)

Drain

Manual     - Standard
Automatic - Optional
Sem-Automatic - Optional

+ Values indicated are with 40 micron elements, with finer elements these values will be lower.



100% India Origin

Shavo Vietnam

Code: B00001G00081
 Description: FIL/REG11-4SN-201M-M6KA-NS.
 INSTRUMENT FILTER/REG WITH S.S.TRIM,1/4",RELI EVING
 STD.KNOB (WITH GUAGE),METALLIC (70cc)-STD.,MANUAL DRAIN,5
 MICRON (SINT.BRONZE),0.70 TO 7.00 KG/SQ.CM,MAIN
 PORTS NPT/GAUGE PORTS BSPT,NITRILE,CUSTOMERS SPL.
 MOUNTING BRACKET, 11-4SN-201M-M6KA-NS.

100% India Origin

Shavo Vietnam

Code: F00017G00054
 Description: FILTER (17) SF17-800-M3DC
 SHAVO MAKE,FILTER ,(17 SERIES),SIZE 1",STANDARD,WITH MANUAL
 DRAIN,WITH 50 MICRONPLASTIC F ILTERELEMENT,METAL BOWL WITH SIGHT GLASS,THR EAD BSP, SF17-800-M3DC
