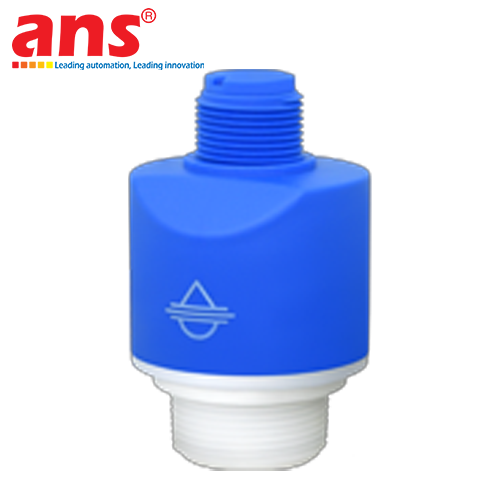

Flowline LR80 80GHz Pulse Radar Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline LR80 80GHz Pulse Radar Level Transmitter is a state-of-the-art non-contact continuous level measurement instrument engineered by Flowline (USA) for demanding liquid, aggressive chemical, slurry, wastewater, and bulk solid applications. Unlike traditional ultrasonic level sensors that suffer signal degradation due to vapor, foam, temperature fluctuations, or pressure variations inside process tanks, the LR80's high-frequency 80GHz radar technology emits an extremely narrow beam that effortlessly penetrates steam, dust, and surface foam to deliver highly accurate, repeatable echo returns.
The Flowline LR80 features a ultra-narrow 4-degree beam angle, effectively eliminating false echo reflections caused by internal vessel obstructions such as agitators, heating coils, ladders, or narrow tank necks. Designed with fully encapsulated PFA/PVDF wetted antenna components, the transmitter exhibits exceptional chemical resistance against harsh acids (HCl, H2SO4, HNO3), caustics, and organic solvents.
Equipped with a standard 2-wire 4-20mA HART output signal, the LR80 also incorporates integrated Bluetooth wireless connectivity, allowing maintenance engineers to configure measuring ranges and perform real-time diagnostics via the intuitive Flowline WebCal app on iOS or Android devices. Featuring a rugged IP68/NEMA 6P submersible enclosure and global intrinsically safe / explosion-proof approvals, the Flowline LR80 delivers unmatched reliability across chemical processing, water/wastewater treatment, pharmaceutical, food & beverage, and energy industries.
• Manufacturer: FLOWLINE (USA)
• Model: LR80
• Product Type: Non-Contact 80GHz Pulse Radar Level Transmitter
• Measuring Range: Up to 30 m (98.4 ft) for liquids and bulk solids
• Operating Frequency: 80 GHz FMCW / Pulse Radar
• Accuracy: ± 1 mm (± 0.04 in)
• Beam Angle: 4° (Ultra-narrow beam for false-echo immunity)
• Signal Output: 4-20 mA (Loop-powered 2-wire) with HART 7 Protocol
• Configuration & Setup: Bluetooth wireless setup via Flowline WebCal App / HART Field Communicator
• Local Display: Optional plug-in LCD display module / Mobile App monitoring
• Wetted Materials: PFA / PVDF (Maximum chemical corrosion resistance)
• Enclosure Material: PBT/PC or 316L Stainless Steel / Die-cast Aluminum
• Process Pressure: -1 to 20 bar (-14.5 to 290 PSI)
• Process Temperature: -40°C to 130°C (-40°F to 266°F)
• Process Connection: 1-1/2" NPT / G 1-1/2" thread or ANSI / DIN Flanges
• Ingress Protection: IP68 / NEMA 6P (Fully submersible enclosure)
• Supply Voltage: 12 - 30 VDC (2-wire loop-powered)
• Hazardous Area Approvals: ATEX / IECEx / FM / CSA Intrinsically Safe & Explosion-Proof
• Quality Compliance: CE, RoHS, ISO 9001
• Standard Accessories: User manual, Factory calibration certificate, process connection adapter.
