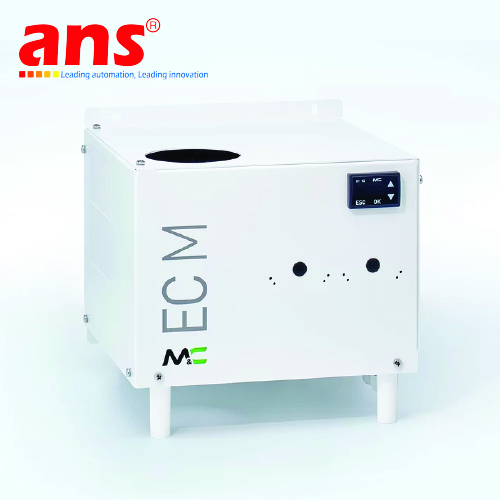

Heat exchanger ECM-2PV Mc-Techgroup Vietnam

Application

The M&C gas cooler ECM is used in gas analysis to lower the dew point of humid gas to prevent condensation in the analyzer. An extremely stable and low gas dew point minimizes water vapour cross-sensitivity and volumetric errors.

Description

The ECM gas cooler is compact, self-controlling and requires only inimum maintenance. Detailed solutions ensure optimum cooling of the sample gas with minimal washout effects and guarantee reliable separation of the condensate.

The forced ventilation compressor cooling system with new control and the special design of the Jet-Stream heat exchangers ensure optimum dew point reduction to a low, stable value and reliable condensate separation. External condensate pre-separation is not required under normal conditions.

The condensate is optionally discharged by means of the integrated peristaltic pumps SR25.2 or externally by condensate traps AD or
collecting vessels TG/TK. The practical design allows the installation of heat exchangers made of different materials depending on the application. The heat exchangers can be ordered optionally.

The digital display on the front panel shows the current cooler temperature. The cooler function can be monitored externally via
an alarm contact. The alarm limits are set to < +1.5 °C [34.7 °F] and > +8.5 °C [47.3 °F] at the factory.

The 1-channel gas cooler ECM-1 can be equipped with a Jet-Stream heat exchanger for a flow rate of max. 250 Nl/h.
