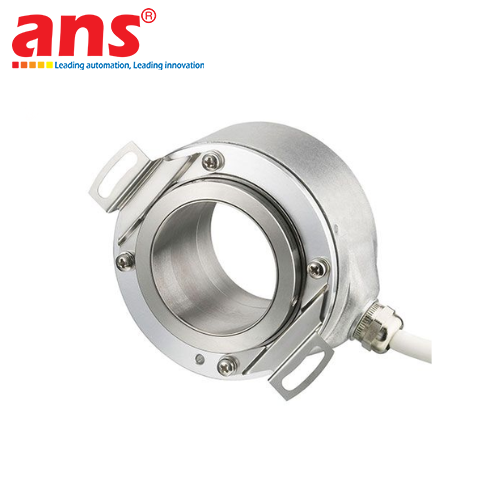

Hengstler RI76TD/ 2048AX.4X30TF-K0-S Hollow Shaft Rotary Encoder
Price: Contact
Brand: Hengstler
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: EU
0911472255Hengstler RI76TD/ 2048AX.4X30TF-K0-S
Introduction: The Hengstler RI76TD/ 2048AX.4X30TF-K0-S is a premium industrial incremental rotary encoder engineered and manufactured 100% in Europe (EU) by Hengstler. Unlike conventional solid shaft designs, the specialized RI76TD series introduces a large-bore hollow shaft geometry. This allows the encoder to mount directly onto the driving motor shaft without requiring an external mechanical coupling layout—drastically minimizing installation space while eliminating structural concentricity alignment errors. The encoder features a high resolution of 2048 pulses per revolution (2048 PPR), delivering highly precise, real-time position and velocity data mapping to centralized PLCs or frequency inverters. Encased in a heavy-duty housing designed to dissipate heavy structural G-shocks and mitigate intense electromagnetic plant noise (EMI), the RI76TD represents a critical sensing component for establishing high-performance closed-loop motion control across large servo drives, heavy-duty elevator winches, and continuous production lines.
Key Features & Technical Specifications:
-
Manufacturer: Hengstler (Germany / Europe)
-
Product Series: RI76 Series (Heavy-duty Through-Hollow Shaft Encoders)
-
Model Code: RI76TD/ 2048AX.4X30TF-K0-S
-
Device Type: Incremental Through-Hollow Shaft Rotary Encoder
-
Resolution Capacity: 2048 PPR (Pulses Per Revolution) for fine operational positioning and stable speed monitoring metrics.
-
Mechanical Integration: Large hollow bore interface featuring a spring-loaded stator coupling wing designed to absorb axial and radial shaft runouts during high RPM cycles.
-
Signal Output: High-fidelity electronic square-wave pulse channels optimized to prevent signal attenuation over long control cabinet cable runs.
-
Country of Origin: 100% Made in Europe (EU Origin).
