0911472255

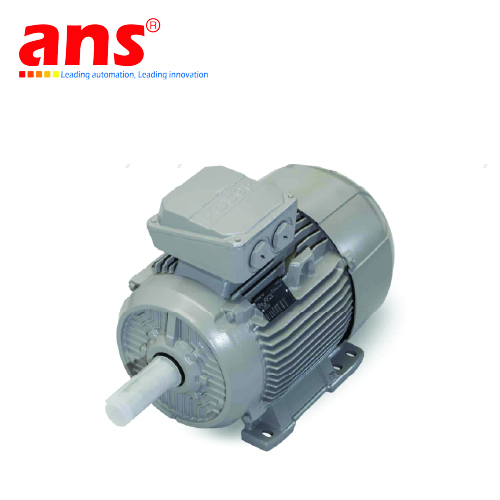

IE3 motor 6RN132S04E30U46R R153 ROTOR NL Vietnam
Information
- Weight 74 kg
- Model 6RN
- Mounting B3
- Frame IEC 132
- Output (kW) 5.5
- Voltage 50Hz
- D400/Y690V 50Hz
- Voltage 60Hz
- D460V 60Hz
- Protection class IP55
- Cooling IC411
- Duty S1
- Insulation class F
- # of poles 4
- # of phases 3
- Eff.class IEC IE3
- Eff% IEC 89.6
- Inom (A) 10.5
- Power factor 0.84
- Speed (rpm) 1475
- Bearing DE 6308-2Z/C3WT (-40°C/+160°C)
- Bearing NDE 6308-2Z/C3WT (-40°C/+160°C)
