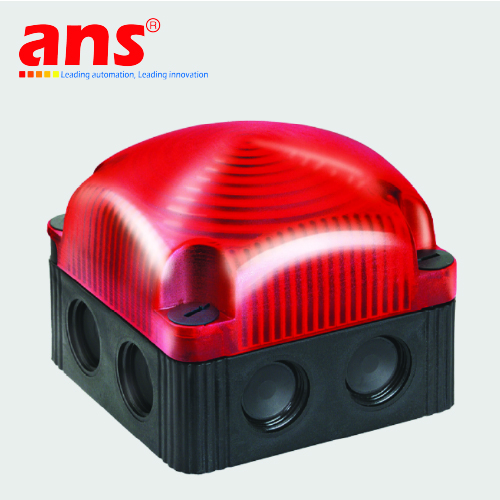

LED Double Flash Beacon BWM 24VDC RD 853.110.55 Werma Vietnam
Price: Contact
Brand: Werma Vietnam
Category: Beacons - Đèn hiệu
Supplier: ansvietnam
Origin: Germany
Gọi lại cho tôi
0911472255LED Double Flash Beacon BWM 24VDC RD 853.110.55 Werma Vietnam
LED Double flash beacon in attractive quadratic form Intense double flash with low power consumption Innovative connector to create traffic light combinations Thread/membrane combination keeps cabling requirements to a minimum
Mechanical Data
- Height 72.000000
- Length 85.000000
- Width 85.000000
- Materials PC; PP-GF
- Dome colour Red
- Housing colour Black
- Connection Screw terminals
- Protection category IP66; IP67
- cross-sectional area maximum 1,50mm² / 16AWG
- Cable entry Membrane grommet
- Cable entry minimum d = 1 mm; d = 6 mm
- Cable entry maximum d = 12 mm; d = 9 mm
- Type of fixing Base mounting; Wall mounting
- Working temperature minimum -25°C
- Weight with packaging 172.000
- Working temperature maximum +50°C
- Product weight 137.000
