LED Light Unit emits white light LFX3-200SW-PT-A(A) CCS Vietnam

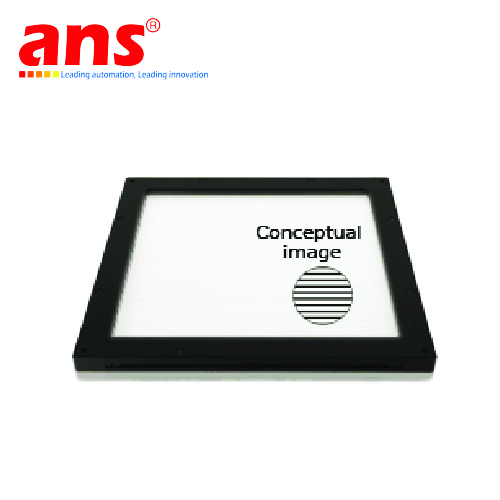

This Light Unit emits white light and measures 243 x 243 x 13.1 mm (width x depth x height).
The light-emitting surface measures 200 x 200 mm.
Product Details
- LED color White
- Correlated color temperature 6,500 K typ.
- Dimensions W 243 mm x D 243 mm x H 13.1 mm
- Input voltage 24 VDC
- Power consumption 46 W max.
- Polarity & signal 1: (+), 2: NC, 3: (-)
- Cable length 300 mm
- Case material Aluminum alloy, Resin (Light-guiding plate, protective plate)
- Input connector SMR-03V-B
- Conformed standards CE, UKCA, RoHS, IEC 62471（Exempt）
- Operating temperature and humidity Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
- Storage temperature and humidity Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
- Cooling method Natural air cooling
- Weight 910 g max.
- Accessories User Manual
