Line Pattern Lights LFX3-PT CCS Vietnam
A cutting-edge method for inspecting bumps on a reflective surface.
We have two types of line intervals to match your inspection conditions:
1 mm type: The end of the model name is "A."
2 mm type: The end of the model name is "B."
* The Line Pattern Lights are special order products.
Features

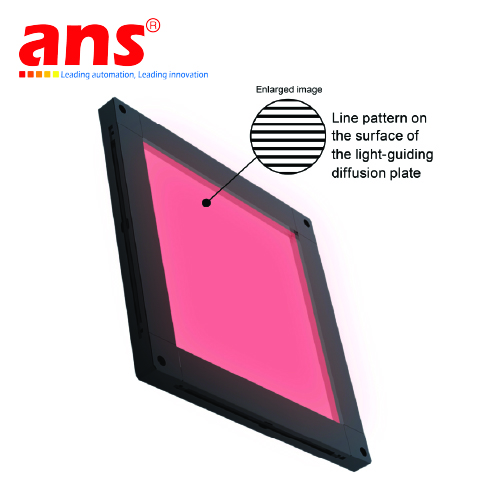

We altered the dot printings on the light-guiding diffusion plate surface to a line pattern. This makes it possible to detect gentle bumps on reflective surfaces which are hard to find with Coaxial Lights.
Example configuration
To capture a perfect image
Install the LFX3-PT-series Light Unit so that it projects the line pattern onto the inspection object surface. When using this product, focus the camera not on the inspection object but on the line pattern of the Light Unit. If the captured image has interference fringes, adjust the settings as follows:
Open the camera aperture.
Increase the distance between the Light Unit and the inspection object.
Note: The most appropriate position of the Light Unit and the best imaging conditions, such as the distance between the camera and inspection object, focus position, F-number, and so on, may vary with the type of the inspection. Use the above description only as a guide for adjustment.
