Đại lý PROFACE Vietnam,Màn hình PFXGP4601TAA PROFACE

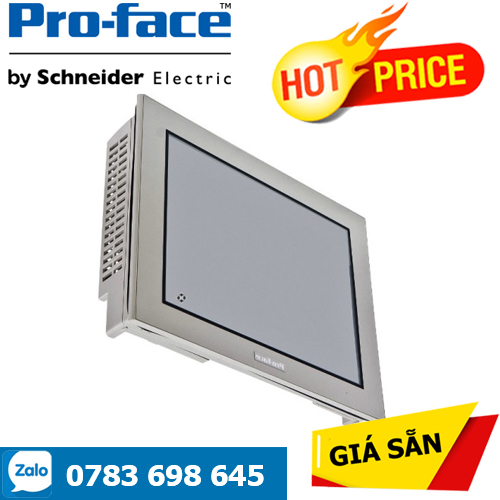

PFXGP4601TAA  PROFACE



Standard product information

Family

HMI

Series

GP4000 Series

Size

12"

Model

PFXGP4601TAA

Global Code

PFXGP4601TAA

Product Features

12" AC Analog

Repair Status

✔ (Maintenance service is available, able to be maintained.)



Display specifications



Display type

TFT Color LCD

Display size

12.1"

Resolution

800 x 600 pixels (SVGA)

Effective display area

W246.0 x H184.5 mm [W9.69 x H7.26 in.]

Display colors

65,536 colors (No blink) / 16,384 colors (Blink)

Backlight

White LED (Not user replaceable. When replacement is required, contact your local distributor.)

Backlight service life

50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)

Brightness control

16 Levels (Adjusted with touch panel or software)

Touch panel type

Resistive Film (analog)

Touch panel resolution

1,024 x 1,024

Touch panel lifetime

1,000,000 times or more

Language fonts

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )

Character sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

Font sizes

Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1

8 x 8 dots

100 char. x 75 rows

8 x 16 dots

100 char. x 37 rows

16 x 16 dots

50 char. x 37 rows

32 x 32 dots

25 char. x 18 rows



1Other font sizes can be set up with the Editor software.





Electrical specifications



Rated input voltage

100 to 240 Vac

Input voltage limits

85 to 264 Vac

Rated frequency

50 / 60 Hz

Rated frequency range

47 to 63 Hz

Allowable voltage drop

1 cycle or less (Voltage drop interval must be 1 second or more.)

Power consumption

100 Vac: 56 VA or less, 240 Vac: 77 VA or less

In-rush current

30 A or less

Noise immunity

Noise Voltage : 1,500 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)

Voltage endurance

1,500 Vac, 20 mA for 1 minute (between power terminal and FG terminals)

Insulation resistance

500 Vdc, 10 MΩ or more (between power terminal and FG terminals)



Environmental specifications



International safety standards


Surrounding air temperature

0 to 55 °C [32 to 131 °F]

Storage temperature

-20 to +60 °C [-4 to 140 °F]

Ambient humidity

10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

Storage humidity

10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

Dust

0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)

Pollution degree

For use in Pollution Degree 2 environment

Corrosive gases

Free of corrosive gases

Air pressure (altitude range)

800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)

Vibration resistance

IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)

Concussion resistance

IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times

Electrostatic discharge immunity

Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)



Memory



Application memory

When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 32MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: No

Backup memory

When using GP-Pro EX:
- Screen Area: SRAM 320KB
- Variable Area: SRAM 64KB

Battery: Replaceable battery / Primary battery for clock data backup

Clock accuracy

±65 sec./month (deviation at room temperature and power is OFF)*2



2Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.





Interface specifications



Serial (COM1)

Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)

Serial (COM2)

Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)

USB (Type A)

Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA or less
Communication distance: 5 m [16.4 ft.] or less

USB (mini-B)

Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less

Ethernet

IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1

SD card

SD Card Slot x 1



Structural specifications



Grounding

Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)

Cooling method

Natural air circulation

Structure

IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*3

External dimensions

W315 x H241 x D56 mm [W12.4 x H9.49 x D2.20 in.]

Panel cut-out dimensions

W301.5 x H227.5 mm [W11.87 x H8.96 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*4

Weight

2.5 kg [5.5 lb] or less



100% USA
Origin

Proface
Vietnam

Model : PFXGP4601TAA
 HMI
Made in China

100% USA
Origin

Proface
Vietnam

Model : PFXSP5B41
Module
Made in China

100% USA
Origin

Proface
Vietnam

New Model : PFXGP4501TAA
Touch Panel (AGP3500-S1-AF)
Note : recheck code khi order

100% USA
Origin

Proface
Vietnam

Model : PFXGP4501TAD
Màn hình

100% China
Origin

Proface
Vietnam

Model : PFXSP5600TPD + PFXSP5B10
HMI + Power Box
Note : Hàng ngừng sx, recheck stock khi order

100% China
Origin

Proface
Vietnam

Model :  PFXSP5B10
Box Module

100% China
Origin

PROFACE
Vietnam

Model : PFXGP4601TAA
HMI

100% China
Origin

Proface
Vietnam

New Model: PFXGP4501TADW
 Màn hình HMI
 (GP2501-SC11)
Note : recheck CODE khi order

100% USA
Origin

Proface
Vietnam

Model : PFXGP4501TADW
Màn hình
Made in China
Note : recheck STOCK khi order

100% USA/China
Origin

Proface
Vietnam

New Model : PFXGP4601TAA
HMI
(GP2301-SC41-24V màu)
Note : recheck CODE khi order
