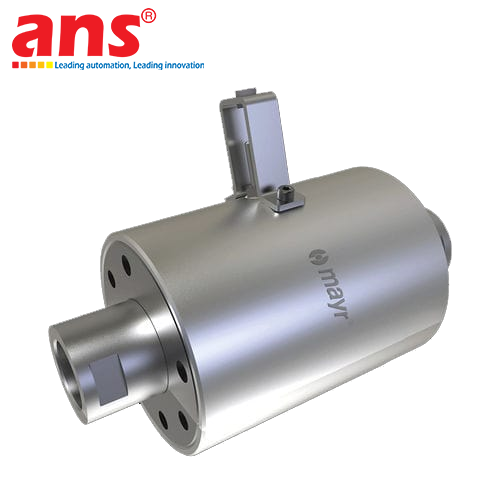

MAYR EAS®-AXIAL BACKLASH-FREE BIDIRECTIONAL ELECTROMECHANICAL LINEAR FORCE LIMITER AND AXIAL OVERLOAD PROTECTION SYSTEMS

DEEP PRODUCT OVERVIEW & PUSH-PULL LINEAR SYSTEMS FAULT ISOLATION INFRASTRUCTURE
The Mayr EAS®-axial represents the absolute global industry standard in specialized solid-state power transmission safety mechanism engineering, configured as a high-precision backlash-free mechanical Linear Overload Clutch and protective Axial Force Limiter, developed and manufactured 100% in Germany by world-renowned safety automation mechanism pioneer Chr. Mayr GmbH + Co. KG. Moving away from standard rotational couplings engineered solely to manage twisting torque limits, the EAS®-axial functions as the ultimate mechanical fail-safe "push-pull linear fuse engine", specified explicitly to pair flush straight inside the driving rod linkages of mechanical piston stems, multi-axis crank arms (Crank mechanisms), high-capacity electric servo cylinders, and automated structural toggle links operating inside industrial toggle presses, high-load molding machines, or continuous stamping lines. Across these linear handling networks, unexpected systemic jams, part misalignment, or monitoring track logic dropouts induce massive thrust load anomalies hằng ngày. Without an absolute immediate physical axial force decoupling component, severe compressive thrust spikes will warp heavy piston shafts, buckle structural pins, and shatter high-value reduction gear frames inside fractions of a second. The Mayr EAS®-axial completely terminates this dynamic risk, cleanly breaking mechanical contact the exact millisecond forces cross pre-set safety thresholds to guarantee uninterrupted shift runtime metrics via localized distribution pipeline ANS.

UNCOMPROMISED BIDIRECTIONAL LUBRICATED LOCKING (TENSILE & COMPRESSIVE) AT ZERO MICRO-PLAY
The primary technical asset and core compliance advantage driving the EAS®-axial series across automated workspace cells resides in its symmetric dual-axis force tracking parameters:
- Complete Dipolar Overload Safety Overrides: The EAS®-axial houses a proprietary symmetrical ball-detent matrix calibrated to provide continuous, dual-track safety management across both stroke direction paths: Tensile force inputs (pulling loops) and Compressive force thresholds (pushing actions). Internal pre-stressed mechanical disc spring columns assert an ironclad clamp force kịch trần, packing hardened alloy bearing balls tight into precision-ground flat friction detents. Under nominal daily operation factors, this structural layout maps a closed-loop force path tracking absolute zero axial play or micro-slip (100% Backlash-free linear force transmission), locking rod coordinates perfectly stable.
- Millisecond-Level High-Response Disengagement Index: The exact millisecond local push or pull resistance boundaries breach factory-calibrated safe parameters due to material blockages, the internal locking assembly breaks past spring constraints, completely decoupling the mechanical line within a fraction of a second. Following disconnection, the internal shaft moves freely with near-zero residual friction drag, fully isolating downstream motor gear boxes or linear drives from destructive reverse impact waves.

AUTOMATED CONCENTRIC RE-ENGAGEMENT INDICES & FLEXIBLE RUGGED FIELD CALIBRATION
- Low-Complexity Automated Reset Protocol: Once field technical maintenance crews resolve the underlying physical blockage on the production floor, resetting the deactivated EAS®-axial unit occurs automatically. As the automated actuator strokes back in the reverse alignment path, internal steel bearing balls automatically snap-on re-seat back into their precision-ground flat friction detents across both push-pull parameters. This automated angle reference synchronization restores processing cycles chớp nhoáng without requiring tool arrays, system dismantling, or manual gauge calibrations.
- Granular Local Force Modification: The device empowers engineering execution teams to perform highly granular modifications of the maximum disengagement boundary straight on the assembly line. Utilizing a precision-etched alphanumeric calibration scale machined into the plated outer alloy housing, rotating the integrated ring modifies disc spring pre-load factors to bám sát local workspace production profiles seamlessly.

EDGE-LEVEL PLC DIAGNOSTIC INTERFACING & REINFORCED MAINTENANCE-FREE LIFE LIFE
- Closed-Loop Fault Telemetry Automation Integration: The high-tensile hardware chassis features a pre-machined technical actuation alignment channel designed to interact flawlessly with proximity sensor arrays or external waterproof mechanical Microswitches. The exact millisecond mechanical overload causes clutch separation, the sensor sends an automated error output signal straight to the central master PLC rack, triggering an immediate electrical cutoff to safeguard active motor lines.
- Hermetic Solid-State Structural Shell Sealing: The main structural alloy steel casing block undergoes advanced chemical coating treatments, sealing internal moving gear components inside an isolated carbon-dust-free chamber pre-packed with premium synthetic thermal lubricants. The solid-state module operates 100% maintenance-free regarding routine field oil line refills, thoroughly shield-proofing automated fields against cutting fluid coolant washes and abrasive metal abrasive shavings under certified ANS logistical distribution pipelines.

DYNAMIC PROPULSION METROLOGY & LINEAR COUPLING PERFORMANCE DATA
- Equipment Manufacturer: Chr. Mayr GmbH + Co. KG (Germany)
- Authorized Sourcing Supplier in Vietnam: ANS (AnhNghiSon)
- Full System Part Number Certified: EAS®-axial Series
- Device Structural Profile: High-precision backlash-free mechanical linear force limiter and axial overload clutch unit.
- Monitoring Axis Force Vectors: Bidirectional closed-loop tracking, protecting both Tensile (pull) and Compressive (push) travel paths along the linear axis.
- Operational Disengagement Topology: Symmetric ball-detent mechanical separation system, executing absolute friction-free rod release upon over-force validation.
- Linear Axis Interface Scale: 100% Backlash-free axial power transmission (Zero micro-play coupling under nominal conditions).
- Reset Re-engagement Kinematics: Fully automated snap-on re-locking layout activated simply by reversing the machine actuator travel orientation.
- Nominal Disengagement Force Scale: Multi-tier scalable configurations calibrated to fit precise metric thresholds from compact linear rods up to heavy industrial push-rods handling tens of thousands of Newtons.
- Commercial Pricing Parameter: Contact (At ANS to receive verified custom configuration quotation metrics based on rod threads and target force thresholds)

MECHANICAL PROPERTIES & INTERCONNECT PROVISIONS hiện trường
- Axis Ingress Connection Mating: Precision metric internal/external threaded rod ends, rod-eye mechanical joints, or custom circular mounting flange layouts resisting rotation.
- Transient Shock Deflection Rating: Rigid rugged mechanical layout built to filter out transient dynamic spike load variations, preventing false error trips inside extreme processing lines.
- Core Housing Substrate Metallurgy: High-density engineered structural alloy steel treated with multi-layer anti-oxidization industrial plating, precision-ground to a flat layout resisting structural deflection.
- Friction Coupling Internal Matrix: Case-hardened structural steel bearing balls matching lifetime pre-packed high-temperature synthetic grease channels.

ELECTRICAL RATINGS & INTEGRATED AUTOMATION LOGIC
- Edge-Level Status Telemetry Feedback: Integrated technical linear stroke travel actuation ring coordinating with external proximity sensor arrays or mechanical Microswitches.
- Diagnostic Signal Output Provision: Real-time closed-loop signal routing immediate overload fault signals straight to localized master factory automation PLC controllers.
- Lubrication & Preventative Maintenance Mandate: Sealed solid-state build requiring zero grease ingress; 100% Maintenance-free concerning physical lubrication routines.
- Mechanical Production Origin: 100% Engineered and Manufactured in Germany (Germany Origin).
