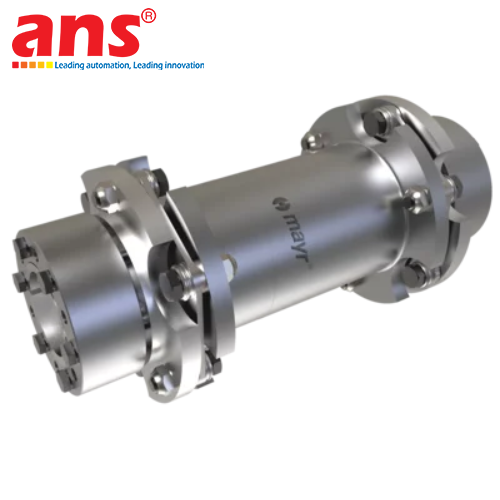

The Mayr ROBA®-DS Size 16 Type 9110.00010 Flexible Disc Coupling (Drawing No.: DS Y7110084 / Order Art No.: 7047440) is a high-precision, backlash-free steel disc coupling engineered by Mayr (Germany). Designed for demanding high-speed drive applications, it offers high torsional stiffness while compensating for axial, angular, and radial shaft misalignments.

The disc pack of the ROBA-DS series is constructed from high-tensile stainless spring steel, transmitting torque frictionally via robust clamping sleeves without mechanical wear, eliminating the need for lubrication or routine maintenance. This Size 16 Type 9110.00010 model delivers a nominal torque rating of 300 Nm and a peak overload capacity of 450 Nm. A key advantage of Art No. 7047440 is that the complete coupling assembly is dynamically balanced to ISO 1940 Grade G2.5 at 3000 rpm, minimizing vibration, reducing bearing loads, and ensuring smooth, ultra-precise high-speed performance.

• Manufacturer: Mayr (Germany)
• Product Series: ROBA®-DS Series (Precision All-Steel Disc Couplings)
• Drawing Reference (Drawing No.): DS Y7110084
• Configuration Type: Type 9110.00010
• Order Part Number (Art No.): 7047440
• Coupling Size: Size 16
• Nominal Torque (TKN): 300 Nm
• Peak Torque (TKmax): 450 Nm
• Dynamic Balancing Grade: ISO 1940 Grade G2.5 at 3000 rpm
• Operational Characteristics: Completely backlash-free, high torsional rigidity, maintenance-free
• Misalignment Capability:
  - Axial shaft misalignment
  - Angular shaft misalignment
  - Radial shaft misalignment
• Disc Pack Material: High-strength stainless spring steel
• Hub Material: High-grade steel / alloy
• Maximum Speed: Up to 10,000 rpm (depending on application)
• Operating Temperature Range: -30°C to +120°C (-22°F to +248°F)
• Mounting Interface: Friction-locking clamping hubs or keyway options
• Standards & Approvals: ISO 9001, CE, RoHS compliant
