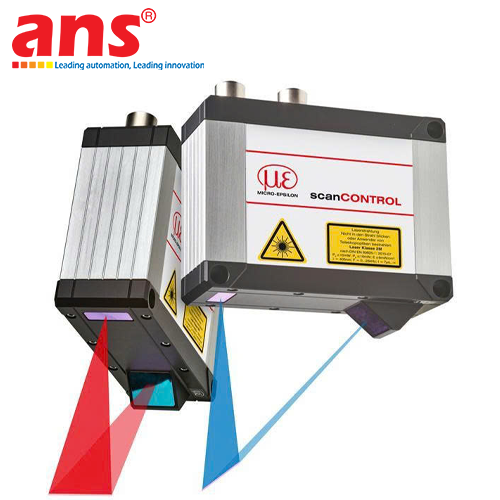

The scanCONTROL LLT2950-10/BL 2D/3D Laser Profile Sensor (Part No: 4322074.003) manufactured by MICRO-EPSILON (Germany) is an ultra-precise, non-contact optical measurement solution designed for challenging industrial inspection tasks. Featuring an integrated controller within a compact, rugged aluminum housing rated IP65, it eliminates the need for an external processing unit, saving installation space and ensuring superior reliability in harsh industrial environments.

The key advantage of the LLT2950-10/BL is its patented Blue Laser technology operating at a 405 nm wavelength. Unlike conventional red lasers, the shorter wavelength of the blue laser does not penetrate organic or translucent materials and minimizes optical diffraction. This delivers exceptional signal stability and crisp profile contours on traditionally difficult-to-measure surfaces, such as polished shiny metals, glowing red-hot steel (>700°C), black plastics, semiconductors, and glass.

Covering a measuring range of 8 mm (Z-axis) by 10 mm (X-axis, MMR) with a high resolution of up to 1,280 points per profile and an ultra-fast acquisition rate of up to 2,000 Hz, the sensor captures complex geometric profiles at high conveyor speeds. Connectivity is seamless via Gigabit Ethernet (supporting Power over Ethernet - PoE) and an industrial multifunction port (RS422, digital inputs/outputs, and DC power), facilitating direct real-time integration into robotic arms, automated inspection jigs, and factory control networks. It is an optimal choice for semiconductor manufacturing, electronics QA/QC, electric vehicle (EV) battery production, and precision toolmaking.

• Manufacturer: MICRO-EPSILON
• Country of Origin: Germany (100% Germany Origin)
• Model: LLT2950-10/BL
• Part Number: 4322074.003
• Product Series: scanCONTROL 2950-10/BL (2D/3D High-speed Laser Profile Sensor)
• Architecture: Sensor with integrated controller
• Protection Class: Rugged aluminum housing, IP65
• Measuring Range (Z-axis): 8 mm
• Measuring Range (X-axis, MMR): 10 mm
• Measurement Points per Profile: Up to 1,280 points
• Profile Frequency: Up to 2,000 Hz
• Light Source: 7 mW (Laser class 2M)
• Laser Wavelength: 405 nm (Blue Laser technology, Option 003)
• Interfaces:
  - 1x Gigabit Ethernet (Power over Ethernet - PoE compatible)
  - 1x Multifunction port (Power supply, digital inputs, RS422)
• Power Supply: 11 - 30 VDC, 500 mA
• Included Accessories: Connection cable for multifunction port (12-pole Escha plug to open ends, 5 m)
• Industrial Applications: Gap, flush, height, flatness, and angle inspection; scanning shiny metals, red-hot glowing objects, semiconductors, electronics, EV batteries, and precision automotive/aerospace parts.
