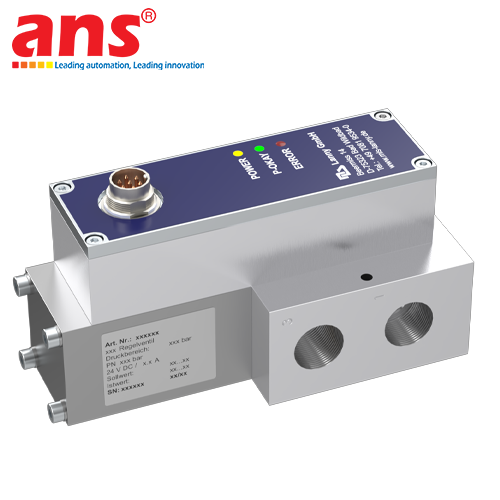

MLS Lanny SERIES GZ Laser Electronic Gas Mixing System
Price: Contact
Brand: MLs Lanny
Category: Thiết bị tự động hóa
Supplier: AnhNghiSon
Origin: Germany
0911472255The MLS Lanny SERIES GZ Laser Electronic Gas Mixing System represents a pinnacle engineering benchmark in the domain of intelligent multi-channel digital gas blending and regulation, meticulously conceptualized, designed, and manufactured by Lanny GmbH, headquartered in Germany. Within advanced high-speed laser manufacturing matrices—such as maintaining the pristine, highly balanced gaseous atmosphere inside the optical resonance cavities of industrial CO2 lasers (a sensitive blend of Carbon Dioxide, Nitrogen, and Helium) or deploying tailored dynamic shielding gas envelopes for robotic Fiber laser welding cells (Argon fields blended with accurate fractions of CO2 or Oxygen)—a composition variance of even less than 0.1% can severely degrade laser beam propagation, disturb arc weld-pool mechanics, or trigger structural oxidation on workpieces. The SERIES GZ Laser product line was specifically engineered to eradicate these manufacturing vulnerabilities by shifting gas blending protocols from passive mechanical manual dosing to smart, software-driven digital mixing, offering uncompromised linear consistency and dynamic component adjustment in real-time.
The technical core of the MLS Lanny SERIES GZ Laser relies on a high-performance, independent multi-channel closed-loop proportional control architecture. The platform incorporates highly responsive onboard mass flow sensors and independent pressure transducers chiseled into each dedicated primary inlet gas stream. Real-time mass flow and volumetric data for each individual gas channel are sampled thousands of times per second, routing these dynamic metrics back to the central microprocessor block. The internal intelligent PID algorithm continuously contrasts these runtime variables against target mixture percentages driven via local HMI setups or master PLC/CNC systems (via standard 0-10V, 4-20mA analog signals, or industrial network fieldbus communication). Should any primary supply pressure drops occur from upstream utility cylinders, the microprocessor instantly recalibrates the electrical current delivered to the high-frequency proportional solenoid cores, re-adjusting valve orifices smoothly. This active synchronization cycle eliminates flow hysteresis, neutralizes backpressure cross-talk between differing supply pressures, and ensures that the final blended gas discharge matches targeted ratios perfectly before entering the nozzle array or laser cavity, upholding processing stability across prolonged operations.
Hardware-wise, the SERIES GZ Laser industrial blending platform showcases masterclass German precision engineering. The monolithic core mixing manifold is CNC-machined from high-strength alloy compounds or high-grade stainless steel blocks chiseled to withstand the continuous kinetic abrasion of high-velocity gas streams over decades of uptime. Internal elastomers and sealing matrices utilize premium FKM (Viton) or proprietary polymer compounds, ensuring leak-free performance and absolute resistance against cross-contamination between gas chambers, while eliminating mechanical particulate shedding that could compromise pure gas streams. The top-mounted sensitive electronic circuitry is housed within a rugged enclosure certified to international IP65/IP67 ingress standards, shielding internal electronics from fine airborne dust, industrial humidity, and shop-floor oil vapor sprays. Furthermore, the electronic motherboard is reinforced with active electromagnetic compatibility modules (EMI/RFI shielding), ensuring error-free signal transmission even when positioned adjacent to high-voltage laser resonators or multi-kilowatt variable frequency motor drives. Implementing the MLS Lanny SERIES GZ Laser intelligent digital flow control platform allows manufacturing plants to slash process gas consumption, safeguard downstream assets, maximize processing stability, and fully align pneumatic assets with smart automation grids.
• Manufacturer: MLS Lanny (Lanny GmbH)
• Country of Origin: Germany
• Product Category: Electronic Gas Mixing System / Digital Multi-Channel Gas Blender
• Product Line Model: SERIES GZ Laser (Engineered for Laser Processing & Industrial Laser Applications)
• Gas Channels Supported: Highly configurable from 2-channel up to 3-channel independent gas inputs (e.g., CO2 + N2 + He or Ar + CO2)
• Control Architecture: Independent Multi-Channel Digital Closed-Loop Proportional Flow Control
• Integrated Transducer Matrix: Onboard dedicated Mass Flow Sensors and Pressure Sensors for each gas stream
• Command Set-point Input: Standard analog 0 - 10 VDC or 4 - 20 mA interfacing directly with master PLCs / CNC laser systems
• Monitor Feedback Output: Analog 0 - 10 VDC or 4 - 20 mA mapping real-time constituent percentages of the blended discharge
• System Operating Voltage: 24 VDC ± 10%
• Gas Mixing Precision (Accuracy): < ± 1.0% of setting range (Dependent on specific gas configurations and volumetric flow dales)
• System Repeatability Index: < ± 0.2% of Full Scale
• Dynamic Control Step Response: < 30 ms to 50 ms (Ultra-fast execution suited for rapid gas composition switching)
• Maximum Input Pressure Threshold (Inlet): Up to 10 bar, 20 bar, or higher pressure executions dependent on internal valve layout
• Mixing Manifold Material: Monolithic High-Grade Stainless Steel or specialized erosion-resistant alloys
• Internal Elastomeric Elements (Seals): High-performance FKM (Viton) compounds engineered for broad chemical resistance and zero chamber leakages
• Compatible Gas Media: Carbon Dioxide (CO2), Nitrogen (N2), Helium (He), Argon (Ar), Oxygen (O2), and other inert industrial gas profiles
• Mechanical Gas Interfacing: Standard threaded entries (G1/4", G1/2") or modular integrated flange interfaces tailored for control cabinet housing
• Electrical Ingress Protection Rating: IP65 / IP67 certified dust-tight and water-resistant execution
• Allowable Operating Thermal Range: -10 °C to +60 °C Ambient environment
