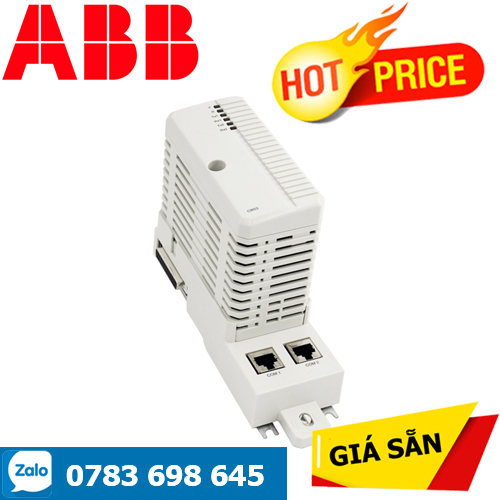

ABB   CI853K01 Communication_Module​



Tên thiết bị:       Mô đun giao tiếp CI853K01

Mã đặt hàng:    CI853K01

Nhà sản xuất:    ABB





Giới thiệu chung về Mô đun giao tiếp CI853K01 ABB

  Mô-đun CI853K01 ABB có 2 giao thức:

COMLI:  là một giao thức ABB để truyền dữ liệu giữa các bộ điều khiển.Mô-đun CI853K01 ABB được thiết kế cho giao tiếp master/slave không đồng bộ trong chế độ bán song công. có thể được sử dụng trên bản dựng trong cổng COM3 và tùy chọn trên Cổng CI853.

Chiều dài cáp có thể được mở rộng đáng kể (vài km) bằng bộ chuyển đổi cáp quang. RS-232C là tiêu chuẩn giao diện truyền thông được sử dụng để truyền thông nối tiếp với COMLI.

 CI853 hỗ trợ Hot Swap.

Modbus RTU:  là một giao thức mở, nối tiếp (RS-232 hoặc RS-485) bắt nguồn từ kiến trúc Master/Slave trao đổi thông tin ở chế độ bán song công.

Chức năng CI853K01 ABB có thể được cấu hình cả trên COMports của AC 800M và CI853.

CI853 chỉ hỗ trợ chế độ Master trong MODBUS RTU





Thông số cơ bản Mô-đun CI853K01

  • Giao thức : COMLI và MODBUS RTU

  • Số kênh : 2

  • Tốc độ đường truyền: 75 - 19 200 b/s

  • Kết nối : RJ-45 female (8-pin)

  • Nhiệt độ hoạt động : +5 to +55 °C (+41 to +131 °F)

  • Nhiệt độ lưu trữ: -40 to +70 °C (-40 to +158 °F)

  • Cấp độ bảo vệ : IP20 according to EN60529, IEC 529

  • Kích thước (LxWxH) : 12.75cm x 5.9cm x 18.5cm

  • Trọng lượng: 0.7 kg


Ứng dụng CI853K01:

Ứng dụng cho tự động hóa công nghiệp

ü  Máy đóng gói

ü  Máy dệt

ü  Hệ thống lắp đặt

ü  Công nghiệp điện/điện tử

ü  Máy lắp ráp

ü  Ô tô

ü  Nước/nước thải

ü  Cơ khí tổng hợp

ü  Thực phẩm & nước giải khát
