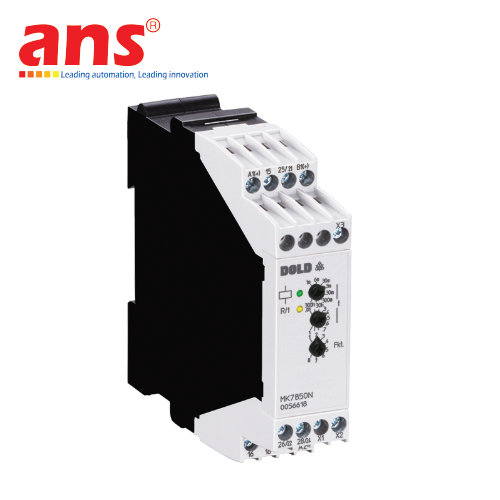

Multifunction relay MK7850N.82/200/61 AC/DC12-240V Dold Vietnam
Price: Contact
Brand: Dold Vietnam
Category: 4.0 Industry
Supplier: ansvietnam
Origin: Germany
Gọi lại cho tôi
0911472255Multifunction relay MK7850N.82/200/61 AC/DC12-240V Dold Vietnam
Advantages
- Up to 10 functions in one unit
- Simplified storage
- Increased flexibility
- Quick setting of long time values
Features
- According to IEC/EN 61812-1
- 8 functions settable via rotational switch:
- - Delay on energisation (AV)
- - Fleeting on make (EW)
- - Delayed pulse (IE)
- - Flasher, start with pulse (BI)
- - Delay on de-energisation (RV)
- - Pulse forming function (IF)
- - Fleeting on break (AW)
- - Delay on energisation and de-energisation (AV / RV)
- 8 time ranges from 0.02 s to 300 h selectable via rotational switches
- Voltage range AC/DC 12 ... 240 V
- With time interruption / time adding input for all functions
- Suitable for 2-wire proximity sensor control
- 2 changeover contacts, one programmable as instantaneous contact
- LED indicators for operation, contact position and time delay
- Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
- as option with pluggable terminal blocks for easy exchange of devices
