Raytek Vietnam,Nhiệt kế hồng ngoại nhiệt độ cao Raytek RAYR3IPLUS2ML

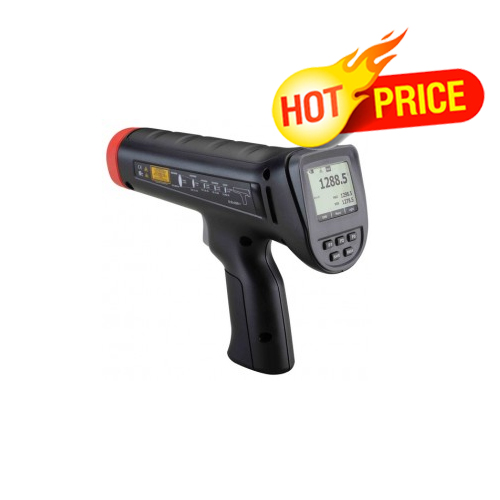

Nhiệt kế hồng ngoại nhiệt độ cao Raytek 3I PLUS - 3I PLUS Series High Temp IR Thermometers

Raytek 3I PLUS Nhiệt kế hồng ngoại Raytek IR thế hệ mới được thiết kế để sử dụng trong các ứng dụng công nghiệp nhiệt độ cao, 400 đến 3000 ° C (752 đến 5432 ° F), chẳng hạn như sắt, thép, luyện kim loại, đúc và chế biến, gốm sứ, chất bán dẫn, hóa chất và hóa dầu lò nung, cũng như xử lý nhiệt và nhà máy điện. Nhiệt kế Raytek 3i Plus có tính năng truyền dữ liệu nhanh chóng và dễ dàng sang PC hoặc điện thoại thông minh, một ứng dụng di động để cộng tác và truyền dữ liệu nhanh chóng, đồng thời có thể được sử dụng như một nhiệt kế trực tuyến tạm thời.

Đặc điểm Raytek 3I PLUS:

  • Dải nhiệt độ từ 400 đến 3000ºC (752 đến 5432ºF)

  • Nhiệt độ môi trường xung quanh: 0 đến 50ºC (32 đến 120ºF)

  • Tùy chọn ngắm laser và ngắm phạm vi kép để nhắm mục tiêu đo nhanh chóng và đơn giản

  • Độ phân giải quang học cao: 250: 1, đảm bảo đọc nhiệt độ chính xác ở khoảng cách xa hơn

  • Công nghệ nhìn Red Dot để nhắm mục tiêu chính xác dựa trên vật thể còn nóng

  • Máy dò và cảnh báo chịu nhiệt "Red Nose "

  • Lưu trữ dữ liệu: lên đến 4.900 đơn vị với vị trí, ngày tháng và thời gian

  • Công nghệ không dây Bluetooth® để giao tiếp với thiết bị di động

  • Lập hồ sơ phần mềm máy tính cá nhân (PC)

Mã đặt hàng nhiệt kế hồng ngoại Raytek 3I PLUS

  • Raytek RAYR3IPLUS2ML

  • Raytek RAYR3IPLUS2MSCL

  • Raytek RAYR3IPLUS1MSCL

  • Raytek RAYR3IPLUS1ML

Phụ kiện 3I PLUS:

  • Pin Lithium-Ion Raytek XXXR3IPLUSACCU

  • Túi đựng Raytek XXXR3IPLUSCC

  • Bộ chuyển đổi cổng USB và phích cắm nguồn Raytek XXXR3IPLUSPS

  • Bộ chuyển đổi giắc cắm USB sang DC Raytek XXXR3IPLUSPSCON

  • Dây treo Raytek XXXR3IPLUSSTRAP

USB Raytek XXXR3IPLUSUSBCB

Raytek® Compact CM





VOLTAGE OUTPUT (Linear, scaleable from 0-5V)

RAYCMLTV



 -20 to 500°C (-4 - 932°F) range, 1 m (3.3 ft.) cable, 0.75 - 16UNF 2A threaded SS housing

RAYCMLTVM



 -20 to 500°C (-4 - 932°F) range, 1 m (3.3 ft.) cable, 18Mx1 metric threaded SS housing

RAYCMLTV3



 -20 to 500°C (-4 - 932°F) range, 3 m (10 ft.) cable, 0.75 - 16UNF 2A threaded SS housing

RAYCMLTV3M



 -20 to 500°C (-4 - 932°F) range, 3 m (10 ft.) cable, 18Mx1 metric threaded SS housing





TYPE J THERMOCOUPLE OUTPUT

RAYCMLTJ



 -20 to 500°C (-4 - 932°F) range, 1 m (3.3 ft.) cable, 0.75 - 16UNF 2A threaded SS housing

RAYCMLTJM



 -20 to 500°C (-4 - 932°F) range, 1 m (3.3 ft.) cable, 18Mx1 metric threaded SS housing

RAYCMLTJ3



 -20 to 500°C (-4 - 932°F) range, 3 m (10 ft.) cable, 0.75 - 16UNF 2A threaded SS housing

RAYCMLTJ3M



 -20 to 500°C (-4 - 932°F) range, 3 m (10 ft.) cable, 18Mx1 metric threaded SS housing





TYPE K THERMOCOUPLE OUTPUT

RAYCMLTK



 -20 to 500°C (-4 - 932°F) range, 1 m (3.3 ft.) cable, 0.75 - 16UNF 2A threaded SS housing

RAYCMLTKM



 -20 to 500°C (-4 - 932°F) range, 1 m (3.3 ft.) cable, 18Mx1 metric threaded SS housing

RAYCMLTK3



 -20 to 500°C (-4 - 932°F) range, 3 m (10 ft.) cable, 0.75 - 16UNF 2A threaded SS housing

RAYCMLTK3M



 -20 to 500°C (-4 - 932°F) range, 3 m (10 ft.) cable, 18Mx1 metric threaded SS housing





ACCESSORIES

XXXCMACMN



Stainless steel mounting nuts (2)

XXXCMACMNM



Stainless steel mounting nuts (2) metric threads

XXXCIACFB



Stainless Steel Fixed Bracket

XXXCIADJB



Stainless Steel Adjustable Bracket

XXXCMACAP



Stainless Steel Air Purge Collar

XXXCMACAPM



Metric Air Purge Collar for metric threaded housing

XXXCMACRA



Right Angle Mirror

XXXCMACRAM



Right Angle Mirror, metric thread

XXXCIDCPS



DIN mount 24VDC, 125mA switching power supply (110/220V input)

XXXCI1CON



Thermocouple cable extension connector kit for CMJ models

XXXCI2CON



Thermocouple cable extension connector kit for CMK model

RAYGPC



Panel mount meter and power supply 110/220VAC for CM sensors

XXXCMACPW



Protective Silicon window for CM sensors

XXXCMACPWM



Protective Silicon window for Metric CM sensors

XXXCMCOMM



Communications kit for CM sensors

LOW TEMP EXTENSION CABLES (maximum ambient 105°C, 220°F)

XXXCI1CB50



Extension cable for CI1; 15 meter (50 feet)  Requires XXXCI1CON when ordering

XXXCI1CB100



Extension cable for CI1; 30 meter (100 feet) Requires XXXCI1CON when ordering

XXXCI2CB50



Extension cable for CI2; 15 meter (50 feet) Requires XXXCI2CON when ordering

XXXCI2CB100



Extension cable for CI2; 30 meter (100 feet) Requires XXXCI2CON when ordering

XXXCI3CB50



Extension cable for CI3; 15 meter (50 feet)

XXXCI3CB100



Extension cable for CI3; 30 meter (100 feet)

HIGH TEMP EXTENSION CABLES (maximum ambient 260° C, 500° F)

XXXCIACCB50H



High temperature cable; 15 meter (50 feet) (260° C; 500° F)

XXXCIACCB100H



High temperature cable; 30 meter (100 feet) (260° C; 500° F)







CI Series Compact IR Sensors

RAYCI



Raytek Compact CI Infrared Pyrometer Series

RAYCI1B



Raytek RAYCI1B Infrared Temperature Sensor, Type J Output, 100 to 500°C (212 to 932°F)

RAYCI1A



Raytek RAYCI1A Infrared Temperature Sensor, Type J Output, 0 to 115°C (32 to 240°F)

RAYCI1A10L



Raytek RAYCI1A10L Infrared Temperature Sensor with 1 m Cable, Type J Output, 32 to 662°F (0 to 350°C)





Raytek RAYCI3A Infrared Temperature Sensor, 0-5VDC Output, 0 to 115°C (32 to 240°F)





Raytek RAYCI3A50L Infrared Temperature Sensor with 15m Cable, 0-5VDC Output, 0 to 115°C (32 to 240°F)





Raytek RAYCI3B Infrared Temperature Sensor, 0-5VDC Output, 100 to 500°C (212 to 932°F)





Raytek RAYCI2A Infrared Temperature Sensor, Type K Output, 0 to 115°C (32 to 240°F)





Raytek RAYCI2B Infrared Temperature Sensor, Type K Output, 100 to 500°C (212 to 932°F)





Raytek RAYCI2B10L Infrared Temperature Sensor with 3m Cable, Type K Output, 100 to 500°C (212 to 932°F)





Raytek RAYCI2B50L Infrared Temperature Sensor with 15m Cable, Type K Output, 100 to 500°C (212 to 932°F)





Raytek RAYCI3A10L Infrared Temperature Sensor with 3m Cable, 0-5VDC Output, 0 to 115°C (32 to 240°F)

ACCESSORIES FOR CI SERIES

XXXCIACWC



CI Water-cooled Housing Only (For units with high temperature cable)

XXXCIACMN



Mounting nuts (2)

XXXCIACMNM



Metric Mounting nuts (2)

XXXCIACFB



Fixed bracket

XXXCIADJB



Adjustable bracket

XXXCIAP



Air Purge Collar (aluminum)

XXXCIACAP



Air Purge Collar (stainless)

XXXCIACAPM



Metric Air Purge Collar for metric threaded housing

XXXCIACRA



Right angle mirror  (Not For Use With Water Cooled Option, (product not available in metric)

XXXCIDCPS



DIN mount 24VDC, 125mA switching power supply (110/220V input)

XXXCI1CON



Thermocouple cable extension connector kit for CI1 model

XXXCI2CON



Thermocouple cable extension connector kit for CI2 model

RAYGPC



Panel mount meter and power supply 110/220VAC for CI

CI LOW TEMP EXTENSION CABLES (maximum ambient 105°C, 220°F)

XXXCI1CB50



Extension cable for CI1; 15 meter (50 feet)

XXXCI1CB100



Extension cable for CI1; 30 meter (100 feet)

XXXCI1CON



XXXCI1CON,T/C EXTENSION CONN. KIT FOR CI1 MODEL

XXXCI2CB50



Extension cable for CI2; 15 meter (50 feet)

XXXCI2CB100



Extension cable for CI2; 30 meter (100 feet)

XXXCI2CON



XXXCI2CON,T/C EXTENSION CONN. KIT FOR CI2 MODEL

XXXCI3CB50



Extension cable for CI3; 15 meter (50 feet)

XXXCI3CB100



Extension cable for CI3; 30 meter (100 feet)

CI HIGH TEMP EXTENSION CABLE FOR USE WITH ALL CI1, CI2, & CI3 UNITS (maximum ambient 260˚C, 500˚F)

XXXCIACCB50H



High temperature cable; 15 meter (50 feet) (260° C; 500° F)

XXXCIACCB100H



High temperature cable; 30 meter (100 feet) (260° C; 500° F)

MI3 Series Miniature Infrared Sensors

STANDARD MI3 SERIES LOW TEMPERATURE SENSING HEADS

RAYMI310LTS



 -40 to 600°C (-40 to 1112°F), 8 - 14 µm, 10:1, 130 msec, 1m cable

RAYMI320LTS



 0 to 1000°C (32 to 1832°F), 8 - 14 µm, 22:1, 130 msec, 1m cable

RAYMI302LTS



 -40 to 600°C (-40 to 1112°F), 8 - 14 µm, 2:1, 130 msec, 1m cable

FAST RESPONSE MI3 SERIES LOW TEMPERATURE SENSING HEADS

RAYMI310LTF



0 - 1000°C (32 - 1832°F), 8 - 14 µm, 10:1, 20 msec, 1m cable

5 MICRON SENSING HEADS FOR GLASS APPLICATIONS

RAYMI310G5S



250 to 1650°C, 5 µm, D:S 10:1, 130 msec, 1m cable

HIGH AMBIENT MI3 SERIES SENSING HEADS LOW TEMPERATURE SENSING HEADS

RAYMI310LTH



 -40 to 600°C, 8 to 14 µm, D:S 10:1, 130 msec, 1m cable

RAYMI320LTH



 0 to 1000°C, 8 to 14 µm, D:S 22:1, 130 msec, 1m cable





Raytek RAYMI310LTSCB8 Infrared Temperature Sensor with 8m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F)





Raytek RAYMI310LTSCB15 Infrared Temperature Sensor with 15m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F)





Raytek RAYMI310LTSCB3 Infrared Temperature Sensor with 3m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F)





Raytek RAYMI302LTSCB30 Infrared Temperature Sensor with 30m Cable, 2:1 Optics, -40 to 600°C (-40 to 1112°F)

XXXMI3CERT



Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)

SYSTEM EXPANSION ACCESSORIES

XXXMI3CONNBOX



Multi-channel sensor interface box for MI3 and MI3M series communications modules. Includes 8 sets of field wiring terminals wired in parallel to one 5 meter (16.4') cable to connect to MI3 or MI3M communications module.

XXXUSB485



USB to RS232/422/485 converter

RAYMI3COMMI



Installation of MI3 sensing head with MI3/MI3M communications box





MECHANICAL ACCESSORIES

XXXMIACMN



Sensing head mounting nuts - 5 pieces

XXXMIACFB



Sensing head fixed mounting bracket

XXXMIACAB



Sensing head adjustable mounting bracket

XXXMIACAJ



Air purge jacket (no cooling) - For use in ambient temperatures <200°C (<392°F).

XXXMIACAJI



Air purge jacket (no cooling) - installed, for MI3xxLTH only possible option - For use in ambient temperatures <200°C (<392°F).

XXXMIACCJ



Air cooling and purging system with .8m (2.8') insulated air hose.  For use in ambient temperatures <200°C (<392°F).  Not compatible with MI3LTH.

XXXMIACCJ1



Air cooling and purging system with 2.8m (9.2') insulated air hose.  For use in ambient temperatures <200°C (<392°F). Not compatible with MI3LTH.

XXXMIACRAJ1



Right angle mirror with air purging systems.  For use in ambient temperatures <200°C (<392°F).  Not compatible with MI3LTH.

XXXMIACRAJ



Right angle mirror for use with air cooling and purging systems.  For use in ambient temperatures <200°C (<392°F).  Not compatible with MI3LTH.

XXXMIACPW



Zinc Sulfide protective window for MI sensors.  Not for use with air purging or air cooling systems.

XXXMI3ACPWP



Polymer protective window for MI3 sensors.  Not for use with air purging or air cooling systems.

XXXMI3ACCFL



MI3 Close Focus Lens Accessory, 10mm focus distance. LT models only.

D82MIACAJ



Stainless steel air purge jacket (no cooling) - For use in ambient temperatures <200°C (<392°F)

XXXUSBCABLE



USB cable assembly, 4 COND, USB-A(M), USB-MINI-B(M), Shielded, 2M

MI3 1M, 2M  Series

STANDARD MI3 HIGH TEMPERATURE SENSING HEADS: 1M AND 2M SENSING HEADS ARE RATED FOR A MAXIMUM AMBIENT TEMPERATURE OF 120°C (<250°F)

RAYMI31001MSF1



 500 to 1,800°C (932 to 3,272°F), 1 µm, 100:1 D:S, 200mm Focus, 10 msec, 1m cable

RAYMI31001MSF3



 500 to 1,800°C (932 to 3,272°F), 1 µm, 100:1 D:S, 2,200mm Focus, 10 msec, 1m cable

RAYMI31002MSF1



 250 to 1,400°C (482 to 2,552°F), 1.6 µm, 100:1 D:S, 200mm Focus, 10 msec, 1m cable

RAYMI31002MSF3



 250 to 1,400°C (482 to 2,552°F), 1.6 µm, 100:1 D:S, 2,200mm Focus, 10 msec, 1m cable





1M and 2M sensing heads are rated for a maximum ambient temperature of 120°C (<250°F)





SYSTEM EXPANSION ACCESSORIES

XXXMI3CONNBOX



Multi-channel sensor interface box for MI3 and MI3M series communications modules. Includes 8 sets of field wiring terminals wired in parallel to one 5 meter (16.4') cable to connect to MI3 or MI3M communications module.

XXXUSBCABLE



USB cable assembly, 4 COND, USB-A(M), USB-MINI-B(M), Shielded, 2M

XXXUSB485



USB to RS232/422/485 converter

XXXSYSPS



24VDC power supply (100/240),1.3 amps





MECHANICAL ACCESSORIES

XXXMI3100MN



Stainless steel mounting nuts (2) -metric threads

XXXMI3100FB



Stainless Steel Fixed Bracket

XXXMI3100ADJB



Stainless Steel Adjustable Bracket

XXXMI3100AP



Metric Air Purge Collar

XXXMI3100RAM



Right Angle Mirror, metric thread

MI3 SERIES COMMUNICATIONS BOXES

RAYMI3COMM



MI3 series IR thermometer I/O box with USB 2.0 communications. Select the type of standard sensing heads listed above.

RAYMI3COMMI



MI3 series IR thermometer I/O box with USB 2.0 communications and sensing head installed. Select the type of standard sensing heads listed above and order as a separate line item.

RAYMI3COMM4



MI3 series IR thermometer I/O box with USB 2.0 and RS485communications. Select the type of standard sensing heads listed above. For use over long distance or multi-drop networks and requires use of Smart RS485 converter.

RAYMI3COMMM



MI3 series IR thermometer I/O box with USB 2.0 and Modbus network communications interface. Select the type of standard sensing heads listed above.

RAYMI3COMME



MI3 series IR thermometer I/O box with USB 2.0 and Ethernet network communications interface with installed M12 fieldbus connector and built-in HTTP-Server server . Select the type of standard sensing heads listed above.

RAYMI3COMMP2



MI3 series IR thermometer I/O box with USB 2.0 and Profibus network communications interface with installed 9 pin D-sub fieldbus connector. Select the type of standard sensing heads listed above.

RAYMI3COMMP1



MI3 series IR thermometer I/O box with USB 2.0 and Profibus network communications interface with installed M12 fieldbus connector. Select the type of standard sensing heads listed above.

RAYMI3COMMPN



MI3 series IR thermometer I/O box with USB 2.0 and Profinet network communications interface with installed M12 fieldbus connector. Select the type of standard sensing heads listed above.

MI3M SERIES MULTICHANNEL DIN MOUNT COMMUNICATIONS BOXES

RAYMI3MCOMMN



Modular 3TE DIN mountable 4-channel IR thermometer system with USB 2.0 communications (no user interface or display). Select the type and quantity (maximum of 4) of standard sensing heads listed above.

RAYMI3MCOMM



Modular 4TE DIN mountable 4-channel IR thermometer system with USB 2.0 and RS485 communications. Select the type and quantity (maximum of 4) of standard sensing heads listed above.

RAYMI3MCOMMA



Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and 4 galvanic isolated analog outputs. Select the type and quantity (maximum of 4) of standard sensing heads listed above.

RAYMI3MCOMMM



Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and Modbus network communications. Select the type and quantity (maximum of 4) of standard sensing heads listed above.

RAYMI3MCOMME



Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and Ethernet interface with built-in HTTP-Server. Select the type and quantity (maximum of 4) of standard sensing heads listed above.

RAYMI3MCOMMP



Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and Profibus network communications. Select the type and quantity (maximum of 4) of standard sensing heads listed above.

RAYMI3MCOMMPN



Modular 6TE DIN mountable 4-channel IR thermometer system with USB 2.0 and Profinet interface. Select the type and quantity (maximum of 4) of standard sensing heads listed above.

XXXETHLTCB



7.5m Ethernet Cable (CAT5, 70°C) with M12 plug to connect RAYMI3COMME

GPS Series Sensing Heads





Raytek RAYGPSSFL Standard Focus Infrared Temperature Sensor with Laser Sighting, 50:1 Optics





Raytek RAYGPSCFL Infrared Temperature Sensor, Close Focus, 35:1

XXXGPSCERT



Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST, certified w/ GPC display monitor (must be ordered as a separate line item)



ACCESSORIES

XXXGPSCB4



Spare GPS Sensor Cable - 4 meter length

XXXTXXACAP



Air purge collar

XXXTXXACCA



Conduit adapter

XXXTXXACPA



Pipe thread adaptor (Sighting Tubes listed below can be attached to this)

XXXTXXACMN



Mounting nut  (spare)

XXXTXXACFB



Fixed bracket  (spare)

XXXTXXACAB



Adjustable bracket  (spare)

XXXTXXACSB



Swivel bracket

XXXTXXACSV



Sighting viewer setup tool (for GPR & TX )

XXXTXXACRA



Right angle mirror (for targets at right angles to sensor axis)

XXXTSTC12



30 cm (12") sighting tube, ceramic (up to 1500°C)

XXXTST12



30 cm (12") sighting tube, stainless steel (up to 800°C)

XXXTXXACAFA



Adjustable Furnace Wall Mounting Assembly

XXXTXXACFA



Wall Mount Flange Assembly

98982-1



Replacment Laser Switch Box For GPS Sensor

FLOW REGULATORS: FOR USE WITH COOLING/PURGING OPTIONS AND ACCESSORIES

XXXTXXWR



Water flow regulator (water cooling)

XXXTXXAR



Air purging flow regulator assembly with air filter

XXXTXXCAFR



Cooling air flow regulator (high capacity)

GPC Series Monitor

RAYGPC



GPC panel-mount meter with standard 5 VDC alarm outputs

RAYGPCM



GPC panel-mount meter with 3 A mechanical alarm outputs





 GPC MONITOR ACCESSORIES

XXXGPSSRAC



10 A/ 24 - 330 VAC Solid State Relay for use with 5Vdc alarm outputs from GPC monitor only

XXXGPACFB



GPC mounting bracket for sub-panel mounting of monitor

Raytek Marathon MM

RAYMM-LTS-CF1/SF1/SF2/SF3/VF1



Low Temp: -40 to 800°C (-40 to 1472°F), 8 to 14 microns spectral response, 70:1 optical resolution

RAYMM-MTS-CF1/SF1/SF2/SF3/VF1



Medium Temp: 250 to 1100°C (482 to 2012°F), 3.9 micron spectral response, 70:1 optical resolution

RAYMM-G5L-CF1/SF1/SF2/SF3/VF1



Glass Surface: 250 to 1650°C (482 to 3002°F), 5.0 micron spectral response, 70:1 optical resolution

RAYMM-G5H-CF1/SF1/SF2/SF3/VF1



Glass Surface: 450 to 2250°C (842 to 4082°F), 5.0 micron spectral response, 70:1 optical resolution

RAYMM-G7S-CF1/SF1/SF2/SF3/VF1



Glass Surface: 300 to 900°C (572 to 1552°F), 7.9 micron spectral response, 100:1 optical resolution

MM CABLE

XXX2CCB4



High-temp (200°C) 12 wire 12 pin conductor cable with connector, 4m (13 ft.)

XXX2CCB8



High-temp (200°C) 12 wire 12 pin conductor cable with connector, 8m (26 ft.)

XXX2CCB15



High-temp (200°C) 12 wire 12 pin conductor cable with connector, 15m (50 ft.)

XXX2CCB30



High-temp (200°C) 12 wire 12 pin conductor cable with connector, 30m (100 ft.)

XXX2CCB60



High-temp (200°C) 12 wire 12 pin conductor cable with connector, 60m (200 ft.)

XXX2CLTCB4



Low-Temp (85°C) 12 wire 12 pin conductor cable with connector, 4m (13ft.)

XXX2CLTCB8



Low-Temp (85°C) 12 wire 12 pin conductor cable with connector, 8m (26ft.)

XXX2CLTCB15



Low-Temp (85°C) 12 wire 12 pin conductor cable with connector, 15m (50 ft.)

XXX2CLTCB30



Low-Temp (85°C) 12 wire 12 pin conductor cable with connector, 30m (100 ft.)

XXX2CLTCB60



Low-Temp (85°C) 12 wire 12 pin conductor cable with connector, 60m (200ft.)





An external terminal block is included with each cable.






THERMOJACKET: EXTRA RUGGED CAST METAL HOUSING FOR THERMAL, MECHANICAL, & ENVIRONMENTAL PROTECTION FOR MARATHON SENSORS, AND TX SENSORS.

RAYTXXTJ3



ThermoJacket housing for TX sensors

THERMOJACKET ACCESSORIES

XXXTXXMF



Mounting Flange for ThermoJacket

XXXTXXMB



Adjustable mounting base for ThermoJacket

XXXTXXGTQ



Blast Gate Assembly with Quartz Window (HT model)

XXXTXXGTA



Blast Gate Assembly with Amtir Window (LT, MT, G5, P7 models)

XXXTXXAPA



Adjustable Pipe Adapter assembly

XXXTXXMST



Mounting flange for use with sighting tubes

XXXTSTC12



30 cm (12") sighting tube, ceramic (up to 1500°C)

XXXTST12



30 cm (12") sighting tube, stainless steel (up to 800°C)

BEESIGHTT



30 cm (12") sighting tube, carbon steel with 45 degree end cut and slotted weep hole at base

FLOW REGULATORS: FOR USE WITH COOLING/PURGING OPTIONS AND ACCESSORIES

XXXTXXWR



Water flow regulator (water cooling)

XXXTXXAR



Air purging flow regulator assembly with air filter

XXXTXXCAFR



Cooling air flow regulator (high capacity)

 THERMOJACKET & ACCESSORIES

THERMOJACKET: EXTRA RUGGED CAST METAL HOUSING FOR THERMAL, MECHANICAL, & ENVIRONMENTAL PROTECTION FOR MARATHON SENSORS, AND TX SENSORS.

RAYTXXTJ3



ThermoJacket housing for TX sensors

RAYTXXTJ4



ThermoJacket housing for Marathon MM Sensors

RAYTXXTJ5



ThermoJacket housing for XR sensors

THERMOJACKET ACCESSORIES

XXXTXXMF



Mounting Flange for ThermoJacket

XXXTXXMB



Adjustable mounting base for ThermoJacket

XXXTXXGTQ



Blast Gate Assembly with Quartz Window (HT model)

XXXTXXGTA



Blast Gate Assembly with Amtir Window (LT, MT, G5, P7 models)

XXXTXXAPA



Adjustable Pipe Adapter assembly

XXXTXXMST



Mounting flange for use with sighting tubes

XXXTSTC12



30 cm (12") sighting tube, ceramic (up to 1500°C)

XXXTST12



30 cm (12") sighting tube, stainless steel (up to 800°C)

BEESIGHTT



30 cm (12") sighting tube, carbon steel with 45 degree end cut and slotted weep hole at base

XXX2CFT



Focus Adjustment Tool, for use when MR1S sensors are installed in a Thermojacket.

BF2TJEXTENDER



ThermoJacket Extension flange for CCD camera accessories mounted on MR Sensor in ThermoJacket

BD3TJBACK



ThermoJacket Rear cover with Peep-sight used for sighting Marathon models without removal

XXXGTQHTW



Replacement Quartz Window for Blast Gate Assembly

JNTHDKIT



Conversion Kit to install TX into existing Thermo-Jacket

JNTORINGKIT



5 complete O-ring sets for service of ThermoJackets

FLOW REGULATORS: FOR USE WITH COOLING/PURGING OPTIONS AND ACCESSORIES

XXXTXXWR



Water flow regulator (water cooling)

XXXTXXAR



Air purging flow regulator assembly with air filter

XXXTXXCAFR



Cooling air flow regulator (high capacity)

Raynger® 3i Plus

RAYR3IPLUS1ML



1 micron w/ Dual laser (EN60825 Class 2, FDA Class II)
DS 250:1, 700°C to 3000°C (1292 to 5432°F), Bluetooth 4.0, USB

RAYR3IPLUS1MSCL



1 micron w/ Dual laser (EN60825 Class 2, FDA Class II) + Scope
DS 250:1, 700°C to 3000°C (1292 to 5432°F), Bluetooth 4.0, USB

RAYR3IPLUS2ML



1.6 micron w/ Dual Laser (EN60825 Class 2, FDA Class II)
DS 250:1, 400°C to 2000°C (752 to 3632°F), Bluetooth 4.0, USB

RAYR3IPLUS2MSCL



1.6 micron w/ Dual Laser  (EN60825 Class 2, FDA Class II) + Scope,
DS 250:1, 400°C to 2000°C (752 to 3632°F), Bluetooth 4.0, USB

RAYR3IPLUSNBT1ML



1 micron w/ Dual laser (EN60825 Class 2, FDA Class II)
DS 250:1, 700°C to 3000°C (1292 to 5432°F), USB

RAYR3IPLUSNBT1MSCL



1 micron w/ Dual laser (EN60825 Class 2, FDA Class II) + Scope
DS 250:1, 700°C to 3000°C (1292 to 5432°F), USB

RAYR3IPLUSNBT2ML



1.6 micron w/ Dual Laser (EN60825 Class 2, FDA Class II)
DS 250:1, 400°C to 2000°C (752 to 3632°F), USB

RAYR3IPLUSNBT2MSCL



1.6 micron w/ Dual Laser  (EN60825 Class 2, FDA Class II) + Scope,
DS 250:1, 400°C to 2000°C (752 to 3632°F), , USB

3IPLUS Accessories

XXXR3IPLUSCC



Carrying case

XXXR3IPLUSSTRAP



Neck strap

XXXR3IPLUSACCU



Spare Lithium-ion rechargeable battery, 2.5 Ah

XXXR3IPLUSPS



Mini USB port adaptor with multi-country power plug





(100 – 240 VAC, 50/60 Hz), including SAA, EU, UK, US and CCC

XXXR3IPLUSPSCON



Mini USB-to-DC jack converter for charging battery separately

XXXR3IPLUSUSBCB



Computer cable with USB-to-Mini USB, 1.5 m (4.9 ft)

Raytek® MP150 Linescanner

RAYTMP150-LT



20 to 350°C (68 to 662°F), 3 to 5 µm

RAYTMP150-MT



100 to 800°C (212 to 1472°F),  3.9 microns

RAYTMP150-G5



100 to 950°C (212 to 1742°F),  5 microns

RAYTMP150-P30



30 to 250°C   (86 to 482°F),       3.43 microns

RAYTMP150-P31



100 to 350°C (212 to 662°F),    3.43 microns

RAYTMP150-1M



600 to 1200°C (1112 to 2192°F), 1 micron

RAYTMP150-2M



400 to 950°C (752 to 1742°F),    1.6 micron

RAYTMP150-HR



100 to 650°C (212 to 1202°F),    3.5 to 4 micron
HR scanners are purpose built for cement scanning applications and include an internal heater and special focus distance as standard equipment. They are not equipped with a High Pressure Air Purge (HPAP). As such the only available part number is RAYTMP150HRR1.

Comunication Option R



RJ-45: Scanner data link is configured to plug into any standard RJ45 Ethernet network socket

Data Point Option (0)



Standard configuration: 512 data points per scan line (up to 80Hz), 256 data points (80 to 150Hz)

Data Point Option (1)



Enhanced configuration: 1024 data points per scan line (up to 40Hz), 512 data points per scan line (40 to 80Hz), 256 data points (80 to 150Hz)

XXXTMP150CERT



Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)

MP150 INFRARED LINESCANNER ACCESSORIES

XXXHSFIC1



High Speed Fiber-Optic/RJ45 Converter (1 Channel)

XXXHSFIC4



High Speed Fiber-Optic/RJ45 Converter (4 Channel)

XXXHSFICBOX



BOX FOR FIBER OPTIC/RJ45 CONVERTER + PS

SVCOSSAPKG



On-site Start-up and Commissioning Service (North America Only)

XXXTMP50ACMP



Mounting Plate for setting on a Tripod

XXXTMP50ACRMB



Adjustable Rugged Mounting Base, includes scanner mounting plate

XXXTXXWR



Water Flow Regulator

XXXTMP50THERM



Thermostatic Control System

XXXTXXCAFR



Air Flow Regulator, high capacity, for purging window

XXXTMP50ACFG



Laser Enhancing Filter Eyeglasses for laser sighting

XXXTMP50SPSCB



Spare MP50 power cable, 180°C max.     7.5 meters (25 ft.) long

XXXTMP50SPSCB10



Spare MP50 power cable, 180°C max.     10 meters (33 ft.) long

XXXTMP150SPETHCB



Spare MP150 Ethernet cable, 180°C max. 7.5 meters (25 ft.) long

XXXTMP150SPETHCB10



Spare MP150 Ethernet cable, 180°C max. 10 meters (33 ft.) long

XXXTMP50S485CB



Spare MP50 RS485 Cable with RS232 converter,180°C max.   7.5 meters (25 ft.) long

XXXTMP50S485CB10



Spare MP50 RS485 Cable with RS232 converter,180°C max.   10 meters (33 ft.) long.

XXXTMP50S4PCN



Spare MP50 4-pin connector

XXXTMP50S6PCN



Spare MP50 6-pin connector

XXXTMP50AC485CV



Spare RS485 converter for MP50 (no cable)

XXXSYS485CV



RS232/RS485 Converter (required for Output Modules).

XXXSYSPS



24VDC power supply (100/240),1.3 amps

XXXUSB485



USB to RS232/422/485 converter

XXXTMP150ACSWK1M



SPARE WINDOW FOR MP1501M

XXXTMP150ACSWK2M



SPARE WINDOW FOR MP1502M

XXXTMP150ACSWKG5



SPARE WINDOW FOR MP150G5

XXXTMP150ACSWKHR



SPARE WINDOW FOR MP150HR

XXXTMP150ACSWKLT



SPARE WINDOW FOR MP150LT

XXXTMP150ACSWKMT



SPARE WINDOW FOR MP150MT

XXXTMP150ACSWKP3



SPARE WINDOW FOR MP150P3

XXXTMP150FSNPT



NPT Fitting Set

XXXTMP150FSISO



ISO Fitting Set

XXXTMP150ACCC



Carrying case

High Temp Enclosure

XXXSYSENC



Enclosure & Base
Stainless steel enclosure with mounting base and integrated fail-safe shutter, includes grommet plates for wiring and cooling water (if req'd) and mounting aperture for high performance vortex cooler

XXXSYSENCICP



Internal Cold-Plates
Internal cold plates designed to cool scanner directly, Eliminates the need to disconnect plumbing fittings to remove scanner, supplied pre-connected with high temperature hoses - supplied as set of two.

SYSENCVT



High Performance Vortex Cooler
Separates compressed air (or nitrogen) into hot and cold streams to actively cool enclosure interior

XXXSYSENCWCS



Water Cooled Shield
Stainless steel high performance water shield. One inch water inlet and outlet permit high flow rates and extremely high heat removal capability.

XXXSYSENCIS



Insulating Shield
A custom stainless steel envelope filled with high performacne refractory material. Placed closest to the process, it prevents heat form entering the enclosure and lessens the heat removal requirements of other elements.

 TF150 Process Imaging System for Thermoforming

RAYTTF150-LT



TF150 System with MP150LT 20 to 350°C   (68 to 572°F),  3 to 5 microns

RAYTTF150-MT



TF150 System with MP150MT, 100 to 800°C (212 to 1472°F),  3.9 microns

RAYTTF150-P30



TF150 System with MP150P30,  30 to 250°C   (86 to 482°F),  3.43 microns

RAYTTF150-31



TF150 System with MP150P31, 100 to 350°C (212 to 662°F),  3.43 microns

OPTION FOR TF150

XXXTMP150CERT



Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)

XXXTMP50ACRMB



Adjustable Rugged Mounting Base (includes scanner mounting plate)

XXXHSFIC1



High Speed Fiber-Optic/RJ45 Converter (1 Channel)

XXXHSFIC2



High Speed Fiber-Optic/RJ45 Converter (4 Channel)

XXXHSFICBOX



Housing, Fiber optic/RJ-45 converter and power supply

SVCOSSAPKG



On-site Start-up and Commissioning Service (North America Only)



GS150/GS150LE Process Imaging System for Glass Processing

RAYTGS150G5R1



specifies a Glass System with a low temperature 5µm linesscanner with RJ-45 type cable and 1024 maxmum data points per scan line.

RAYTGS150G5R0



specifies a Glass System with a low temperature 5µm linesscanner with RJ-45 type cable and 1024 maxmum data points per scan line.

UPGRADES





RAYTGS150LEUPGRADE



The GS150LE system was developed specifically to monitor glass which has been coated on one side with a low-emissivity coating.  Includes specialized MI3 sensor and GS150LE software, air-purge jacket, PC connection Kit

OPTIONS





XXXTMP150CERT



Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)

XXXTMP50ACRMB



Adjustable Rugged Mounting Base (includes scanner mounting plate)













XXXHSFIC1



High Speed Fiber-Optic/RJ45 Converter (1 Channel)

XXXHSFIC2



High Speed Fiber-Optic/RJ45 Converter (4 Channel)

XXXHSFICBOX



Housing, Fiber optic/RJ-45 converter and power supply

SVCOSSAPKG



On-site Start-up and Commissioning Service (North America Only)

ES150 Process Imaging System for Film and Flat Sheet Extrusion or Continuous Web Processes

RAYTES150-LT



 ES150 System with MP150LT 20 to 350°C   (68 to 572°F),  3 to 5 microns

RAYTES150-MT



 ES150 System with MP150MT, 100 to 800°C (212 to 1472°F),  3.9 microns

RAYTES150-G5



 ES150 System with MP150G5, 100 to 950°C (212 to 1742°F),  5 microns

RAYTES150-P30



 ES150 System with MP150P30,  30 to 250°C   (86 to 482°F),  3.43 microns

RAYTES150-P31



 ES150 System with MP150P31, 100 to 350°C (212 to 662°F),  3.43 microns

RAYTES150-1M



 ES150 System with MP1501M, 600 to 1200°C (1112 to 2192°F), 1 micron

RAYTES150-2M



 ES150 System with MP1502M, 400 to 950°C (752 to 1742°F),    1.6 micron

OPTIONS





XXXTMP150CERT



Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)

XXXTMP50ACRMB



Adjustable Rugged Mounting Base (includes scanner mounting plate)

XXXHSFIC1



High Speed Fiber-Optic/RJ45 Converter (1 Channel)

XXXHSFIC2



High Speed Fiber-Optic/RJ45 Converter (4 Channel)

XXXHSFICBOX



Housing, Fiber optic/RJ-45 converter and power supply

SVCOSSAPKG



On-site Start-up and Commissioning Service (North America Only)

EC150 Process Imaging System for Film and Flat Sheet Extrusion or Continuous Web Processes

RAYTEC150-P30-R



 EC150 System with MP150P30,  30 to 250°C   (86 to 482°F),  3.43 microns

RAYTEC150-P31-R



 EC150 System with MP150P31, 100 to 350°C (212 to 662°F),  3.43 microns

OPTIONS





XXXTMP150CERT



Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)

XXXTMP50ACRMB



Adjustable Rugged Mounting Base (includes scanner mounting plate)

XXXHSFIC1



High Speed Fiber-Optic/RJ45 Converter (1 Channel)

XXXHSFIC2



High Speed Fiber-Optic/RJ45 Converter (4 Channel)

XXXHSFICBOX



Housing, Fiber optic/RJ-45 converter and power supply

SVCOSSAPKG



On-site Start-up and Commissioning Service (North America Only)

CS210 Infrared Linescanning System for Rotary Kilns

RAYTCS211R1



CS211 Rotating Kiln System (Single Scanner)
Linescanner MP150HR
Protective Housing XXXSYSPHSS, stainless steel
Position Indicator with junction box (XXXSYSSECPI)
System Connection Box (field) CS210CONBOX
Fibre Optic Converter Housing XXXHSFICBOX (control room
DataTemp CS Software
Documentation

RAYTCS212R1



CS212 Rotating Kiln System (Dual Scanner)
2 Protective Housings XXXSYSPHSS, stainless steel
Position indicator with junction box (XXXSYSSECPI)
2 System Connection Boxes (field) CS210CONBOX
Fibre Optic Converter Housing XXXHSFICBOX (control room)
DataTemp CS Software
Documentation

RAYTCS213R1



CS213 Rotating Kiln System (Triple Scanner)
3 Linescanners MP150HR
3 Protective Housings XXXSYSPHSS, stainless steel
Position indicator with junction box (XXXSYSSECPI)
3 System Connection Boxes (field) CS210CONBOX
Fibre Optic Converter Housing XXXHSFICBOX (control room)
DataTemp CS Software
Documentation

RAYTCS214R1



CS214 Rotating Kiln System (Quad Scanner)
4 Linescanners MP150HR
4 Protective Housings XXXSYSPHSS, stainless steel
Position indicator with junction box (XXXSYSSECPI)
4 System Connection Boxes (field) CS210CONBOX
Fibre Optic Converter Housing XXXHSFICBOX (control room)
DataTemp CS Software
Documentation

RAYCS210EXT



CS21x Extension  KIT
Maximum Extension up to a four Scanner System
1 Scanner RAYTMP150HRR1
1 Stainless Steel protective housing incl. Mounting Base XXXSYSPHSS
1 System Connection Box XXXCS210CONBOX
Scanner Cable Set LT
New License file (Serial number from all existing scanners needed with P.O.)











ACCESSORIES

XXXSYSCS210CON



Serial Ethernet Converter





Please note: Always necessary to connect with following components:XXXTCSLRM210, FAN Control Hardware, XXXTCS200BZ and XXXTCS200SM

XXXCS210CONBOX



CS210CONBOX,CS210 SYSTEM CONNECTION BOX

XXXCS210ENCON



Endurance Connection Box

XXXSYS16DA*



RS485 Remote Controller with 16 Digital-Outputs

XXXSYS7RA



7-Channel Relays Output Modul

XXXTCS210BZ



Burning Zone Monitoring: Endurance Connection Box
Endurance Ratio Pyrometer, 600 to 1800°C
15 m High Temperature Cable
ThermoJacket Housing for E-TJ1
Blast Gate Assembly with Quartz Window
30 cm sighting tube, stainless steel
Adjustable Pipe Adapter assembly
Adjustable Mounting Base for Thermojacket
Air Flow/Pressure Regulator Assembly

XXXTCS200SM



Shadow Monitoring: consists of MI Connection Box, MIH Sensor  -40 to 600°C, 8 m high temperature cable,  Air Purge Jacket, stainless steel, Adjustable Mounting Bracket.

XXXTCSLRM210



Live Ring Migration for CS210 System, complete with LRM Remote Controller & 3 position indicators

XXXSYSLDM



Laser distance meter

XXXPi20FO1



Fiber Optic Cable 150 m

XXXPi20FO2



Fiber Optic Cable 300 m

SVCOSSAPKG



On-site Start-up and Commissioning Service (Item # 2509605/North America only)

XXXSYS4AA



Analog Output Module (4 channels, mA or V)

XXXSYS485CV



RS232/RS485 Converter (required for Output Modules)











CS100/200 UPGRADES to CS210

XXXCS210BUPGRADE



Basic Upgrade to CS Software. This is not a full upgrade to the level of CS210
Not all functions of CS210 Upgrade are supported.
No new wiring of system needed.

XXXCS211BUPGRADE



CS101 to CS211 (1 scanner system)
Basic System Upgrade without new Scanner.
This upgrades requires the use of the MP150 line scanner to utilize all funcitonality.
Will work with MP50 (older generation) but not all features will be available
New wiring of system needed.

XXXCS212BUPGRADE



CS102  to  CS212 (2 scanner system)
Basic System Upgrade without new Scanner.
This upgrades requires the use of the MP150 line scanner to utilize all funcitonality.
Will work with MP50 (older generation) but not all features will be available
New wiring of system needed.

RAYCS211FUPGRADE



Full System Upgrade (1 scanner system) with new Scanner MP150.
New wiring of system needed.
Accessories analogous to a new CS211 system.

RAYCS212FUPGRADE



Full System Upgrade (2 scanner system) with new Scanner MP150.
New wiring of system needed.
Accessories analogous to a new CS212 system.

CS210 Infrared Linescanning System for Rotary Kilns Upgrades & Accessories

XXXTCS3D210



3D View Software Upgrade for existing CS210 systems

XXXTCSRFM210



Refractory Management Software (incl. 3D Software) Upgrade for existing CS210 Systems

XXXCS210CONBOX



CS210 System Connection Box

XXXCS210ENCON



Endurance Connection Box

E1RL-F2-L-0-0



Endurance Ratio Pyrometer, 600 to 1800°C

A-CB-HT-M16-W12-15



15 m High Temperature Cable, 200°C

A-TJ-EN



ThermoJacket Housing for Endurance

XXXTXXGTQ



Blast Gate Assembly with Quartz Window (HT models)

XXXTST12



30 cm sighting tube, stainless steel

XXXTXXAPA



Adjustable Pipe Adapter assembly

XXXTXXMB



Adjustable Mounting Base for Thermojacket

XXXTXXAR



Air Flow/Pressure Regulator Assembly

XXXSYSCS200MICON



MI Connection Box (necessary for MIH Sensor)

RAYMI310LTHCB8



MI3 Sensor, -40 to 600°C, 8 to 14 µm, D:S 10:1, 130 ms, 8 m cable

D82MIACAJ



Air Purge Jacket, stainless steel

XXXMIACAB



Adjustable Mounting Bracket

RAYTMP150HRR1



Kiln Scanner RAYTMP150HRR1

XXXSYSPS1



Industrial Power Supply Extra 240VAC/24VDC/2,5A

XXXSYSPHSS



Stainless Steel Protective Housing

XXXSYSECPI



Position Indicator

XXXSYSPHSW



Protective Window For SYSPHSS

XXXHSFIC4



High Speed Fiber-Optic/RJ45 Converter (4 canals)

XXXSYSCONNBOXHEAT



Heater System

XXXTMP150FSNPT



NPT Fitting Set

XXXTMP150FSISO



ISO Fitting Set

XXXTCSLRMMCONNBOX



LRM Remote Control box

MP150 SYSTEM ACCESSORIES - ES150, EC150, TF150 and GS150

RAYSYSSOFTWARE



MP150 systemsoftware DTDP

XXXSYSPS



Ind. Power Supply Standard 100VAC to 240VAC/24VDC/1.3A for DIN rail mounting

XXXSYSPS1



Industrial Power Supply 100VAC to 240VAC/24VDC/2.5A for DIN rail mounting

XXXETHBASICKIT



Basic Kit for Output Adding

XXXETH16DI



16-Channel Digital Input

XXXETH16DO



16-Channel Digital Output

XXXETH2AISO



Passive Current Isolator

XXXETH2AOC0



Analog Output Module 0-20 mA (2 each)

XXXETH2AOC4



Analog Output Module 4-20 mA (2 each)

XXETH2AOV



Analog Voltage Output Module

XXXETH2R



Output Relay (2 each)
