ONICON FT-3204-11511-1021-101

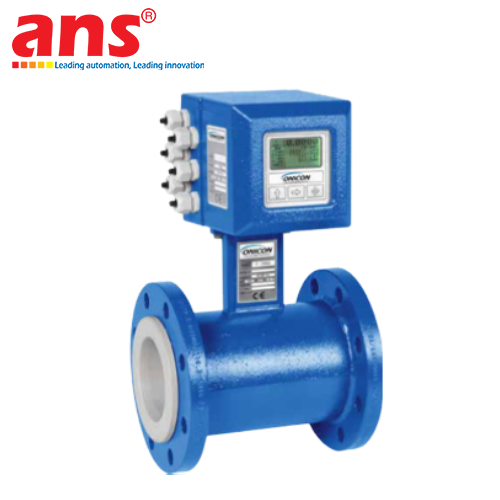

Introduction: The ONICON FT-3204-11511-1021-101 Inline Electromagnetic Flow Meter is a premium high-tier industrial fluid diagnostics instrument belonging to the world-renowned FT-3200 / FT-3000 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Utilizing Faraday's Law of Electromagnetic Induction to determine fluid velocities, this sophisticated device features a completely unobstructed internal flow tube that profiles absolutely no moving mechanical parts. The FT-3204 completely eliminates pipeline pressure drop overheads, prevents particulate clogging or debris accumulation hazards, and delivers outstanding operational longevity under continuous manufacturing runtimes.

The structural and electronic layout of the FT-3204-11511-1021-101 variant stands out due to its factory pre-configured design architecture. This strategic setup minimizes on-site commissioning adjustments, vastly simplifying the mechanical integration timeline and allowing immediate plug-and-play functionality once installed in the pipeline matrix. It handles continuous process media temperatures spanning between -20°C and +80°C alongside an intensive operating pressure envelope up to 16 bar, maintaining an extreme system accuracy rating pinned between ±0.2% and ±0.5% of reading. Built to interface natively with modern connected smart building frameworks and digital factory floors, the meter provides concurrent linear analog 4-20mA loops and high-fidelity Pulse outputs, tightly synchronized with integrated network protocols including Modbus RTU and BACnet MS/TP for zero-latency communication back to supervisory Building Management Systems (BMS) and industrial PLC/SCADA telemetry nodes.

⚠️ CRITICAL TECHNICAL OPERATIONAL PROMPT:

Fluid Media Prerequisites: Because this instrument relies entirely on electromagnetic fields to execute measurements, it functions strictly with conductive liquids. It is completely incompatible with demineralized/pure distilled water, non-conductive chemical oils, or petroleum-based fluids.
Hydraulic Alignment Profile: To guarantee the audited ±0.2% to ±0.5% calibration threshold, the host pipeline must maintain a continuous full-pipe state at the sensing location, backed by standard upstream and downstream straight piping runs to dissipate fluid swirls or cavitation profiles.

Key Features & Technical Specifications:

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-3200 / FT-3000 Series Inline Electromagnetic Flow Meters Portfolio
Full Manufacturing Model Code: FT-3204-11511-1021-101
Measurement Principle: Electromagnetic (Mag-meter technology) – delivers a non-intrusive flow path ensuring absolute zero pressure drop overheads.
System Accuracy Standard: Achieves an elite margin of ±0.2% to ±0.5% of active reading based on specific velocity parameters.
Signal Output Interface: Simultaneous integrated 4-20mA analog loop and discrete Pulse channel.
Integrated Fieldbus Architecture: Pre-loaded with native Modbus RTU and BACnet MS/TP communication protocols for direct BMS integration.
Driving Utility Power: 24 VAC / VDC nominal industrial electrical input tolerance.
Physical Process Thresholds: Tolerates fluid media temperatures ranging from -20°C to +80°C; manages high-pressure lines up to a maximum of 16 bar.
Material Composition Hardening: Forged with heavy-walled Stainless Steel or high-durability Epoxy-coated Carbon Steel body frameworks.
Pipe Diameter Adaptability: Extends broad dimensional capability across nominal sizes ranging from DN15 to DN600 (subject to chosen ordering matrix parameters).
Mechanical Mounting Layout: Inline integration (spliced directly in-line via standardized flanged or threaded mechanical layouts).
Country of Origin: 100% Made in the United States.
