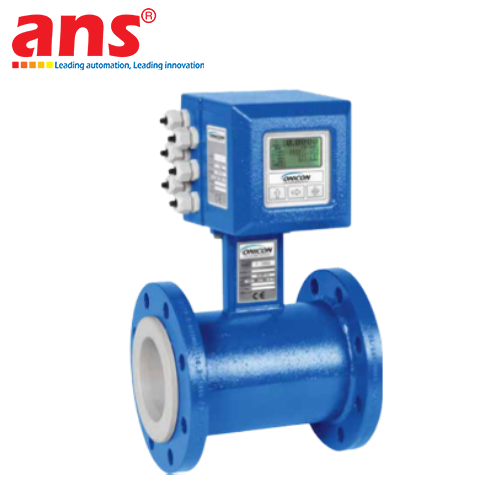

ONICON FT-3210-11511-1021-1 Inline Electromagnetic Flow Meter

Price: Contact

Brand: ONICON

Category: Thiết bị đo lường & Kiểm tra

Supplier: AnhNghiSon

Origin: USA

Gọi lại cho tôi

Contact consultant

Hotline

support@ansgroup.asia

0911472255

ONICON FT-3210-11511-1021-1

Introduction: The ONICON FT-3210-11511-1021-1 Inline Electromagnetic Flow Meter is a premium process-grade fluid diagnostics instrument belonging to the high-efficiency FT-3000 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Utilizing Faraday's Law of Electromagnetic Induction to determine deterministic fluid velocities, this sophisticated meter features a completely unobstructed internal flow path that contains absolutely no moving mechanical parts. This non-intrusive layout completely bypasses pipeline pressure drop overheads, eliminates the risk of particulate clogging or debris accumulation, and ensures continuous plant operation with minimal long-term maintenance overheads.

The structural and electronic layout of the FT-3210-11511-1021-1 variant stands out due to its factory pre-configured design architecture and individual wet-calibration testing on precision factory flow loops prior to dispatch. This process guarantees an elite out-of-the-box system accuracy rating spanning between ±0.2% and ±0.4% of active reading. Hardened for challenging installation environments, the electronics are housed inside an IP67-rated weather-proof enclosure, offering complete barrier immunity against airborne dust infiltration and temporary external moisture submersion. Built to interface natively with modern connected smart building frameworks and digital factory floors, the meter provides concurrent linear analog 4-20mA loops, a discrete Digital Output, and a high-fidelity programmable Pulse Output, tightly synchronized with integrated network protocols including BACnet and Modbus for zero-latency communication back to supervisory BMS and industrial SCADA telemetry nodes.

⚠️ CRITICAL TECHNICAL OPERATIONAL PROMPT:

  • Fluid Media Prerequisites: Because this instrument operates on electromagnetic induction principles, it requires conductive liquids to function. It is natively optimized for water networks but remains completely incompatible with non-conductive media such as demineralized/distilled pure water, chemical oils, or petroleum-based fluids.

  • Hydraulic Alignment Profile: To preserve the factory-certified ±0.2% to ±0.4% calibration threshold, the meter must be positioned in a location that guarantees a continuous full-pipe state, supported by standard upstream and downstream straight pipe runs to dissipate fluid swirls or cavitation profiles.

Key Features & Technical Specifications:

  • Manufacturer: ONICON Incorporated (United States)

  • Product Series: FT-3000 Series Inline Electromagnetic Flow Meters Portfolio

  • Full Manufacturing Model Code: FT-3210-11511-1021-1

  • Measurement Principle: Electromagnetic (Mag-meter technology) – delivers a non-intrusive flow path ensuring absolute zero pressure drop overheads.

  • System Accuracy Standard: Achieves an elite margin of ±0.2% to ±0.4% of active reading across standard flow velocities.

  • Signal Output Interface Array: * 1 x Analog 4-20mA loop (proportional to fluid velocity).

    • 1 x Discrete Digital Output channel.

    • 1 x High-fidelity programmable Pulse Output (optimized for totalization metrics).

  • Integrated Fieldbus Architecture: Pre-loaded with native BACnet and Modbus communication protocols for direct automation integration.

  • Driving Utility Power: 24 VDC or 24 VAC nominal industrial electrical input tolerance (subject to wiring configuration choice).

  • Physical Process Thresholds: Tolerates fluid media temperatures up to approximately 120°C; manages high-pressure lines up to a maximum of 16 bar.

  • Environmental Ingress Hardening: Rated to IP67 standards (completely dust-proof and safe against heavy water streams or temporary submersion environments).

  • Calibration Verification Metric: Wet-calibrated and pre-configured at the factory to guarantee exceptional data fidelity.

  • Mechanical Mounting Layout: Inline integration (spliced directly in-line via standardized flanged or threaded mechanical connections).

  • Country of Origin: 100% Made in the United States.
