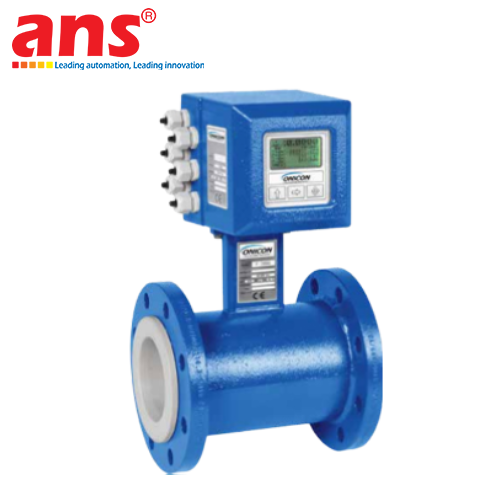

ONICON FT-3210-11511-1021-101

Introduction: The ONICON FT-3210-11511-1021-101 Inline Flow Meter is an elite, industrial-grade fluid diagnostics instrument belonging to the world-renowned FT-3200 / FT-3000 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within high-tier smart building infrastructures, industrial manufacturing skids, and expansive central chilled water networks, capturing highly precise, deterministic fluid flow rates is a critical factor in computing real-time thermal energy consumption (BTU/kW metrics), optimizing central Chiller plant staging efficiency, and driving down long-term utility overheads for enterprises.

The architectural layout of the FT-3210-11511-1021-101 variant features a specialized inline body profile (Inline Mounting). By splicing directly into the host fluid channel, it forces the fluid stream across the sensor element in a highly uniform, repeatable vector to achieve supreme measuring accuracy. This hardened instrument natively handles an extended array of building service loops, ranging from complex chilled water distributions and hydronic space heating lines to turbulent open cooling tower loops. Powered seamlessly by a standard 24 VAC/VDC utility target, the device provides a dual simultaneous output matrix featuring both a linear analog 4-20mA loop and a high-fidelity Pulse Output, enabling flawless, zero-latency system interlocking into modern programmable logic controllers (PLCs), centralized Building Management Systems (BMS), or enterprise-wide SCADA monitoring nodes.

⚠️ TECHNICAL INSTALLATION & SYSTEM INTEGRATION PROMPT:

Physical Alignment Guidelines: Because this model utilizes a rigid inline connection footprint, field engineering teams must carefully verify exact piping outer dimensions on-site. Adhere strictly to the manufacturer's specified upstream and downstream straight pipe run requirements to isolate the sensing cavity from fluid swirl or cavitation profiles, ensuring the highest data resolution.
Signal Output Logic: The 4-20mA analog channel is ideally calibrated to track instantaneous flow velocity (Flow Rate data loops), while the integrated Pulse channel is optimized to push volumetric increment clicks to controller totalizer modules.

Key Features & Technical Specifications:

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-3200 / FT-3000 Series Inline Fluid Instrumentation Portfolio
Full Manufacturing Part Code: FT-3210-11511-1021-101
Device Type: High-Precision Inline Fluid Flow Meter / Flow Sensor Assembly
Fluid Media Compatibility: HVAC Chilled Water, hydronic heating water, condenser cooling water loops, and clean industrial process fluid networks.
Dual Output Architecture: * Analog Output Loop: 1 x 4-20mA channel (linearized to active flow velocity).
- Discrete Pulse Output: 1 x scalable pulse contact (optimized for flow totalization tracking).
Driving Utility Input: 24 VAC / VDC nominal industrial input tolerance.
Automation Interlocking Capacity: Connects natively with modern smart BMS architectures, decentralized PLC input cards, and industrial SCADA master networks.
Mechanical Integration Footprint: Inline execution (mounts directly in-line with the processed liquid pipeline configuration).
Country of Origin: 100% Made in the United States.
