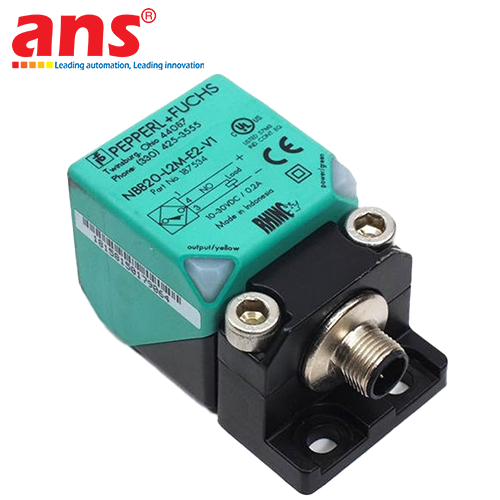

Pepperl+Fuchs NBB20-L2M-E2-V1

Introduction:

The Pepperl+Fuchs NBB20-L2M-E2-V1 Inductive Proximity Sensor is a premium industrial automation sensing component engineered and manufactured to rigorous international standards across certified Pepperl+Fuchs global facilities (EU/China). Utilizing the advanced physics of electromagnetic field variation, this sensor flawlessly tracks and reports the presence of metallic targets (ferrous metals like iron and steel) without any physical touch. This non-contact logic completely eliminates mechanical friction or component wear, maximizing operational service lifespans across integrated heavy systems.

Belonging to the unique VariKont L rectangular housing family and featuring a robust metal base configuration (indicated by the "M" designation), the NBB20-L2M-E2-V1 variant delivers a long rated operating distance of 20 mm with a flush-mountable layout. The smart sensor head features a multi-turn flexible orientation system, allowing field technicians to easily rotate and lock the active sensing face into multiple spatial directions to optimize incoming target mechanical profiles.Configured with a standard PNP Normally Open (NO) switching output paired with an industry-standard M12 4-pin quick disconnect plug connector, it streamlines control cabinet signal integration while providing outstanding resistance to severe impact, oil splashes, and plant particulate contamination.

Key Features & Technical Specifications:

Manufacturer: Pepperl+Fuchs (P+F)
Product Series: VariKont L Square Industrial Series
Model Code: NBB20-L2M-E2-V1
Device Type: Inductive Proximity Sensor / Proximity Switch
Rated Operating Distance ($s_n$): 20 mm.
Installation Typology: Flush mountable (Shielded).
Output Switching Configuration: PNP - Normally Open (NO).
Operating Voltage Margin: $10 \dots 30\text{ V}$ DC.
Electrical Interface Connection: Standard M12 plug connector, 4-pin matrix deployment.
Industrial Build Quality: Hybrid heavy-duty architecture consisting of a tough plastic sensor face combined with a solid die-cast metal base to absorb physical shock under premium ingress protection ratings.
Country of Origin: 100% Made in EU / China.
