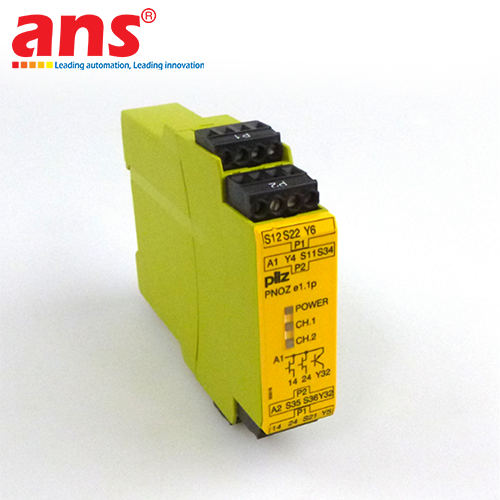

Pilz PNOZ e1.1p 24VDC 2so (774133)

Introduction: The Pilz PNOZ e1.1p Industrial Safety Relay (Order Code: 774133) is a premium electronic circuit monitoring module engineered and manufactured 100% in Europe by Pilz—the global pioneer in automated machinery safety technology. Belonging to the innovative PNOZelog family, this high-performance module blends the logical strictness of conventional mechanical relays with cutting-edge electronic semiconductor layouts, delivering wear-free switching cycles, an virtually unlimited service lifespan, and highly comprehensive internal self-diagnostic routines.

Operating on a standard 24VDC power infrastructure, the device is configured with 2 solid-state safety outputs (2so). By switching current paths electronically rather than via moving armature contacts, it completely prevents electrical arcing or contact welding risks while standing entirely immune to aggressive physical floor vibrations. Certified to meet the absolute pinnacle of international functional safety criteria—including Performance Level e (Category 4) and SIL 3—the Pilz 774133 acts as an indispensable control block for evaluating dual-channel E-stop links, interlocking guard doors, and light curtains across modern automated robotic cells and high-speed stamping arrays.

Key Features & Technical Specifications:

Manufacturer: Pilz (Germany / Europe)
Product Series: PNOZelog Series (Electronic Safety Relays)
Model Code: PNOZ e1.1p 24VDC 2so
Part Number (PN): 774133
Device Type: Solid-state Electronic Safety Relay / Monitoring Module
Supply Voltage Margin: 24V DC.
Output Configuration Matrix: 2 safe semiconductor outputs (2so) ensuring zero mechanical degradation.
Diagnostic Features: Comprehensive integrated diagnostic LED array reporting channel status, logic supply, and internal fault conditions for rapid field debugging.
Safety Integration Levels: Certified up to PL e (EN ISO 13849-1) and SIL CL 3 (EN IEC 62061) safety architectures.
Form Factor: Compact slimline housing designed for quick, high-density DIN-rail execution inside electrical sub-panels.
Country of Origin: 100% Made in Europe (EU Origin).
