BETA Vietnam, Pressure Sensor W3-P408M-S2N-S2-G1-J BETA

100% EU
 Origin

BETA Vietnam

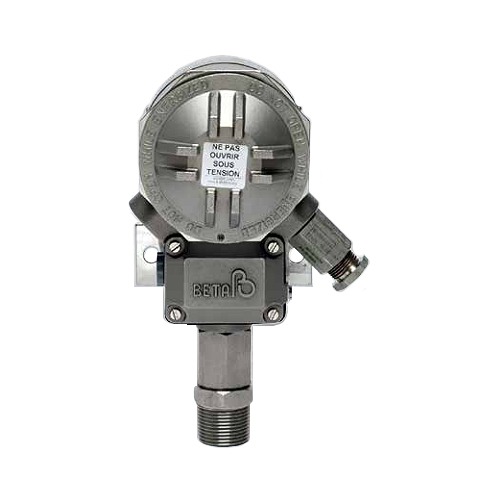

Code: W3-P408M-S2N-S2-G1-J Pressure Sensor
 Description: Pressure Switch / Druckwächter
 Housing: Alu, ATEX Ex d IIC T6..T5, IP65,
 Electrical connection 3/4' NPT
 Adjustment range: 150 - 5400 mbar
 Max. Operating pressure: 125 bar
 Connection: NPT 1/2' inside, 316 SS
 Diaphragm / O-ring: stainless steel / Viton-A
 Microswitch: VAC 125/1 VDC 28 / 0,5
 for low voltage with gold contacts
 J = Chinch Jones connections
 Switching point bar falling/rising is factory set and documented via paper tag on switch.

100% EU
 Origin

BETA Vietnam

Code: C3-P406M-S2N-S2-G1-J Pressure Sensor
 Description: Pressure switch / Druckwächter
 Housing: aluminium, IP66, electrical connection 3/4' NPT-F
 Setting range: 120 - 2300 mbar
 Max. working pressure: 125 bar
 Connection: NPT 1/2' female, 316 SS
 Diaphragm/O-ring: stainless steel/Viton-A
 Microswitch: VAC 125/1 VDC 28/0.5
 for low voltage with gold contacts
 'J=Chinch Jones connections'
 By request:
 Switching point bar falling/rising set at the factory and documented on a paper tag on the switch.

100% EU
 Origin

BETA Vietnam

Code: W3-P506H-S2N-S2-G1-J Pressure Sensor
 Description: Pressure switch / Druckwächter
 Housing: aluminium, ATEX Ex d IIC T6..T5,
 IP65, electrical connection 3/4' NPT
 Setting range: 0.5 - 9.0 bar
 Max. working pressure: 200 bar
 Connection: NPT 1/2' female, 316 SS
 Diaphragm/O-ring: stainless steel/Viton-A
 Microswitch: VAC 125/1 VDC 28/0.5
 for low voltage with gold contacts
 'J=Chinch Jones connections'
 By request:
 Switching point bar falling/rising set at the factory and documented on a paper tag on the switch.

100% EU
 Origin

BETA Vietnam

Code: C3-P808H-S2N-S2-G1-J Pressure Sensor
 Description: Pressure switch / Druckwächter
 Housing: aluminium, IP66, electrical connection 3/4' NPT-F
 Setting range: 4.0 - 170 bar
 Max. working pressure: 200 bar
 Connection: NPT 1/2' female, 316 SS
 Diaphragm/O-ring: stainless steel/Viton-A
 Microswitch: VAC 125/1 VDC 28/0.5
 for low voltage with gold contacts
 'J=Chinch Jones connections'
 By request:
 Switching point bar falling/rising set at the factory and documented on a paper tag on the switch.
