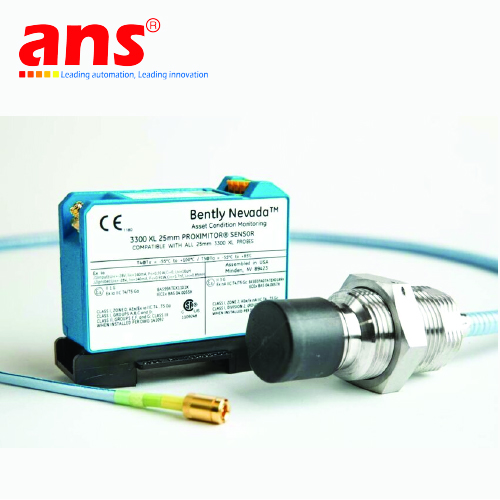

Proximity Transducer 330709-000-060-10-02-00 Bently Nevada
Price: Contact
Brand: Bently Nevada
Category: Transducers
Supplier: ansvietnam
Origin: USA
0911472255Proximity Transducer 330709-000-060-10-02-00 Bently Nevada
Transducer System
The 3300 XL 11 mm Proximity Transducer System consists of:
- 3300 XL 11 mm probe
- 3300 XL 11 mm extension cable
- 3300 XL 11 mm Proximitor Sensor¹
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100mv / m * il) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
- Axial (thrust) position measurements
- Ramp differential expansion measurements on steam turbines
- Rod position or rod drop measurements on reciprocating compressors
- Tachometer and zero speed measurements
- Phase reference (Keyphasor) signals
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.
| 1 | 100% USA/ China Origin |
Bently Nevada Vietnam |
Model: 330106-05-30-05-02-CN Bently Nevada 3300 XL 8 mm Reverse Mount Probes |
|
| 2 | 100% USA/ China Origin |
Bently Nevada Vietnam |
Model: 330709-000-060-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Probes |
|
| 3 | 100% USA/ China Origin |
Bently Nevada Vietnam |
Model: 330780-50-00 Proximity Sensor |
|
| 4 | 100% USA/ China Origin |
Bently Nevada Vietnam |
Model: 330851-02-000-060-50-00-CN Bently Nevada Proximity Probes |
|
| 5 | 100% USA/ China Origin |
Bently Nevada Vietnam |
Model: 330850-50-CN Bently Nevada Proximity Sensor |
|
| 6 | 100% USA/ China Origin |
Bently Nevada Vietnam |
Model: 330103-00-06-10-02-00 Bently Nevada Proximity Probes |
|
| 7 | 100% USA/ China Origin |
Bently Nevada Vietnam |
Model: 330180-50-00 Bently Nevada 3300 XL Proximitor Sensor |
|
| 8 | 100% USA/ China Origin |
Bently Nevada Vietnam |
Model: 9200-01-05-10-00 Bently Nevada Two-Wire Velocity Seismoprobe Transducer |
