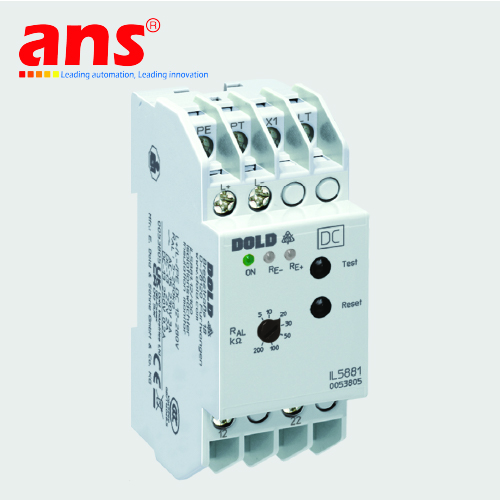

Relay modules IL5881.12 DC12-280V UH AC220-240V Dold Vietnam
Price: Contact
Brand: Dold Vietnam
Category: Relay
Supplier: ansvietnam
Origin: Germany
Gọi lại cho tôi
0911472255Relay modules IL5881.12 DC12-280V UH AC220-240V Dold Vietnam
Product description
The insulation monitor IL 5881 of the series VARIMETER IMD monitors the insulation resistance of non-earthed DC systems (IT-systems) with nominal voltage up to DC 12 ... 280 V. The supply voltage (auxiliary voltage) is taken from the monitored system. The device has LEDs to indicate the operating status. The response value can be set in a user-friendly way on the front of the device via a potentiometer.
Technical specifications
- Width: 35 mm
- Response value: 5 - 500 kΩ
- IMD type: DC
- Nominal voltage IT system: DC 12 - 280, DC 24 - 500 V
- Auxiliary voltage: DC
- Earth fault indicator: Yes
- Response value type: Adjustable
- Enclosure design: Distribution board
- Type: IL 5881
