Product description

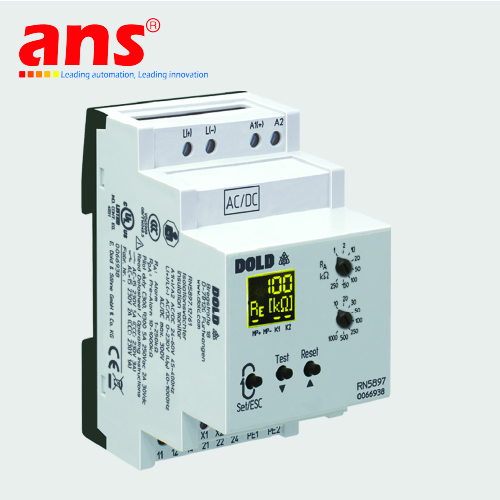

The insulation monitor RN 5897 of the VARIMETER IMD family is a solution for optimal insulation monitoring of modern IT systems. The device can be used in the most flexible way for AC, DC and AC/DC systems even with large leakage capacity to earth (PE). The adjustment of the setting values is simple and user friendly done on 2 rotary switches on the front of the device. Via display and LEDs the measured value, device parameters and device status are indicated easy to read. With a sealable transparent cover the device is protectet against manipulation.
Technical specifications
- Width: 52,5 mm
- Classification: For mobile power generators
- Response value: 1 - 100 kΩ
- IMD type: AC, DC, AC/DC
- Nominal voltage IT system: AC 0 - 230, DC 0 - 230 V
- Auxiliary voltage: DC, AC/DC
- Earth fault indicator: Yes
- Approvals: UL
- Response value type: Adjustable
- Enclosure design: Distribution board
- Type: RN 5897
