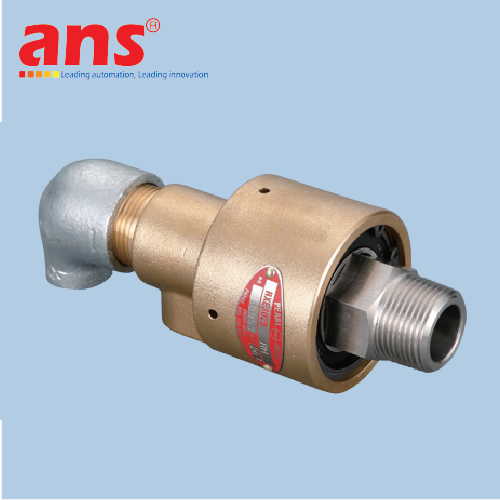

Rotary Joint RXE 1640 RH Showa Giken Vienam
Price: Contact
Brand: Showa Giken
Category: rotary joint
Supplier: anhnghison
Origin: Japan
Gọi lại cho tôi
0911472255Rotary Joint RXE 1640 RH Showa Giken Vienam
- A floating seal ring provides good follow-up capability to the rotor seal face, resulting in stable seal performance.
- Due to low torque, a measure for preventing casing rotation is not required in many cases. (except for RXK)
- ※Products with stainless steel specifications are available for RXE and RXH. Metal parts of products with stainless steel specifications are all made from stainless steel.
- ※We are also able to produce products available for dry air.
RXE Line
- Fluid Water / Oil
- Max. Pressure 8A to 25A 2.25MPa (326 psi) - 32A to 40A 1.67MPa (242 psi) - 50A to 80A 1.18MPa (171 psi)
- Max. Temperature 100 degrees C - (212 degrees F)
- Max. Rotation Speed 8A to 25A 3500min-1 - 32A to 40A 2000min-1 - 50A to 80A 750min-1
