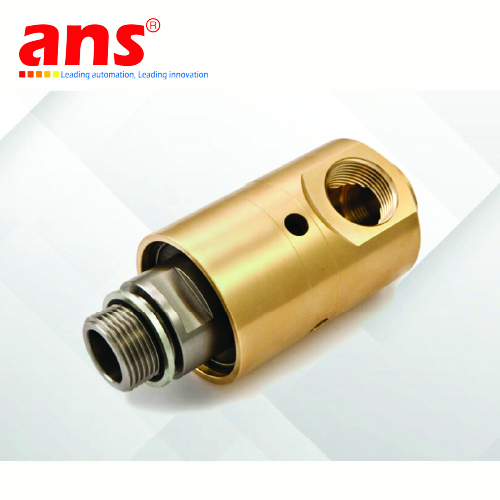

0911472255ROTARY UNION S32-1300-02L Rotoflux Vietnam
These rotary unions are available with two different balanced and microlapped sealing assemblies:
- N Seal (Standard Sealing) with carbon graphite to carbide seals for application with filtered water.
- D Seal (Heavy duty sealing) with carbide to carbide seals for poor filtrated water or abrasive fluids.
| Ordering code | Giunti a un passaggio – Single passage unions Einweg Drehdurchführungen – Juntas a vía simple |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N seal | D seals | A | B | C | ø D | E | ø F1 | ø F2 | ø G | H | I | L | Kg |
S08-1300-01R |
S08-1301-01R |
G 1/4″ RH | G 1/4″ | - | 7 | 88 | 43 | - | 20 | 17 | 11 | 67 | 0,6 |
S08-1300-02L |
S08-1301-02L |
G 1/4″ LH | |||||||||||
S10-1300-01R |
S10-1301-01R |
G 3/8″ RH | G 3/8″ | G 1/4″ | 9 | 106 | 43 | - | 25 | 17 | 13 | 73 | 0,7 |
S10-1300-02L |
S10-1301-02L |
G 3/8″ LH | |||||||||||
S15-1300-01R |
S15-1301-01R |
G 1/2″ RH | G 1/2″ | G 3/8″ | 13 | 120 | 54 | - | 30 | 24 | 13 | 82 | 1,3 |
S15-1300-02L |
S15-1301-02L |
G 1/2″ LH | |||||||||||
S20-1300-01R |
S20-1301-01R |
G 3/4″ RH | G 3/4″ | G 1/2″ | 18 | 139 | 64 | - | 37 | 30 | 16 | 94 | 1,9 |
S20-1300-02L |
S20-1301-02L |
G 3/4″ LH | |||||||||||
S25-1300-01R |
S25-1301-01R |
G 1″ RH | G 1″ | G 3/4″ | 23 | 162 | 69 | - | 45 | 36 | 20 | 105 | 2,5 |
S25-1300-02L |
S25-1301-02L |
G 1″ LH | |||||||||||
S32-1300-01R |
S32-1301-01R |
G 1 1/4″ RH | G 1 1/4″ | G 1″ | 31 | 181 | 85 | 94 | 55 | 46 | 22 | 119 | 3,9 |
S32-1300-02L |
S32-1301-02L |
G 1 1/4″ LH | |||||||||||
S40-1300-01R |
S40-1301-01R |
G 1 1/2″ RH | G 1 1/2″ | G 1 1/4″ | 36 | 208 | 93 | 109 | 60 | 50 | 24 | 132 | 5,1 |
S40-1300-02L |
S40-1301-02L |
G 1 1/2″ LH | |||||||||||
S50-1300-01R |
S50-1301-01R |
G 2″ RH | G 2″ | G 1 1/4″ | 48 | 223 | 112 | 119 | 70 | 60 | 25 | 139 | 6,8 |
