SERIES PKAK - PKDK Bilz Vietnam
Can be bolted to the machine bed (PKAK) / bolt-through (PKDK) with calotte and used to compensate
for angle differences, especially for machines with high geometric requirements.
General PRODUCT DESCRIPTION

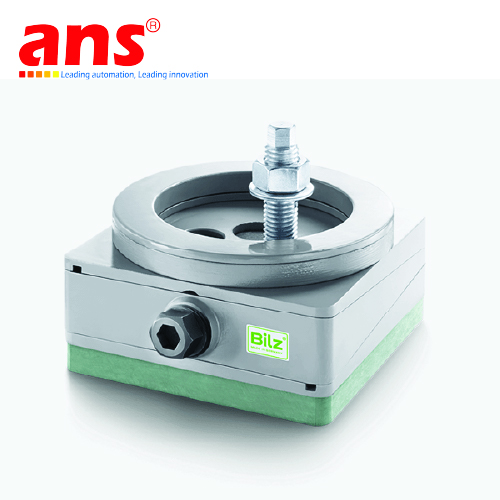

- Bilz precision leveling wedges PKAK (bolt-on) / PKDK (bolt-through) with spherical cap to compensate for angular differences between machines and foundations, e.g. in the case of unprocessed machine supports or uneven floors.
- For machines with a long bed and high geometric requirements.
- PKAK: The bolt-on leveling wedges remain in position even when the machine is lifted, significantly easing the installation of the machine
Colour: RAL 7037, dusty grey.
Fixing bolts: Tables for the selection of available bolts can be found on p. 33.
PKDK: The delivery includes a suitable isolating washer for isolating the bolt head.
TECHNICAL DATA
| Type PKAK | Item no. | max. | L | B | H centre | ØD | d | e | Internal | Adjustment |
| BO | load | mm | mm | position | mm | mm | mm | thread | range | |
| mounting | N/Stk. | mm | mm | |||||||
| PKAK 1-0 | 05-0003 | 25.000 | 115 | 115 | 70 | 110 | 50 | 24 | M16 | -1 |
| PKAK 2-0 | 05-0008 | 43.000 | 150 | 150 | 77 | 150 | 5800 | 23 | M18 | -1 |
| PKAK 3-0 | 05-0011 | 77.000 | 200 | 200 | 79 | 150 | 76 | 27 | M20 | -0,666666667 |
| PKAK 4-0 | 05-0015 | 97.000 | 200 | 250 | 250 103 | 150 | 95 | 27 | M20 | -1,428571429 |
