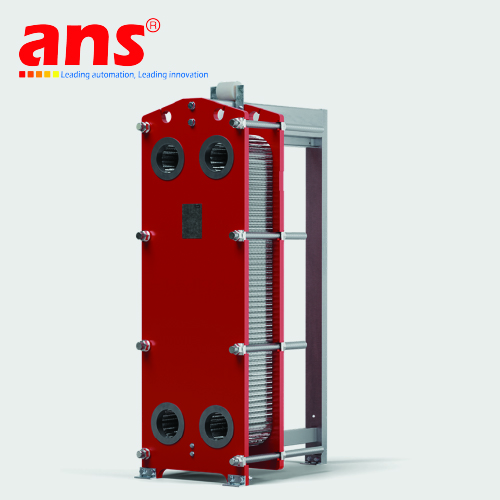

Traditional plate heat exchangers S31A-IG10 Danfoss Vietnam







Features and benefits

Experience the benefit of an individually customized solution that perfectly matches your requirements and lowers your energy consumption.

High performance for a low pressure drop eliminates unnecessary burdens on your system and optimizes overall system performance.

The design results in a compact solution with a small footprint, simple installation, and easy access for maintenance.

Applications

  • HVAC industry - e.g. district cooling solutions using seawater and groundwater as cooling source - e.g. district heating solutions using, for example, solar and geothermal energy as heating source
  • Marine/offshore industry - e.g. central and lubrication oil cooling
  • Dairy/food/beverage industry - e.g. pasteurization, heat recoveries, and duties that require gentle treatment
  • Sugar industry
  • Biogas industry
  • Pulp and paper industry
  • Heavy industry
  • Mining industry
  • Petrochemical industry
  • Chemical industry - e.g. waste heat recovery from condenser water

Technical specifications

  • Connections from DN25 to DN600
  • (Frames designed according to FEA and PED 2014/68/EU (EN13445) and ASME sec VIII, Div. 1 construction standards)
  • Plate materials: AISI 304/316, titanium, SMO, Hastelloy. Other materials available upon request
  • Gasket materials: EPDM-HT, NBR-HT, Viton. Other materials available upon request
  • Plate heights up to 5.5 m (18 ft)
  • Flow rates up to 7,200 m3/h (31,700 gpm)
  • Working pressure up to 25 bar (363 psi)
