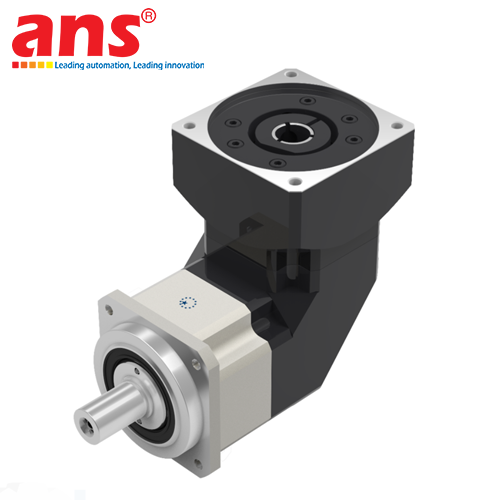

The APEX DYNAMICS ABR060-014-S2-P2 is a premier precision right-angle planetary gearbox belonging to the acclaimed ABR Series engineered by APEX DYNAMICS, INC. (Taiwan) – a global benchmark in precision servo gear technology. This unit is configured with a dedicated custom motor adapter plate for direct, plug-and-play mounting onto Delta ECMA Series AC Servo Motors model ECMA-C10604 (400W rated power, 60 mm frame size).

The ABR Series merges the high efficiency of precision-ground Spiral Bevel Gears with the exceptional load-carrying capability of Helical Planetary Gearing. This right-angle 90-degree configuration is specifically engineered to optimize space utilization in compact machine designs without sacrificing torque transmission performance. All gears undergo carbonizing heat treatment and precision grinding according to DIN 6 accuracy standards, delivering whisper-quiet operation, minimal thermal generation, and high torsional rigidity. Featuring a certified P2 backlash class (≤ 7 – 9 arcmin), robust IP65 ingress protection, and lifetime synthetic grease lubrication, it serves as the ultimate motion drive solution for robotics, CNC machinery, and high-speed automated packaging lines.

• Manufacturer: APEX DYNAMICS, INC.
• Brand Origin: Taiwan
• Full Model Designation: ABR 060-014-S2-P2 / DELTA ECMA-C10604
• Gearbox Identification Code (Part No.): ABR0601-P0401200402
• Serial Number: S/N. 0604178196
• Product Classification: Precision Right-Angle Helical Planetary Gearbox (ABR Series)
• Dedicated Mating Servo Motor: Delta AC Servo Motor Model ECMA-C10604 (400W / 0.4 kW, 60 mm flange)
• Frame Size: 60 mm flange footprint
• Stage Configuration: 2-Stage reduction
• Nominal Gear Ratio: 1:14 (i = 14)
• Internal Gearing Technology: High-precision Spiral Bevel input stage combined with Helical Planetary gear stage
• Backlash Rating (P2 Class): ≤ 7 – 9 arcmin (Low backlash for precise positioning accuracy)
• Transmission Efficiency: ≥ 94% (2-stage)
• Nominal Output Torque (T2N): Approx. 45 Nm – 55 Nm
• Maximum Acceleration / Emergency Stop Torque (T2NOT): Up to 2.5 – 3 times nominal torque
• Rated Input Speed (n1N): 3,000 rpm
• Maximum Input Speed (n1B): Up to 6,000 rpm
• Maximum Radial Load Capacity (F2rB): Up to 1,530 N
• Maximum Axial Load Capacity (F2aB): Up to 1,020 N
• Output Shaft Configuration (Type S2): Smooth solid shaft with standard keyway
• Ingress Protection Rating: IP65 (Totally dust-tight and resistant to water jets from any direction)
• Lubrication: Factory-sealed high-grade synthetic lubricant (Maintenance-free lifetime lubrication)
• Housing Construction: One-piece stainless steel and treated aircraft-grade alloy for corrosion resistance
• Drive Transmission Angle: 90-degree right angle (Right-angle input/output)
• Operating Temperature Range: -10°C to 90°C
• Industrial Applications: CNC machine tool feed axes, Cartesian robot pick-and-place mechanisms, precision rotary indexing tables, automated packaging machines, sorting conveyor diverters, and rack-and-pinion actuators
