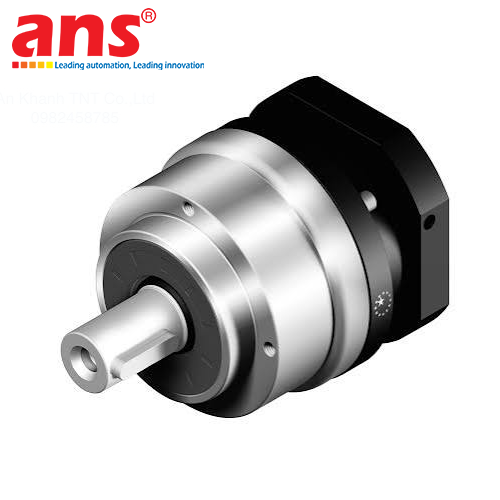

The APEX DYNAMICS AE155-006 is a premier high-precision in-line planetary gearbox belonging to the acclaimed AE Series engineered by APEX DYNAMICS, INC. (Taiwan) – a globally recognized benchmark in servo motion control gear technologies. This unit is built with a dedicated input mounting configuration coded P0403500401, providing seamless, direct, and coaxial mounting onto B&R Industrial Automation 3-phase Synchronous AC Servo Motors model 8LSC56-ee022ffgg-1 (8LS series, size 5, externally fan-cooled).

The AE Series stands out with its case-hardened, precision-ground Helical Planetary Gears featuring proprietary HeliTopo tooth profiling technology, which increases tooth contact ratio by over 33% compared to conventional spur gears. This geometry yields a high nominal output torque of 600 Nm, ultra-low operating noise (≤ 56 dB), minimized friction, and virtually eliminates heat buildup during high-speed continuous duties. Configured with a single-stage reduction ratio of 1:6, low backlash (≤ 8 arcmin), and a transmission efficiency exceeding 97%, it ensures smooth motion dynamics and superior shock-load resistance. Enclosed in a rugged one-piece stainless steel housing with IP65 ingress protection, featuring a TiCN-coated output shaft seal interface and lubricated for life with Nyogel 792D synthetic grease, it delivers completely maintenance-free operation across demanding industrial automation environments.

• Manufacturer: APEX DYNAMICS, INC.
• Brand Origin: Taiwan
• Full Model Designation: AE155-006 / B&R 8LSC56-ee022ffgg-1
• Technical Identification / Adapter Code: P0403500401
• Serial Number: S/N. 1506150991
• Product Classification: Precision In-line Helical Planetary Gearbox (AE Series)
• Dedicated Mating Servo Motor: B&R Industrial Automation 8LS Series 3-phase Synchronous AC Servo Motor model 8LSC56-ee022ffgg-1 (Size 5, external fan cooling)
• Frame Size: 155 mm (Round output flange mounting footprint)
• Stage Configuration: 1-Stage reduction (Single Stage)
• Nominal Gear Ratio: 1:6 (i = 6)
• Gearing Technology: Precision-ground case-hardened Helical Planetary Gears with HeliTopo tooth profiling
• Backlash Rating: ≤ 8 arcmin (Low backlash for precision positioning)
• Transmission Efficiency: ≥ 97% (1-stage configuration)
• Nominal Output Torque (T2N): 600 Nm
• Acceleration Output Torque (T2B): 1,080 Nm (1.8 x T2N)
• Emergency Stop Output Torque (T2NOT): 1,800 Nm (3 x T2N)
• Rated Input Speed (n1N): 3,000 rpm
• Maximum Input Speed (n1B): Up to 6,000 rpm
• Maximum Radial Load Capacity (F2rB): Up to 8,460 N
• Maximum Axial Load Capacity (F2aB): Up to 4,700 N
• Output Shaft Configuration: Smooth solid shaft with standard keyway
• Torsional Rigidity: 50 Nm/arcmin
• Noise Level: ≤ 56 dB(A)
• Ingress Protection Rating: IP65 (Total dust-tight protection and resistance against water jets)
• Sealing Technology: Proprietary lip seal against TiCN-coated shaft surface (3,700 Hv surface hardness)
• Lubrication: Factory-sealed synthetic Nyogel 792D grease (Maintenance-free lifetime lubrication)
• Direction of Rotation: Output shaft rotates in the same direction as the input motor shaft
• Housing Construction: One-piece stainless steel body with CNC-machined black aluminum motor adapter flange
• Operating Ambient Temperature: -10°C to 90°C
• Industrial Applications: High-power CNC machine tool feed axes, industrial web printing presses, metal forming machinery, plastic extrusion lines, heavy-duty rotary tables, and multi-axis industrial robotics
