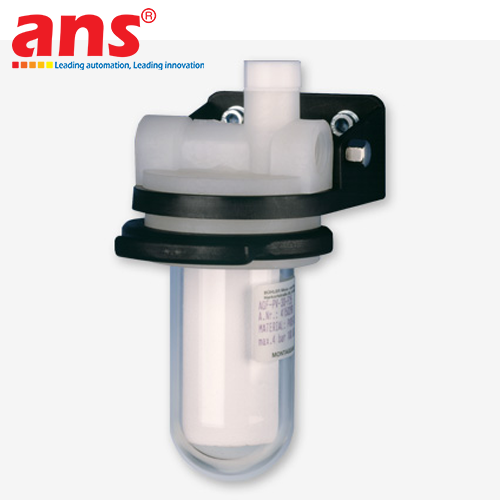

The Bühler Technologies AGF-PV-30 Sample Gas Filter is a premium particulate filtration solution engineered for industrial gas analysis applications and sample gas conditioning lines. Manufactured by Bühler Technologies GmbH (Germany)—a recognized global leader in gas analysis components—the AGF-PV-30 efficiently removes fine dust, fly ash, and solid particulates before the sample gas reaches sensitive gas analyzers or sensors.

The key feature of the AGF-PV-30 lies in its high-grade PVDF (Polyvinylidene Fluoride) body construction, providing exceptional resistance against harsh corrosive gas constituents such as SO2, SO3, NOx, HCl, HF, and CO2. The transparent borosilicate glass or PVDF filter bowl enables operators to inspect element contamination visually without opening the filter assembly.

Designed with an optimized internal flow geometry, the AGF-PV-30 minimizes dead volume, thereby drastically reducing response lag in continuous gas measurement systems. The ergonomic quick-release ring design permits fast, tool-free filter element replacement, ensuring hassle-free routine maintenance in demanding plant environments.

• Manufacturer: Bühler Technologies GmbH
• Product Series / Model: AGF-PV-30 (Advanced Sample Gas Filter)
• Country of Origin: Germany
• Function: Particulate & dust removal for gas analysis protection
• Filter Head Material: PVDF (Polyvinylidene Fluoride)
• Filter Bowl Material: Heat-resistant Borosilicate Glass / PVDF
• Gasket / Seal Material: Viton (FKM) / FFKM (optional chemical-resistant variants)
• Filter Element Size: Standard 30 mm length elements (e.g., F-2, F-25, S-2)
• Filter Retention / Fineness: 2 µm to 25 µm (depending on selected filter element)
• Max Operating Pressure: 2 bar to 4 bar (depending on bowl material selection)
• Max Operating Temperature: Up to +100°C (Glass bowl) / +80°C (PVDF bowl)
• Inlet / Outlet Port Connections: NPT 1/4" or G 1/4" female threads
• Condensate Drain Port: G 1/4" or NPT 1/4" (bottom connection)
• Dead Volume: Approx. 45 ml to 50 ml (optimized for rapid system response time)
• Net Weight: Approx. 0.4 kg - 0.6 kg
• System Compatibility: Fully integrable with CEMS gas lines, sample gas coolers, and industrial analysis cabinets
