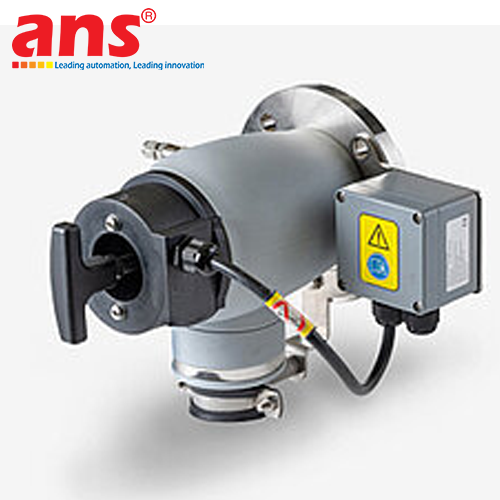

The SPM Series Sample Gas Overpressure Safety Valve & Pressure Monitor is engineered and manufactured by Bühler Technologies GmbH – a leading German manufacturer globally recognized for advanced industrial gas analysis and sample conditioning systems. The SPM unit serves as a vital safety watchdog, automatically venting excess pressure and providing alarm signals during overpressure conditions within sample lines of Continuous Emission Monitoring Systems (CEMS) and industrial process gas analyzers.

During process gas analysis operations, unexpected line blockages (caused by dust accumulation, frozen condensate, or inadvertent valve closure) can induce sudden, dangerous pressure spikes inside sample tubing. Without immediate pressure relief protection, excessive pressure can permanently rupture sample pump diaphragms, cause fitting leaks, or destroy high-value analytical sensors (such as NDIR, UV, and Paramagnetic cells). The Bühler SPM series effectively solves this operational hazard through a fast-responding mechanical relief mechanism coupled with a reliable pressure monitoring sensor.

Key technical highlights of the Bühler Technologies SPM:
- Precise Automatic Pressure Relief: Features an adjustable spring-loaded relief valve. When sample gas pressure exceeds the pre-configured safety threshold, the valve immediately opens to divert excess gas to a dedicated vent line, automatically resetting once normal line pressure is restored.
- Premium Corrosion-Resistant Wetted Materials: All components coming into direct contact with sample gas are precision-machined from chemically inert materials including 316L Stainless Steel (1.4571), PTFE, PVDF, and FKM/FFKM seals, ensuring complete resistance against aggressive acid gases (SO2, NOx, HCl, HF).
- Integrated Alarm Contact Signaling: Most SPM variants feature an integrated switching contact (SPDT relay), providing immediate electrical fault signals to central PLC controllers to stop sample pumps or trip operator alarms.
- Compact Modular Footprint: Lightweight and compact design allows seamless installation directly downstream of sample pumps or onto CEMS analyzer cabinet backplates without restricting overall gas flow.

With 24/7 continuous operational reliability and German manufacturing quality, the Bühler SPM is an indispensable safety device for CEMS monitoring stations in thermal power plants, cement factories, chemical complexes, refineries, metallurgical facilities, and environmental testing laboratories.

• Manufacturer: Bühler Technologies GmbH
• Product Family / Model: SPM Series
• Device Type: Overpressure Safety Valve & Sample Gas Pressure Monitor
• Country of Origin: Germany
• Relief Pressure Range: 0.1 bar to 1.5 bar (Adjustable to system requirements)
• Max. System Pressure Rating: Up to 6 bar
• Wetted Materials: 316L Stainless Steel (1.4571), PTFE, PVDF, Viton (FKM) / Kalrez (FFKM)
• Switching Alarm Contact: Electric Relay Switch (NO / NC - SPDT)
• Contact Rating: Max. 250V AC/DC, 0.5A, 10W/VA
• Sample Gas Inlet Temperature: -20°C to +120°C
• Ambient Operating Temperature: -20°C to +80°C
• Gas Tightness: Hermetically sealed against ambient gas leaks
• Process Connection Ports: G1/4" or NPT 1/4" female threads (PVDF/SS compression fittings)
• Enclosure Rating: IP65 (Dust and water spray resistant)
• Net Weight: Compact from 0.4 kg to 0.9 kg
