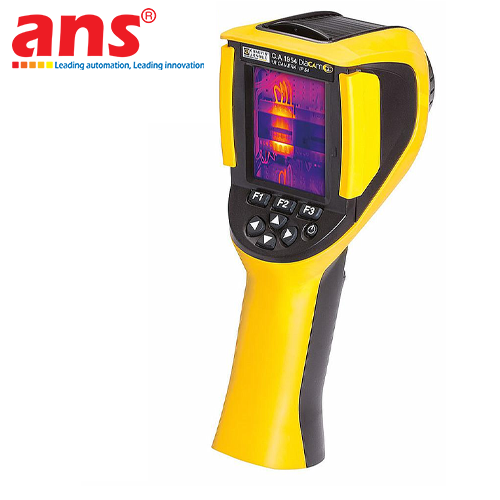

The Chauvin Arnoux C.A 1954 DiaCAM2 Thermal Imaging Camera (Order Part Number: P01651904) is an advanced non-destructive thermal diagnostic instrument, 100% designed, engineered, and manufactured in the European Union by the Chauvin Arnoux Group – an internationally acclaimed benchmark in electrical test and measurement technology with more than 130 years of metrological expertise. Designed to provide unmatched operational agility, measurement integrity, and field ergonomics, the CA 1954 serves as an indispensable predictive maintenance and building auditing standard for electrical engineers, plant technicians, energy auditors, and industrial facility managers.

At the core of the CA 1954 is an uncooled UFPA microbolometer detector delivering a 160 × 120 pixel thermal resolution (19,200 active measurement points) across the 8 to 14 µm spectral bandwidth, featuring a remarkable thermal sensitivity (NETD) of ≤ 0.08 °C (80 mK) at 30 °C. A core engineering highlight of the DiaCAM2 platform is its wide 38° × 28° optical field of view with full Focus-Free fixed focal optics. Operators can aim at targets from as close as 30 cm up to infinity, capturing sharp, focused thermograms instantly without requiring manual lens adjustments. The camera operates across a temperature measurement span from -20 °C to +250 °C with an accuracy of ±2 °C or ±2% of reading. Thermal profiles are rendered on a high-contrast 2.8-inch LCD display with automatic ambient light dimming, supported by an integrated digital camera featuring automatic parallax compensation for visual-thermal image correlation.

A distinct technological asset of the Chauvin Arnoux CA 1954 is its integrated Bluetooth wireless connectivity. This feature enables dual-channel communication: recording voice notes directly into captured thermal files via the supplied Bluetooth headset, while simultaneously pairing with compatible Chauvin Arnoux instrumentation (such as F407 and F607 clamp meters or digital multimeters). This allows instantaneous logging of secondary electrical parameters (current, active power, voltage) or environmental variables directly onto the thermogram. Mechanically robust, the camera incorporates a built-in sliding protective lens shutter, 2-meter drop test resistance, and IP54 dust and splash protection. Supplied with a rechargeable NiMH battery pack delivering a record 9 hours of continuous operation and the CAmReport professional PC software suite for automated Word and PDF reporting, the CA 1954 is the definitive thermal imager for demanding industrial infrastructures.

• Manufacturer: Chauvin Arnoux
• Origin: 100% EU (France)
• Product Series: DiaCAM2 Industrial Thermal Imaging Cameras
• Model: CA 1954 DiaCAM2
• Order Part Number: P01651904
• Detector Type: Uncooled UFPA Microbolometer (8 to 14 µm)
• Infrared Resolution: 160 × 120 pixels (19,200 thermal pixels)
• Thermal Sensitivity (NETD): 80 mK @ 30 °C (≤ 0.08 °C @ 30 °C)
• Field of View (FOV): 38° (Horizontal) × 28° (Vertical)
• Spatial Resolution (IFOV): 4.1 mrad
• Focusing Mechanism: Focus-free system (fixed focus from 30 cm to infinity)
• Temperature Measurement Range: -20 °C to +250 °C (-4 °F to +482 °F)
• Measurement Accuracy: ±2 °C or ±2% of reading
• Image Refresh Frequency: 9 Hz
• Display: 2.8-inch color LCD (320 × 240 pixels) with ambient light sensor for automatic brightness adjustment
• Image Visualization Modes: Thermal image, Real visual image with automatic parallax compensation, Image fusion via PC software
• Onboard Measurement Tools: 1 manual cursor, automatic hot and cold spot detection, Min/Max/Avg calculation, thermal profile line, isotherms
• Parameter Adjustments: Emissivity (0.05 to 1.0), reflected ambient temperature, distance, relative humidity
• Wireless Connectivity & Audio: Integrated Bluetooth (connects with Bluetooth headset for voice annotations and Chauvin Arnoux F407/F607 clamp meters)
• External Digital Interface: USB port for data transfer and recharging
• Data Storage Media: Removable 2GB MicroSD card (stores up to 4,000 images), expandable up to 32GB
• File Format: Standard .bmp format (with fully integrated radiometric data)
• Battery System: 4 × AA NiMH rechargeable batteries (with external smart charger) or standard alkaline batteries
• Battery Operating Time: Up to 9 hours continuous operation (with Bluetooth deactivated and 50% screen brightness)
• Optics Protection: Built-in sliding protective lens shutter
• Environmental Ingress Rating: IP54 according to EN 60529
• Mechanical Drop Resistance: 2-meter drop test verified on all sides
• Dimensions (L × W × H): 225 × 125 × 83 mm (8.9 × 4.9 × 3.3 inches)
• Weight: Approx. 700 g (1.54 lbs) including batteries
• Reporting Software: CAmReport PC software included (supports multi-point cursors, profile extraction, and one-click PDF/Word report generation)
• Standard Delivery Package: CA 1954 camera with sliding shutter, heavy-duty carrying case, 4 NiMH batteries with external mains charger, Bluetooth headset with microphone, 2GB MicroSD card with adapter, USB cable, factory test certificate, and operating manual
• Applicable Industries: Electrical panel and switchgear inspection, rotating machinery and mechanical bearing maintenance, building insulation and thermal bridge auditing, solar photovoltaic (PV) module inspection, commercial HVAC/R system commissioning, industrial substation testing, and metallurgical manufacturing plants.
