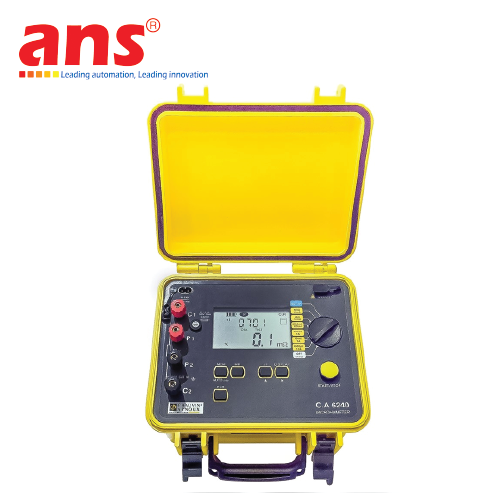

Micro-ohmmeter P01143200 CA 6240 CHAUVIN ARNOUX Vietnam
Price: Contact
Brand: CHAUVIN ARNOUX
Category: Meter
Supplier: ansvietnam
Origin: EU
0911472255Micro-ohmmeter P01143200 CA 6240 CHAUVIN ARNOUX Vietnam
Description
Rugged and leakproof, the C.A 6240 is a top-of-the-range product designed for on-site, workshop or laboratory use.
It is ergonomic, lightweight and compact.Its wide LCD screen comprising 2 digital displays is particularly easy to read. It includes indications intended to facilitate implementation and interpretation of the measurements. The automatic measurement mode allows measurement to be triggered without pressing a button.
An automatic recording mode is also available.
C.A 6240 technical specifications:
- - 4-wire measurement method
- - measurement ranges from 5 µΩ to 400 Ω
- - Test current up to 10 A
- - Max. resolution 1 µΩ
- - Automatic power off
- - Power supply: NiMH rechargeable battery
- - Storage: 100 measurements
- - Communication via USB optical link
- - Data export software
- - IP53 protection
- - Electrical safety: IEC 61010-1 CAT III 50 V
- - Dimensions: 273 x 247 x 280 mm
- - Weight: 5 kg
To make them easier to use and to permit new applications, new retractable 10 A KELVIN test probes are now available as accessories.
"Pistol" test probes
- - Handle dimensions 108 x 40 mm, test probe 154 x 30 mm, thickness 28 mm
- - Test probe diameter 2 mm
- - Test-probe spacing 3.5 mm
- - Cable length 3.15 metres
- - Spade lugs for Ø 4 to 6 mm
- - Safety connectors Ø 4 mm
- - Weight approx. 2 x 420 g
Kelvin test probe with rotation
- - Dimensions (L x W x H) 207 x 34 x 30 mm
- - Test-probe diameter 3 mm
- - Test-probe spacing 8 mm
- - Test-probe extension/retraction 10 mm
- - Cable length 3.15 metres
- - Spade lugs for Ø 4 to 6 mm
- - Safety connectors Ø 4 mm
- - Weight approx. 2 x 400 g
- - Resistance 2 x 50 mΩ max.
