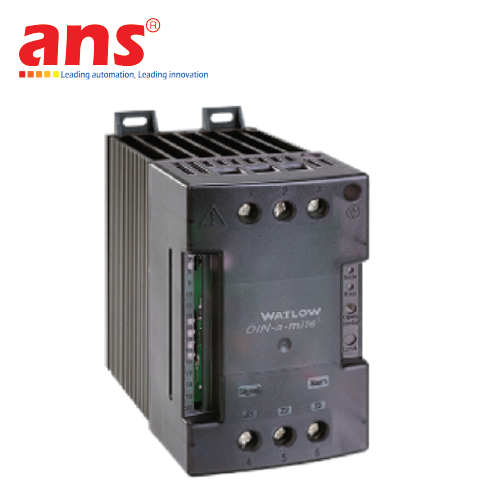

Controller DC21-60F0-0000 Watlow Vietnam
Price: Contact
Brand: Watlow Vietnam
Category: Controller- bộ điều khiển
Supplier: ansvietnam
Origin: USA
Gọi lại cho tôi
0911472255Controller DC21-60F0-0000 Watlow Vietnam
| Package Style | DC = Din-a-mite Style C |
| Phase | 2 = 3-phase, 2 controlled legs |
| Cooling & Current Rating per leg | 1 = Fan cooled 120VÅ(ac) standard Din-rail or panel heatsink |
| Line & Load Voltage | 60 = 277 to 600VA (ac) |
| Input Signal / Control Output | F0 = 4 to 20mA DC proportional input / three-cycle variable time base output |
| Alarm | 0 = No Alarm |
| User Documentation | 0 = Wiring Safety Guide |
| Custom | 00 = Standard |
| Model Number | DC21-60F0-0000 |
| 40 | Watlow Vietnam | Watlow Code Number: G2A153-L12 Firod heater |
| 41 | Watlow Vietnam | Watlow Code Number: C1J6-L12 |
| 42 | Watlow Vietnam | Watlow Code Number : 2136-4541 Firerod heater |
| 43 | Watlow Vietnam | Code Number: 2136-4541 Description 1:.25" DIAMETER FIREROD |
| 44 | Watlow Vietnam | Code: 023055502 1 1/4X3 3/32-240V-46W Heater Code: 023030500 2 11/16X2 3/4-240V-23W Heater Code: A003753 Including bellow codes: 077077507 020044500 029075501 027044501 Heater |
| 45 | Watlow Vietnam | Watlow Code Number : F4PH-FAAB-21RG F4P LIMIT PROCESS CONTROL |
| 46 | Watlow Vietnam | Watlow Code Number : MB01E1AB-3005 MFG MI BAND HEATER |
| 47 | Watlow Vietnam | Watlow Code Number : DT2483002B20AAA CONTROLLER PROGRAMMABLE CONTROLLER |
| 48 | Watlow Vietnam | P/N: 2101-7627 TUBE & WIRE THERMOCOUPLE |
| 49 | Watlow Vietnam | Watlow Code Number : 2223-3704 Firerod Heater |
| 50 | Watlow Vietnam | Watlow Code Number: DC21-60F0-0000 POWER CONTROL |
| 51 | Watlow Vietnam | Watlow Code Number: DC2T-60C0-0000 POWER CONTROL |
| 52 | Watlow Vietnam | Watlow Code Number: DC20-60C0-0000 POWER CONTROL |
| 53 | Watlow Vietnam | Watlow Code Number: 2202-4846 Customer Part no.: PM6C3CJ-6AAAPWP |
| 54 | Watlow Vietnam | Watlow Code Number: C1A-9601 FR 24/25 MFG/ Firerod Cartridge Heater |
| 55 | Watlow Vietnam | Watlow Code Number: C1E14-L12 FR 120/25 MFG/ Firerod Cartridge Heater |
| 56 | Watlow Vietnam | Heater Bundle for 10KW Heater (WHP-DHN-M-E- 0016 - Test Separator) Description: Duty: 10KW, 440Vac, 3PH Flange Size: 6 NPS, CLASS 300, RF BLIND, SA-350- LF2 CL 1 PER B16.5 1.44 IN THICK INCLUDING RAISED FACE Heater Element: (15) TOTAL WITH (3) SPARE 0.430 IN DIAMETER HW 0.065 WALL (Material: ALLOY 800) (Watt Density: 10WPSI) Limit Sensor: (2) TYPE: K DUAL, UNGROUNDED, WITH REMOTE ENCLOSURE Electrical Classification: CLASSIFIED ZONE 2, GROUP IIA Electrical Enclosure: FLAMEPROOF / IP66-IEC Ex 'd' Electrical Connections: (1) 3 PH CIRCUITS 6 AWG MAXIMUM WIRE Design Data: - DESIGNED, MANUFACTURED, AND STAMPED IN ACCORDANCE WITH ASME SECTION VIII, DIVISION 1. 2023 EDITION |
| Watlow Vietnam | Heater Bundle for 10KW Heater (WHP-DHN-M-E- 0006 – Flare Scrubber) Description: Duty: 10KW, 440Vac, 3PH Flange Size: 6 NPS, CLASS 300, RF BLIND, SA-350- LF2 CL 1 PER B16.5 1 IN THICK INCLUDING RAISED FACE Heater Element: (15) TOTAL WITH (3) SPARE 0.430 IN DIAMETER HW 0.065 WALL (Material: ALLOY 800) (Watt Density: 10WPSI) Limit Sensor: (2) TYPE: K DUAL, UNGROUNDED, WITH REMOTE ENCLOSURE Electrical Classification: CLASSIFIED ZONE 2, GROUP IIA Electrical Enclosure: FLAMEPROOF / IP66-IEC Ex 'd' Electrical Connections: (1) 3 PH CIRCUITS 6 AWG MAXIMUM WIRE Design Data: - DESIGNED, MANUFACTURED, AND STAMPED IN ACCORDANCE WITH ASME SECTION VIII, DIVISION 1. 2023 EDITION |
|
| 57 | Watlow Vietnam | Heater Bundle for 10KW Heater (WHP-DHN-M-E- 0001 - Production Separator) Description: Duty: 10KW, 440Vac, 3PH Flange Size: 6 NPS, CLASS 300, RF BLIND, SA-350- LF2 CL 1 PER B16.5 1.44 IN THICK INCLUDING RAISED FACE Heater Element: (15) TOTAL WITH (3) SPARE 0.430 IN DIAMETER HW 0.065 WALL (Material: ALLOY 800) (Watt Density: 10WPSI) Limit Sensor: (2) TYPE: K DUAL, UNGROUNDED, WITH REMOTE ENCLOSURE Electrical Classification: CLASSIFIED ZONE 2, GROUP IIA Electrical Enclosure: FLAMEPROOF / IP66-IEC Ex 'd' Electrical Connections: (1) 3 PH CIRCUITS 6 AWG MAXIMUM WIRE Design Data: - DESIGNED, MANUFACTURED, AND STAMPED IN ACCORDANCE WITH ASME SECTION VIII, DIVISION 1. 2023 EDITION |
| 58 | Watlow Vietnam | Watlow Code Number: AFEB0TF130E4050 MINERAL INSULATED SENSOR Configuration Details : MI Sensor Style AF Style Sheath Outside Diameter [in] E - .063 Inch Sheath Outside Diameter [in] E - .063 INCH Junction Type E - Single Exposed Junction Type E - Single Exposed Sheath Material F - 316 and 316L SS (Dual Certified) Calibraton Type Type K Limits of Error Special Limits Mounting Options None Mounting Options None Bend Option Straight Length Sheath Length [in] 13.000 Lead Wire Construction B - Fiberglass, Stranded Lead Wire Length [in] 60 Lead Wire Termination T - Standard Split Leads Cold End Seal/Potting 300°F Epoxy Transition Style AF - 1/4" with Spring (700), Crimped Gauge Size 24 Gauge Insulated Singles Length [in] 1.500 Calibrate/Cert Type No Certification Required MI Cable Material Cert (Y/N) No Lot Control NA - None |
| 59 | Watlow Vietnam | Watlow Code Number: 2376-7627 PM CONFIGURED/ PM Controller Configuration Details : Package Size 8 = 1/8th DIN Vertical Plus Primary Function C = PID Controller with Universal Input Power Supply 2 = 100 to 240VAC plus 2 digital I-O points Output 1 and 2 EC - Out1 = Mech Relay 5A, SPDT : Out2 = Switched DC Communications 1 = EIA 485 Modbus RTU Auxiliary Control Functions C = 2nd PID Controller with Universal Input Output 3 and 4 EA - Out3 = Mech Relay 5A, SPDT : Out4 = None Model Selection V = PM PLUS enhance firmware (isolated input 1, input 2 is always isolated) Custom Options WP = Logo Face Plate Model Number PM8C2EC-1CEAVWP |
| 60 | Watlow Vietnam | Watlow Code Number : K26-2-509 Thermocouple Wire Unit of Measure : FT MOQ =2000 feet (+/`10%) |
| 61 | Watlow Vietnam | Watlow Code Number : CER-1-01-00004 ULTRAMIC CONFIGURATOR |
| 62 | Watlow Vietnam | Watlow Code Number : MB01E1AB-3005 MFG MI BAND HEATER |
| 63 | Watlow Vietnam | Watlow Code Number : 60XKFXG120F THERMOCOUPLES |
| 64 | Watlow Vietnam | Watlow Code Number: C1E14-L12 FR 120/25 MFG/ Firerod Cartridge Heater |
| 65 | Watlow Vietnam | Watlow Code Number: 4011-6979 PM CONTROLLER |
| 66 | Watlow Vietnam | Watlow Code Number: 2141-7432 PM CONTROLLER |
| 67 | Watlow Vietnam | Watlow Code Number: SGA1J17RW8 Strip Heaters |
| 68 | Watlow Vietnam | Watlow Code Number: F4SH-KAA0-01RG F4S LIMIT PROCESS CONTROL |
| 69 | Watlow Vietnam | Replaced by Watlow Code Number: 2226-1073 THERMOCOUPLES |
| 70 | Watlow Vietnam | Replaced by Watlow Code Number: 2061-2469 HEATER |
| 71 | Watlow Vietnam | Watlow Code Number: 4013-4161 MINERAL INSULATED SENSOR |
| 72 | Watlow Vietnam | Watlow Code Number: 2277-9136 PM CONFIGURED CONTROLLER |
| 73 | Watlow Vietnam | Watlow Code Number: FMHA-CAAA-AAAA FLEX MODULE HIGH DENSITY |
| 74 | Watlow Vietnam | Watlow Code Number: 4046-5318 PM CONFIGURED CONTROLLER |
| 75 | Watlow Vietnam | Watlow code P/N: 2094-6960 (Replaces 20CKFGD130A) TUBE & WIRE THERMOCOUPLE |
| 76 | Watlow Vietnam | Watlow code P/N: MS1J12AS2 MI STRIP HEATER Configuration Details : Part Number MS1J12AS2 = 1-1/2" X 12" 240V 800W |
| 77 | Watlow Vietnam | Watlow code P/N: DC1T-60C0-0000 DC1 POWER CONTROLLER Configuration Details : Phase 1 = 1-phase, 1 controlled leg Cooling & Current Rating per leg T = Natural convection through wall or cabinet heat sink Line & Load Voltage 60 = 277 to 600VA (ac) Input Signal / Control Output C0 = 4.5 to 32VDC contactor / zero-cross output Alarm 0 = No Alarm Model Number DC1T-60C0-0000 |
| 78 | Watlow Vietnam | Watlow code P/N: 2292-3842 PM CONFIGURED CONTROLLER Configuration Details : Package Size 8 = 1/8th DIN Vertical Plus Primary Function C = PID Controller with Universal Input Power Supply 2 = 100 to 240VAC plus 2 digital I-O points Output 1 and 2 EC - Out1 = Mech Relay 5A, SPDT : Out2 = Switched DC Communications A = None Auxiliary Control Functions C = 2nd PID Controller with Universal Input Output 3 and 4 EA - Out3 = Mech Relay 5A, SPDT : Out4 = None Model Selection V = PM PLUS enhance firmware (isolated input 1, input 2 is always isolated) Custom Options WP = Logo Face Plate Model Number PM8C2EC-ACEAVWP |
| 79 | Watlow Vietnam | Temporary no.: JDSG25020 (After receiving your PO, model number change to other number.) Heater |
| 80 | Watlow Vietnam | Watlow code numner: 2311-4555 PM CONFIGURED CONTROLLER Configuration Details Package Size 6 = 1/16th DIN Panel Plus Model Primary Function C = PID Controller with Universal Input Power Supply 3 = 20 to 28VAC or 12 to 40VDC Output 1 and 2 CA - Out1 = Switched dc/open collector : Out2 = None Communications 2 = EIA 232/485 Modbus RTU Auxiliary Control Functions A = None Output 3 and 4 AA - Out3 = None : Out4 = None Model Selection P = PM PLUS standard (isolated input 1, input 2 is always isolated) Custom Options RL = Locked Code Rev 3 Model Number PM6C3CA-2AAAPRL |
| 81 | Watlow Vietnam | Watlow code number: 2288-3780 PM LEGACY CONTROLLER Configuration Details Package Size 6 = 1/16th DIN Panel Legacy Model Primary Function L = Limit Controller Power Supply 3 = 20 to 28VAC or 12 to 40VDC Output 1 and 2 AJ - Out1 = None : Out2 = Mech Relay 5A, SPST-NO Communications A = None Auxiliary Control Functions A = None Output 3 and 4 AA - Out3 = None : Out4 = None Model Selection G = PM "Legacy" Limit Version Custom Options RK = Rev 17 Locked Firmware Model Number PM6L3AJ-AAAAGRK |
| 81 | Watlow Vietnam | Watlow Part#: PWS12 Your Part#: 0100-E-0110 Protective Wells Plug Material:Steel Immersed B Dimension:12 Ref. no gl226380141 |
| 82 | Watlow Vietnam | Watlow Part#: LVE6HW00000999A SERIES LV Temperature Limit Controller Configuration Details Control Variable LV = Limit Control with 8 Amp Relay Output Power Supply E = 230 to 240VAC Package 6 = DIN-rail mount - screw terminals Sensor Type & Scale H = T/C Type J Fahrenheit (-346 to 1900°F) Limit Type W = High Limit Auto Reset Low Temperature Sign -/+ + = Positive Low Range Temperature 0000 High Temperature Sign -/+ + = Positive High Range Temperature 0999 Model Number LVE6HW00000999A |
| 82 | Watlow Vietnam | Watlow Part#: 2297-8032 PM Configured Controller Configuration Details Package Size 8 = 1/8th DIN Vertical Plus Primary Function C = PID Controller with Universal Input Power Supply 2 = 100 to 240VAC plus 2 digital I-O points Output 1 and 2 FJ - Out1 = Universal Process : Out2 = Mech Relay 5A, SPST-NO Communications 2 = EIA 232/485 Modbus RTU Auxiliary Control Functions C = 2nd PID Controller with Universal Input Output 3 and 4 CA - Out3 = Switched dc/open collector : Out4 = None Model Selection P = PM PLUS standard (isolated input 1, input 2 is always isolated) Custom Options WP = Logo Face Plate Model Number PM8C2FJ-2CCAPWP |
| 83 | Watlow Vietnam | Watlow Part#: 2191-9310 PM Configured Controller Configuration Details Package Size 6 = 1/16th DIN Panel Plus Model Primary Function C = PID Controller with Universal Input Power Supply 1 = 100 to 240VAC Output 1 and 2 EA - Out1 = Mech Relay 5A, SPDT : Out2 = None Communications A = None Auxiliary Control Functions A = None Output 3 and 4 AA - Out3 = None : Out4 = None Model Selection P = PM PLUS standard (isolated input 1, input 2 is always isolated) Custom Options WN = No Logo No Name Face Plate Model Number PM6C1EA-AAAAPWN |
| 84 | Pelican/Watlow Vietnam | PartID: P82K20-1-350 Thermo Coupler Wire Type K, Standard Limits, 20 AWG Solid (0.032"), Chromel & Alumel; Natural Ceramic Braid Singles; Parallel; Natural Ceramic Braid Jacket; Nominal Finished Diameter 0.110" x 0.150" MOQ of 2,000 ft 2,000 ft spools +/-10% |
| 85 | Watlow Vietnam | Watlow Part#: 12A THERMOSTAT 202-0-41-2 |
| 86 | Watlow Vietnam | Watlow Code Number : K20-1-321 Thermo Couple Wire Unit of Measure : FT MOQ = 1 roll = 1000 feet = 304.8m (+/`10%) |
| 87 | Watlow Vietnam | MPN: 2-13-102-1 FIREBAR (1 inch) Formed with Bulkheads. |
| 87 | Watlow Vietnam | Watlow Code Number: CER-1-01-00374 Description: ULTRAMIC CONFIGURATOR/ ULTRAMIC®Ceramic heater Configuration Details: Maximum Heater Temperature: 400°C (752°F) Base Heater Selection: 240V 1938W - 50mm x 50mm (1.97in x 1.97in) Watt Density: 77.5 W/cm² (500 W/in²) Lead Type: PTFE with Ceramic Beads Bead Length: 6 mm (0.25 in) Lead Length: 305 mm (12 in) Integrated Temperature Sensor: Type K Thermocouple Minimum Resistance: 23.776 Nominal Resistance: 29.72 Maximum Resistance: 35.664 |
| 88 | Watlow Vietnam | Watlow Code Number: 2146-8844 Model Number: PM6L3AJ-AAAAGWP (Replaces PM6L3AJ-AAAAAAA) LEGACY PM CONTROLLER Configuration Details : Package Size 6 = 1/16th DIN Panel Legacy Model Primary Function L = Limit Controller Power Supply 3 = 20 to 28VAC or 12 to 40VDC Output 1 and 2 AJ - Out1 = None : Out2 = Mech Relay 5A, SPST-NO Communications A = None Auxiliary Control Functions A = None Output 3 and 4 AA - Out3 = None : Out4 = None Model Selection G = PM "Legacy" Limit Version Custom Options WP = Logo Face Plate NOTE: Please recheck all before order |
